Cdi Torque TCQZX54A Torque Wrench Head 1-11/16 in

Product Description

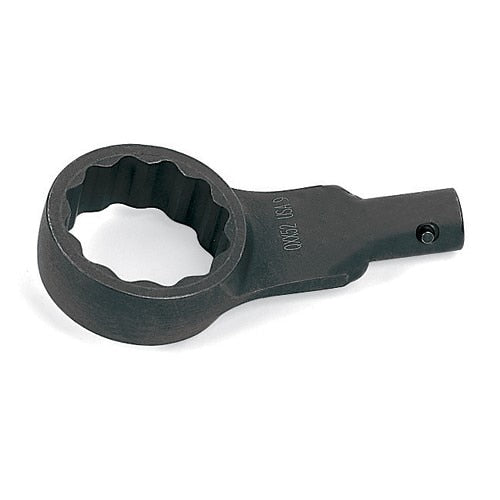

The CDI TORQUE TCQZX54A is a 1-11/16 inch torque wrench head designed for high-load fastening applications where precise torque delivery is required. Built with a 15-degree offset box end and a 12-point configuration, this head allows access to fasteners in tight or restricted spaces without sacrificing torque accuracy. The Z-type shank with a 0.990 inch shank diameter connects to compatible CDI torque wrench drives. It handles a maximum torque of 480 ft-lb, making it suitable for heavy-duty mechanical and industrial work. Measured in SAE units, this head suits technicians working in standard measurement environments.

This torque wrench head is suited for heavy mechanical service environments including commercial HVAC equipment installation, industrial machinery maintenance, and structural fastening tasks. The 15-degree offset geometry gives technicians the clearance needed to seat fasteners in recessed or obstructed locations. It is typically installed and used by licensed mechanical contractors, millwrights, and experienced service technicians who require consistent, repeatable torque application on large-diameter fasteners.

Key Features

• 1-11/16 inch SAE box end for large-diameter fastener engagement
• 15-degree offset head geometry for access in restricted or recessed locations
• 12-point contact pattern for positive fastener grip and reduced rounding risk
• Maximum torque rating of 480 ft-lb for heavy-duty fastening work
• Z-type shank with 0.990 inch shank diameter for secure drive connection

Compatibility

Designed for use with CDI torque wrench drives that accept a Z-type shank with a 0.990 inch shank diameter. Verify drive and shank compatibility before installation.

Installation Notes

This head is installed by mechanical technicians and contractors using compatible torque wrench drive tools. Before use, confirm the shank connection is fully seated and secure to prevent slippage under load. Always follow the applicable torque specifications provided by the equipment or fastener manufacturer. Consult relevant industry codes and manufacturer guidelines for torque wrench calibration intervals and proper usage procedures.

Technical Specifications

• Head Size: 1-11/16 inches
• Head Type: 15 Degree Offset Box End
• Point Type: 12 Point
• Shank Size: 0.990 inches
• Shank Type: Z
• Maximum Torque: 480 ft-lb
• Measurement Type: SAE
• Length: 2 inches
• Width: 8 inches
• Height: 1 inch
• Weight: 1.61 pounds

Standard Information

• Brand: CDI TORQUE
• Manufacturer Part Number: TCQZX54A
