Cdi Torque TCQYO80 Torque Wrench Head 2.5 in Open End Sae

Product Description

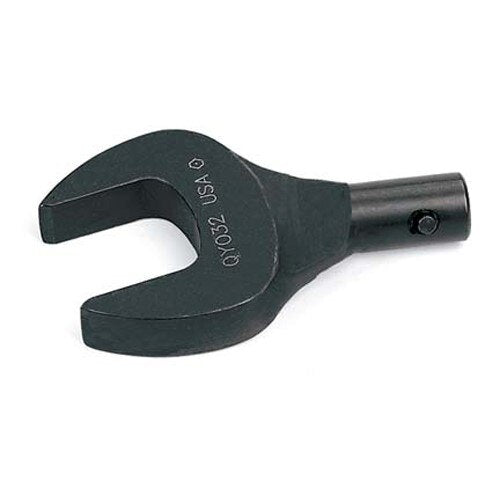

The CDI TORQUE TCQYO80 is an open-end torque wrench head designed for heavy-duty fastening applications requiring precise torque delivery. It accepts a Y-type shank measuring 0.560 inches and handles a maximum torque of 160 ft-lb, making it well suited for high-load bolted connections. The 2.5-inch open-end head attaches to compatible torque wrench handles to provide controlled tightening on fasteners in locations where a closed or socket-style head cannot reach. Weighing 3.69 pounds and measuring 5 inches in length, this head is built for durability in professional workshop and field use. Licensed mechanics, industrial technicians, and assembly professionals are the primary installers.

This torque wrench head is used in applications requiring SAE fastener engagement at the 2.5-inch size range. It is suited for heavy equipment maintenance, industrial assembly lines, and large-fastener service work where open-end access is necessary. The Y-type shank design allows secure attachment to a mating torque wrench handle. The center of the fastener to the retaining pin measures 3 inches, a dimension relevant when working in tight or obstructed spaces. This part is sold as an individual unit and is intended for professional trade use.

Key Features

• 2.5-inch open-end head for SAE fastener engagement
• Maximum torque rating of 160 ft-lb for high-load applications
• Y-type shank at 0.560 inches for secure wrench handle connection
• Center of fastener to retaining pin: 3 inches for clearance-critical work
• Compact profile at 5 inches length and 1 inch height for tight-space access
• Weighs 3.69 pounds — durable construction for professional field and shop use

Compatibility

Designed for use with torque wrench handles that accept a Y-type shank measuring 0.560 inches. Intended for SAE fastener applications in the 2.5-inch size range.

Installation Notes

Installation and use of this torque wrench head should be performed by qualified mechanics or technicians familiar with torque tool procedures. Ensure the Y-type shank is fully seated and the retaining pin is secured before applying torque. Do not exceed the 160 ft-lb maximum torque rating. Follow applicable equipment service manuals and industry torque specifications when using this head on critical fasteners.

Technical Specifications

• Head Size: 2.5 inches
• Head Type: Open End
• Measurement Type: SAE
• Maximum Torque: 160 ft-lb
• Shank Size: 0.560 inches
• Shank Type: Y
• Center of Fastener to Retaining Pin: 3 inches
• Length: 5 inches
• Width: 5.5 inches
• Height: 1 inch
• Weight: 3.69 pounds
• Sold As: Each

Standard Information

• Brand: CDI TORQUE
• Manufacturer Part Number: TCQYO80
