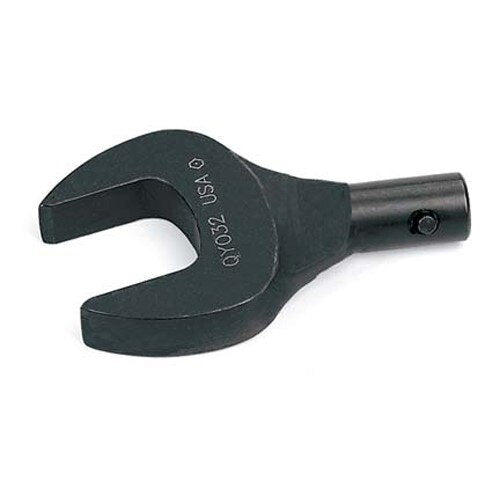

Cdi Torque TCQJO9A Torque Wrench Head 9/32 Inch Open End

Product Description

The CDI TORQUE TCQJO9A is a 9/32 inch open end torque wrench head designed for precision fastening applications in trade and industrial settings. It accepts a J-type shank measuring 0.425 inches and delivers a maximum torque output of 7 foot-pounds. The SAE measurement standard makes it a direct fit for inch-based fastener work. Compact and lightweight at 0.05 pounds, this head is built for use with compatible torque wrench handles where controlled, repeatable torque application is required. Mechanics, HVAC technicians, and other trade professionals use this type of interchangeable head to work in confined spaces or on fasteners that demand a specific torque value without full wrench clearance.

This torque wrench head is suited for light-duty fastening tasks in residential and commercial service environments. Its open end configuration allows engagement with hex fasteners in locations where a socket cannot be seated. The 9/32 inch SAE sizing targets smaller fasteners commonly found in HVAC equipment, electrical panels, plumbing fixtures, and general mechanical assemblies. The center of fastener to retaining pin dimension is 2.5 inches, which determines reach and positioning in tight installations.

Key Features

• 9/32 inch open end head for SAE fastener applications
• Maximum torque rating of 7 foot-pounds for controlled tightening
• J-type shank with 0.425 inch shank size for compatible handle systems
• Center of fastener to retaining pin distance of 2.5 inches
• Lightweight construction at 0.05 pounds for reduced hand fatigue

Compatibility

Designed as an interchangeable torque wrench head for use with CDI TORQUE J-shank compatible torque wrench handles accepting a 0.425 inch J-type shank.

Installation Notes

Installation and use of this torque wrench head should be performed by a qualified technician familiar with torque tool systems. Confirm the shank size and type of the drive handle before attaching the head to ensure a secure fit. Always verify the retaining pin is fully engaged before applying torque. Do not exceed the maximum torque rating of 7 foot-pounds to avoid damage to the fastener or the tool head.

Technical Specifications

• Head Size: 9/32 inch
• Head Type: Open End
• Measurement Type: SAE
• Shank Size: 0.425 inches
• Shank Type: J
• Maximum Torque: 7 foot-pounds
• Center of Fastener to Retaining Pin: 2.5 inches
• Weight: 0.05 pounds
• Length: 0.5 inches
• Width: 5 inches
• Height: 0.5 inches
• UOM: Each

Standard Information

• Brand: CDI TORQUE
• Manufacturer Part Number: TCQJO9A
