Cdi Torque 802MFRFMHSS Flex Head Torque Wrench 3/8 Drive

Product Description

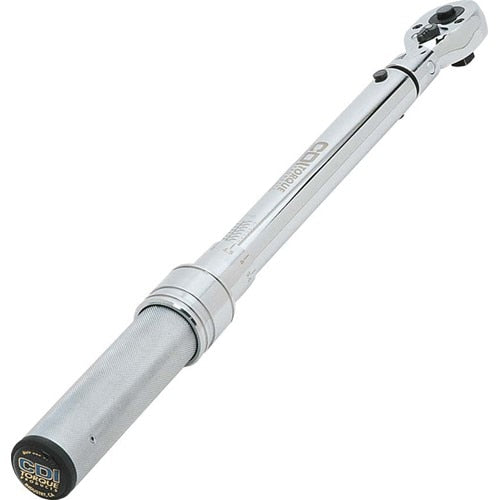

The CDI TORQUE 802MFRFMHSS is a flex head micrometer torque wrench built for trade professionals who need reliable, repeatable torque application in tight or awkward spaces. The 3/8 inch drive head pivots 15 degrees in both directions, allowing access where a fixed-head wrench cannot reach. The micrometer-style adjustment mechanism covers a range of 10 to 80 foot-pounds in 0.5 foot-pound increments, with an overall length of 16.6 inches. Accuracy is rated at 4 percent clockwise and 6 percent counterclockwise of indicated value, measured from 20 percent to 100 percent of full scale. HVAC technicians, plumbers, electricians, and mechanical contractors use this wrench wherever fastener torque specifications must be met and documented.

This wrench is suited for residential and commercial service work, equipment assembly, and any application requiring controlled fastener torque. The 3/8 inch drive size covers the mid-range fastener work common in HVAC compressor service, pipe flange bolting, and electrical panel work. The 16.6 inch overall length provides adequate leverage across the full torque range without excessive handle travel. Each unit is individually serialized and ships with a matching certificate of calibration traceable to N.I.S.T., making it appropriate for shops and field technicians who must maintain documented calibration records.

Key Features

• Flex head pivots 15 degrees in both directions for access in confined spaces
• Single scale, dual direction operation with positive locking ring
• Spring-loaded pull-down lock ring secures the set value against unintentional adjustment
• Laser-marked scales for high-visibility readout in field conditions
• Accuracy: 4 percent CW and 6 percent CCW of indicated value from 20 to 100 percent of full scale
• Individually serialized with N.I.S.T.-traceable certificate of calibration included
• Meets or exceeds ASME and ISO 6789 standards

Compatibility

Designed for use with standard 3/8 inch drive sockets and accessories. Suitable for general mechanical, HVAC, plumbing, and electrical trade applications requiring fastener torque in the 10 to 80 foot-pound range.

Installation Notes

This torque wrench is intended for use by qualified trade professionals familiar with torque specifications for the fasteners and equipment being serviced. Always set the wrench to the lowest value in the range when storing to reduce spring fatigue. Do not use as a breaker bar or apply force beyond the rated maximum of 80 foot-pounds. Calibration should be verified periodically per the requirements of your quality program or applicable industry standards.

Technical Specifications

• Drive Size: 3/8 inch
• Torque Range: 10 to 80 ft lb
• Increment: 0.5 ft lb
• Accuracy (CW): 4 percent of indicated value, 20 to 100 percent of full scale
• Accuracy (CCW): 6 percent of indicated value, 20 to 100 percent of full scale
• Head Type: Flex Head, pivots 15 degrees in both directions
• Overall Length: 16.6 inches
• Weight: 3.14 pounds
• Standards: ASME, ISO 6789
• Calibration: Individually serialized, N.I.S.T.-traceable certificate included
• UOM: Each

Standard Information

• Brand: CDI TORQUE
• Manufacturer Part Number: 802MFRFMHSS
