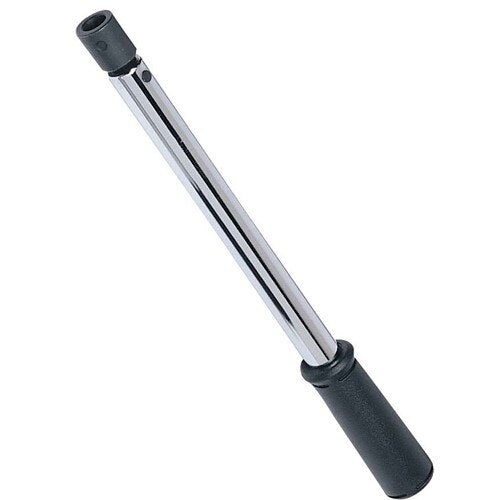

Cdi Torque 50T-I-SET Torque Wrench 15-75 Ft-lb

Product Description

The CDI TORQUE 50T-I-SET is a factory pre-set, single-setting torque wrench built for production line and repetitive fastening applications where consistent torque output is critical. Spanning a torque range of 15 to 75 ft-lb, the wrench ships pre-set to a customer-specified value and includes a Certificate of Calibration. Overall length is 11 inches. The click-and-feel impulse mechanism delivers an audible signal and tactile feedback at the target torque, reducing the risk of under- or over-torquing fasteners. The tamper-proof torque setting is sealed at the factory, keeping the calibrated value intact throughout production use. Licensed mechanics, assembly technicians, and service professionals working in high-volume fastening environments are the primary users.

The 50T-I-SET is suited for production line assembly, fleet maintenance bays, and any application requiring repeatable torque output on a fixed value. It accepts universal round shank interchangeable heads, making it compatible with a range of drive configurations without retooling the wrench body. The non-slip cushion grip reduces operator fatigue during extended use. Because the torque setting is specified at order placement and locked at the factory, this wrench is particularly well matched to quality-controlled manufacturing environments and service operations with defined torque specifications.

Key Features

• Factory pre-set to customer-specified torque value; includes Certificate of Calibration
• Torque range: 15 to 75 ft-lb
• Accuracy: plus or minus 4% of indicated value from 20% to 100% of full scale, in the direction of torque indicator
• Meets or exceeds ASME B107.300-2010
• Audible click and tactile impulse feedback at target torque
• Tamper-proof setting for production line integrity
• Accepts universal round shank interchangeable heads
• Durable non-slip cushion grip

Compatibility

Designed for use with universal round shank interchangeable heads; specify desired torque setting at time of order placement.

Installation Notes

Torque wrench service and calibration verification should be performed by a qualified technician familiar with ASME B107.300 standards. Always confirm the pre-set torque value matches the fastener specification before beginning production use. Do not attempt to adjust the factory-sealed torque setting in the field, as this will void calibration. Store the wrench in its protective case when not in use to preserve calibration integrity.

Technical Specifications

• Torque Range: 15 to 75 ft-lb
• Overall Length (OAL): 11 inches
• Accuracy: plus or minus 4% of indicated value from 20% to 100% of full scale
• Standard Compliance: ASME B107.300-2010
• Head Type: Universal round shank interchangeable
• Weight: 1.54 pounds
• UPC: 662459933096

Standard Information

• Brand: CDI TORQUE
• Manufacturer Part Number: 50T-I-SET
