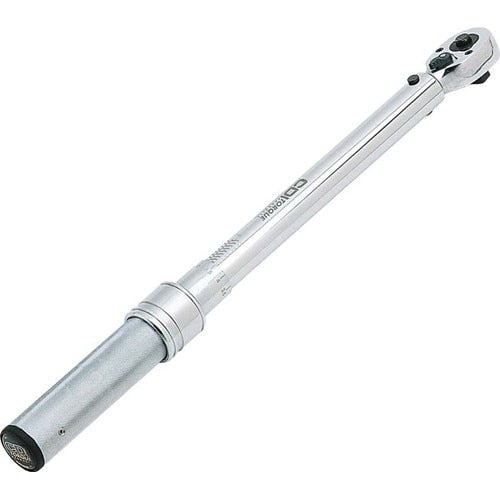

Cdi Torque 2003NMRMHSS Torque Wrench 40-200 Nm 1/2 in Drive

Product Description

The CDI TORQUE 2003NMRMHSS is a 1/2 inch drive click-style torque wrench with a calibrated range of 40 to 200 Newton-meters (Nm) and a 2 Nm increment resolution. Built for professional and industrial use, the metal handle is lightly knurled for a firm, non-slip grip that holds up under repeated daily use. The wrench is individually serialized and ships with a certificate of calibration traceable to N.I.S.T., making it suitable for controlled-torque applications in mechanical, HVAC, and facilities maintenance work. Overall length is 19 inches and the unit weighs 4 pounds.

This wrench is suited for trade professionals who require repeatable, audible-click torque confirmation in Newton-meter units only. The single-scale Newton-meter graduation makes it a direct fit for applications where metric torque specifications are required, such as equipment installation, refrigeration compressor mounting, pipe flange fastening, and general mechanical assembly. The 1/2 inch drive accepts standard 1/2 inch impact and hand sockets, giving techs broad socket compatibility across common fastener sizes.

Key Features

• Calibrated dual direction with single Newton-meter scale; CW accuracy 4 percent, CCW accuracy 6 percent of indicated value from 20 to 100 percent of full scale
• Positive locking mechanism with spring-loaded pull-down lock ring prevents accidental setting changes between fasteners
• Laser-marked scales for clear, low-glare readability in field conditions
• Quick-release button provides positive socket retention and easy socket removal without prying
• Fast, repeatable setting adjustment suited to high-volume fastening tasks
• Individually serialized with N.I.S.T.-traceable calibration certificate included

Compatibility

Designed for use with standard 1/2 inch drive hand sockets requiring metric torque application in the 40 to 200 Nm range.

Installation Notes

Installation and torque application should be performed by a qualified technician familiar with the fastener specifications of the equipment being serviced. Always set the wrench to the target torque value before applying and engage the lock ring to secure the setting. Power down or de-energize equipment before performing any fastening operations on live systems. Store the wrench at or near its lowest setting when not in use to preserve internal spring calibration.

Technical Specifications

• Drive Size: 1/2 inch
• Torque Range: 40 to 200 Nm
• Increment Resolution: 2 Nm
• Overall Length: 19 inches
• Accuracy (CW): 4 percent of indicated value from 20 to 100 percent of full scale
• Accuracy (CCW): 6 percent of indicated value from 20 to 100 percent of full scale
• Scale Type: Single scale, Newton-meter only
• Calibration: N.I.S.T.-traceable certificate included, individually serialized
• Weight: 4 pounds

Standard Information

• Brand: CDI TORQUE
• Manufacturer Part Number: 2003NMRMHSS
