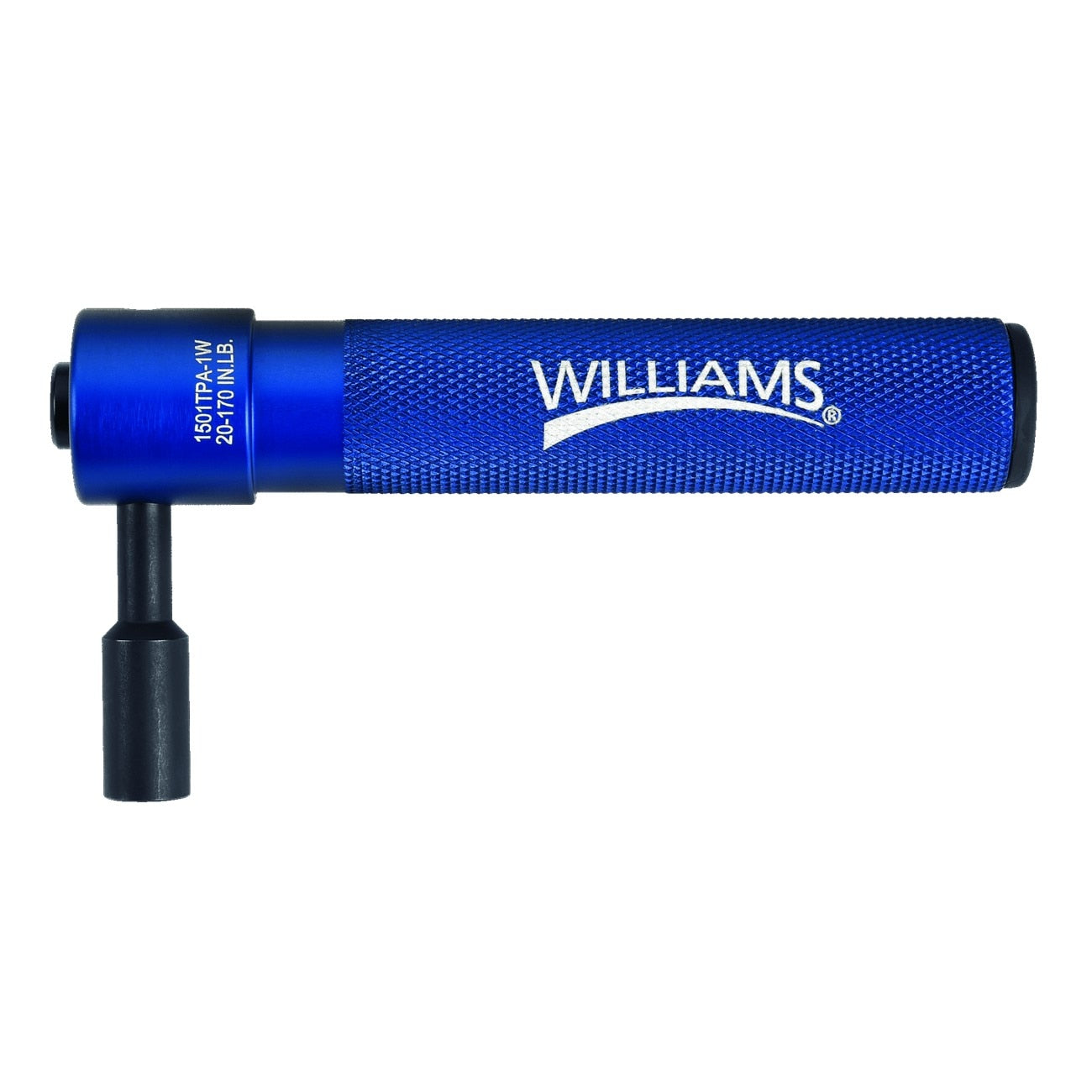

Cdi Torque 1501TPA-1 Right Angle Preset Torque Wrench

Product Description

The CDI TORQUE 1501TPA-1 is a right angle preset torque wrench designed for production torque applications that require higher values than a standard torque screwdriver can deliver. Built around a 1/4 inch drive, it covers a torque range of 20 to 170 inch-pounds and features a click-style breakover mechanism that delivers a clear, momentary release when the target torque value is reached. At 5.25 inches overall length and 0.57 pounds, it is compact enough for tight-clearance fastening tasks. The ergonomic right angle body reduces operator strain during high-repetition assembly work, making it a practical choice for technicians and production line personnel who need consistent, repeatable torque application.

This wrench is suited for production and assembly environments where fastener torque specifications must be met reliably and repeatedly. It operates bidirectionally, allowing use in both clockwise and counterclockwise applications. The torque value can be ordered factory preset to a customer-specified setting and comes with a Certificate of Calibration when ordered that way. Alternatively, the operator can set the torque value using any quality torque calibration system. HVAC, electrical, and mechanical assembly technicians working with small fasteners and sensitive components will find this tool well matched to their workflow.

Key Features

• Right angle design reduces strain during repeated production torque applications
• Torque range of 20 to 170 inch-pounds with 1/4 inch drive
• Momentary breakover click provides clear indication when target torque is reached
• Bidirectional operation for clockwise and counterclockwise fastening
• Accuracy of plus or minus 6 percent of indicated value, clockwise, from 20 percent to 100 percent of full scale
• Factory preset option available with Certificate of Calibration included

Compatibility

Designed for use with standard 1/4 inch drive sockets and accessories. Compatible with production and assembly torque applications requiring 20 to 170 inch-pounds of output.

Installation Notes

This wrench is intended for use by technicians familiar with torque calibration and fastener specification requirements. Before use, verify the torque setting against the fastener specification using a calibrated reference system if the wrench is operator-set rather than factory preset. Store the wrench at its lowest torque setting when not in use to preserve the internal spring mechanism. Periodic recalibration is recommended to maintain accuracy within the stated tolerance.

Technical Specifications

• Drive Size: 1/4 inch
• Torque Range: 20 to 170 inch-pounds
• Overall Length: 5.25 inches
• Accuracy: Plus or minus 6 percent of indicated value, clockwise, from 20 percent to 100 percent of full scale
• Operation: Bidirectional
• Length: 3 inches
• Width: 5.5 inches
• Height: 1.2 inches
• Weight: 0.57 pounds
• UPC: 662459182517

Standard Information

• Brand: CDI TORQUE
• Manufacturer Part Number: 1501TPA-1
