Cd Valve CDV-CD5044 Tee Fitting 1/4 Inch Flare Hvac/r

Product Description

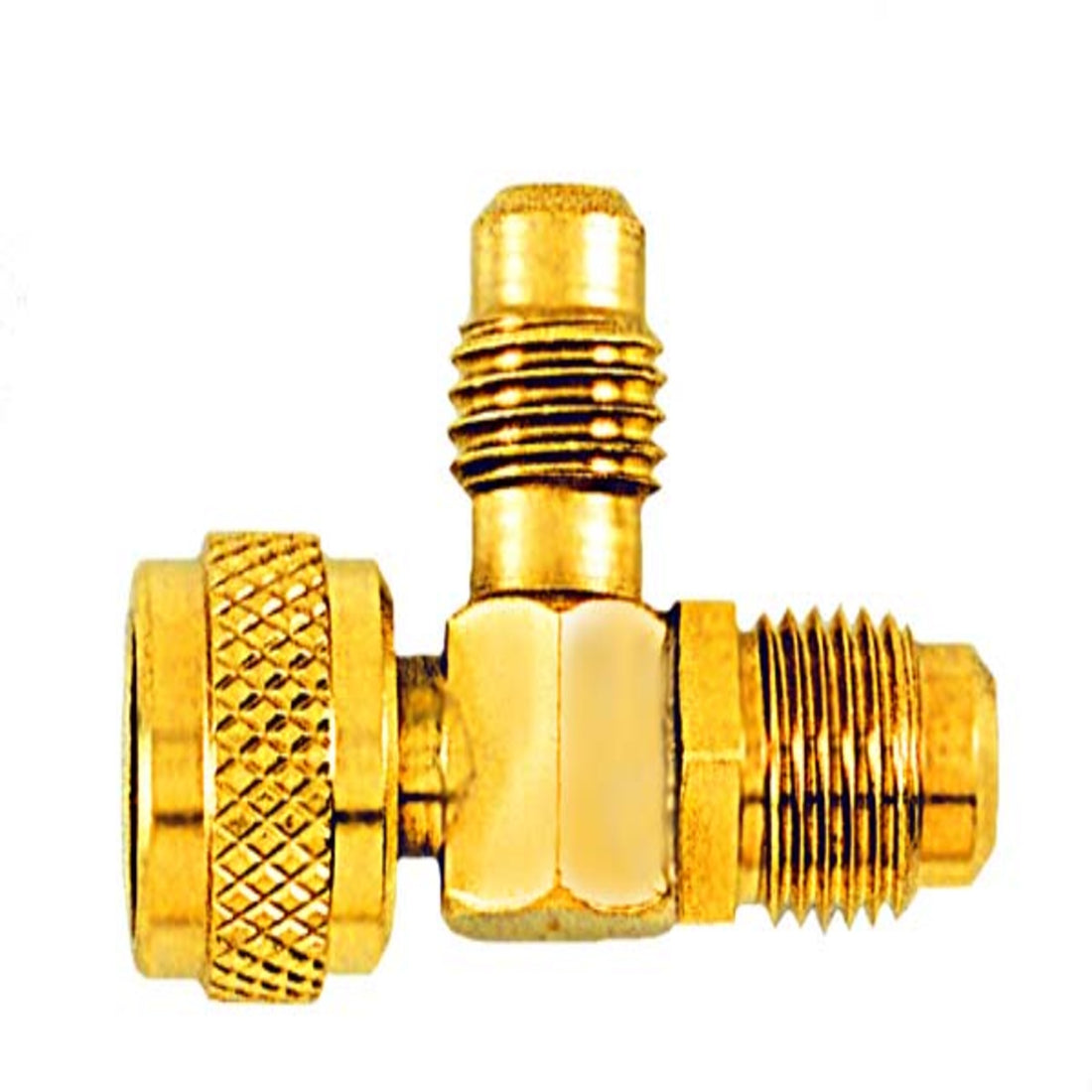

The CD VALVE C&DV-CD5044 is a tee fitting built for HVAC/R refrigerant line applications. It combines two 1/4 inch male flare connections with no Schrader core and one 1/4 inch female flare coupler port sealed with an o-ring. The coreless male flare ends allow direct flow without valve core obstruction, which is useful during charging, evacuation, or line access procedures. The o-ring seal on the female coupler port provides a positive, leak-resistant connection. Licensed HVAC/R technicians install this fitting when a branch access point is needed in a refrigerant circuit.

This tee fitting is suited for residential and light commercial HVAC/R systems where 1/4 inch flare connections are standard. Typical applications include refrigerant manifold hookups, system access ports, and branch line configurations. The coreless male flare ports make this fitting compatible with standard manifold gauge hoses and quick-connect adapters used in field service work. It is a single-piece fitting intended for permanent or semi-permanent installation in a refrigerant circuit.

Key Features

• Tee configuration with three 1/4 inch flare ports for branch-line access
• Two coreless male flare ends allow unrestricted refrigerant flow
• Female flare coupler port with o-ring seal for a leak-resistant connection
• Designed for HVAC/R refrigerant service and charging applications
• Compact fitting suitable for tight equipment installations

Compatibility

Designed as an OEM-style replacement or service fitting for HVAC/R systems using standard 1/4 inch flare refrigerant connections.

Installation Notes

This fitting is installed by licensed HVAC/R technicians. Recover all refrigerant and relieve system pressure before opening any refrigerant circuit connection. Inspect flare surfaces and the o-ring seal for damage before installation. Follow all applicable EPA Section 608 regulations and local codes when working with refrigerants.

Technical Specifications

• Port 1: 1/4 inch male flare, no core
• Port 2: 1/4 inch female flare coupler with o-ring seal
• Port 3: 1/4 inch male flare, no core
• Configuration: Tee
• Application: HVAC/R refrigerant systems
• Quantity: 1 each

Standard Information

• Brand: CD VALVE
• Manufacturer Part Number: C&DV-CD5044
