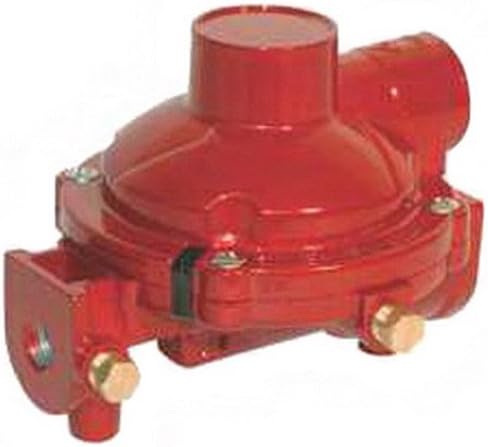

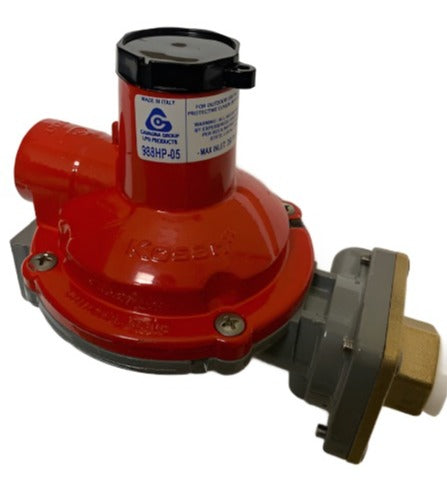

Cavagna 988HP-05 Regulator First Stage Female POL x 1/2 Inch NPT Inlet/Outlet 10 Pounds per Square Inch 2100K BTU

Product Description

The CAVAGNA 988HP-05 is a first stage LP propane gas regulator designed to reduce inlet pressure from a container to a medium level for a second stage regulator. It features a Female POL x 1/2 Inch NPT inlet/outlet connection and a pressure rating of 10 Pounds per Square Inch. This regulator has a capacity of 2100K BTU and is suitable for outdoor use in Type A or Type C installations, with the vent-hole positioned downwards.

• Female POL x 1/2 Inch NPT inlet/outlet connection for versatile setup.
• Capacity of 2100K BTU for efficient propane gas regulation.
• Designed for Type A or Type C outdoor installations with a downward-facing vent-hole.

Product Highlights

This first stage regulator provides precise pressure reduction and high BTU capacity for propane gas systems.

Product Information

Standard Information

• Brand: CAVAGNA
• Manufacturer Part Number: 988HP-05
• Country of Origin: Italy

Technical Specifications

• Brand: Cavagna
• MPN: 988HP-05
• Regulator Type: First Stage Regulator
• Inlet Connection: Female POL
• Outlet Connection: 1/2 Inch NPT
• Output Pressure: 10 Pounds per Square Inch
• BTU Capacity: 2100K BTU
• Gas Type: Propane Gas
• Input Pressure Range: 25-250 PSIG
• Setting Point: Inlet Pressure 100 PSIG, 140,000 BTU, Outlet Pressure 10 PSIG
• Certifications: UL Listed
• Application: Heavy Duty First Stage Compact Regulator
• Configuration: Straight
• Output Pressure Range: 8-12 PSI
