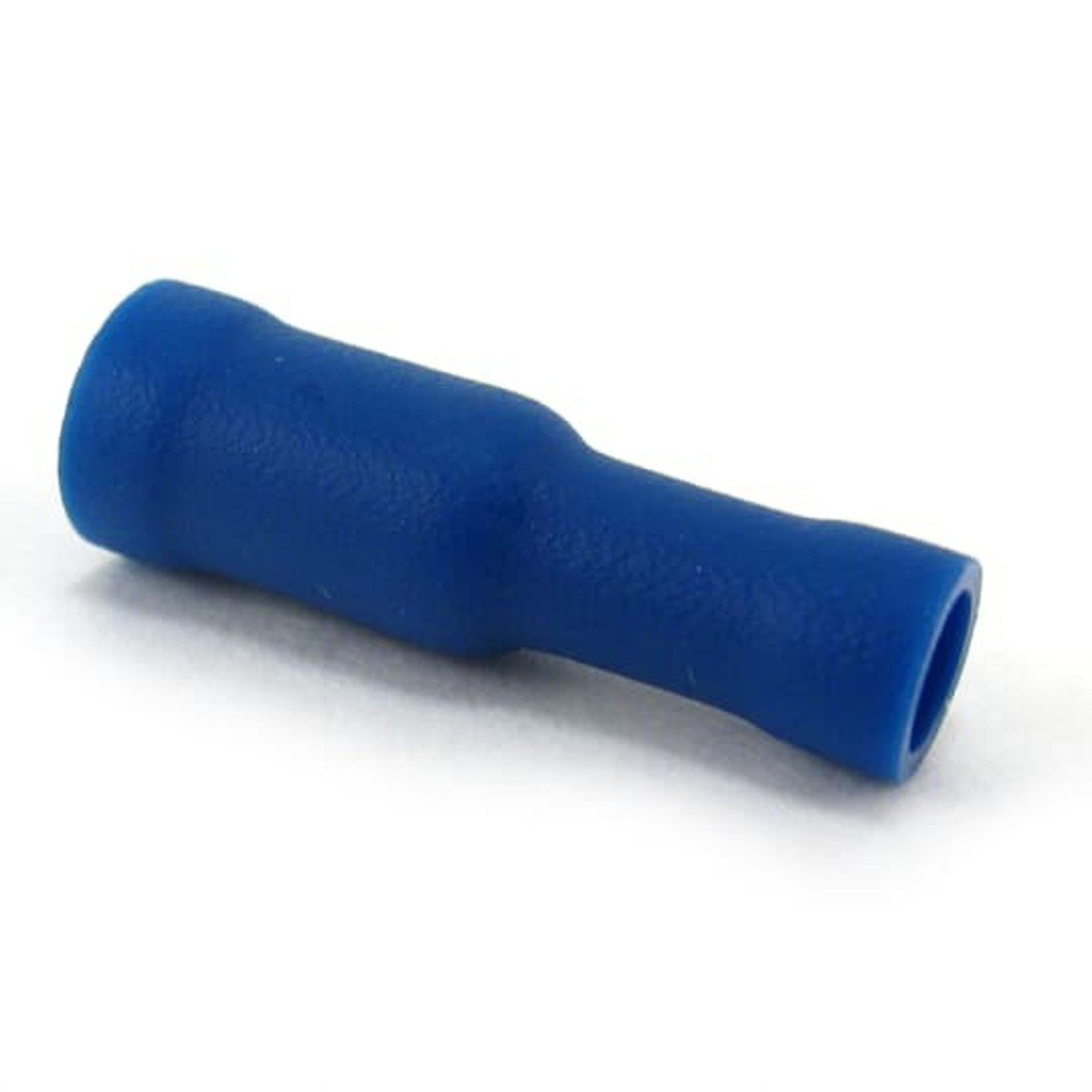

Catamount TNF14-4FB-XV Fully Insulated Nylon Female Bullet Disconnects 16-14

Product Description

The CATAMOUNT TNF14-4FB-XV is a fully insulated nylon female bullet disconnect designed for wire ranges 16-14. It features a metal insulation sleeve, molded insulator, and internal barrel serrations. The disconnect also offers a funnel entry for easy wire insertion. Constructed from brass with a copper sleeve, it ensures reliable electrical terminations in commercial applications.

• Fully Insulated
• Metal Insulation Sleeve
• Molded Insulator
• Internal Barrel Serrations
• Funnel Entry

Product Highlights

Fully insulated nylon female bullet disconnect with metal insulation sleeve and internal barrel serrations for secure wire connections.

Product Information

Standard Information

• Brand: CATAMOUNT
• Manufacturer Part Number: TNF14-4FB-XV
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Catalog Number: TNF14-4FB-XV
• Manufacturer: ABB - Installation Products
• Brand: CATAMOUNT
• Sub Brand: Catamount
• Country of Origin: Taiwan, Province Of China
• Made in USA: No
• Insulation: Nylon/Polyamide
• Material: Brass with Copper Sleeve
• Special Features: Fully Insulated. Metal Insulation Sleeve. Molded Insulator. Internal Barrel Serrations. Funnel Entry
• Standard: UL E9809
• UPC: 728494144849
• GTIN: 00728494144849
• Item Type: Nylon Fully Insulated Female Bullet
• Type: Bullet Style, Funnel Entry
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Temperature Rating: 105 Deg C
• Approval: UL
• Voltage Rating: 600 V
• Barrel Type: Internal Serration
• Conductor Size: 16-14 AWG
• Insulation Material: Nylon
• Overall Length: 0.992 in
• Finish: Tin Plated
• Bullet Diameter: 0.153 in
• UNSPSC: 39121447
• BABA Compliant: No
• Product Series: CATAMOUNT-TERMINALS
• Family Series: Catamount, a T & B Brand Terminals, CATAMOUNT-TERMINALS Series
• Description: Fully Insulated Nylon Female Bullet Disconnects for Wire Range 16-14 , Blue
• Terminal Type: Bullet - Female
• Wire Size Range: 16-14 AWG
• Insulated: Insulated
• Maximum Temperature: 221 °F
