Catamount L-4-18-9-C Cable Tie 18lb 4.1 inches 100 per Pack

Product Description

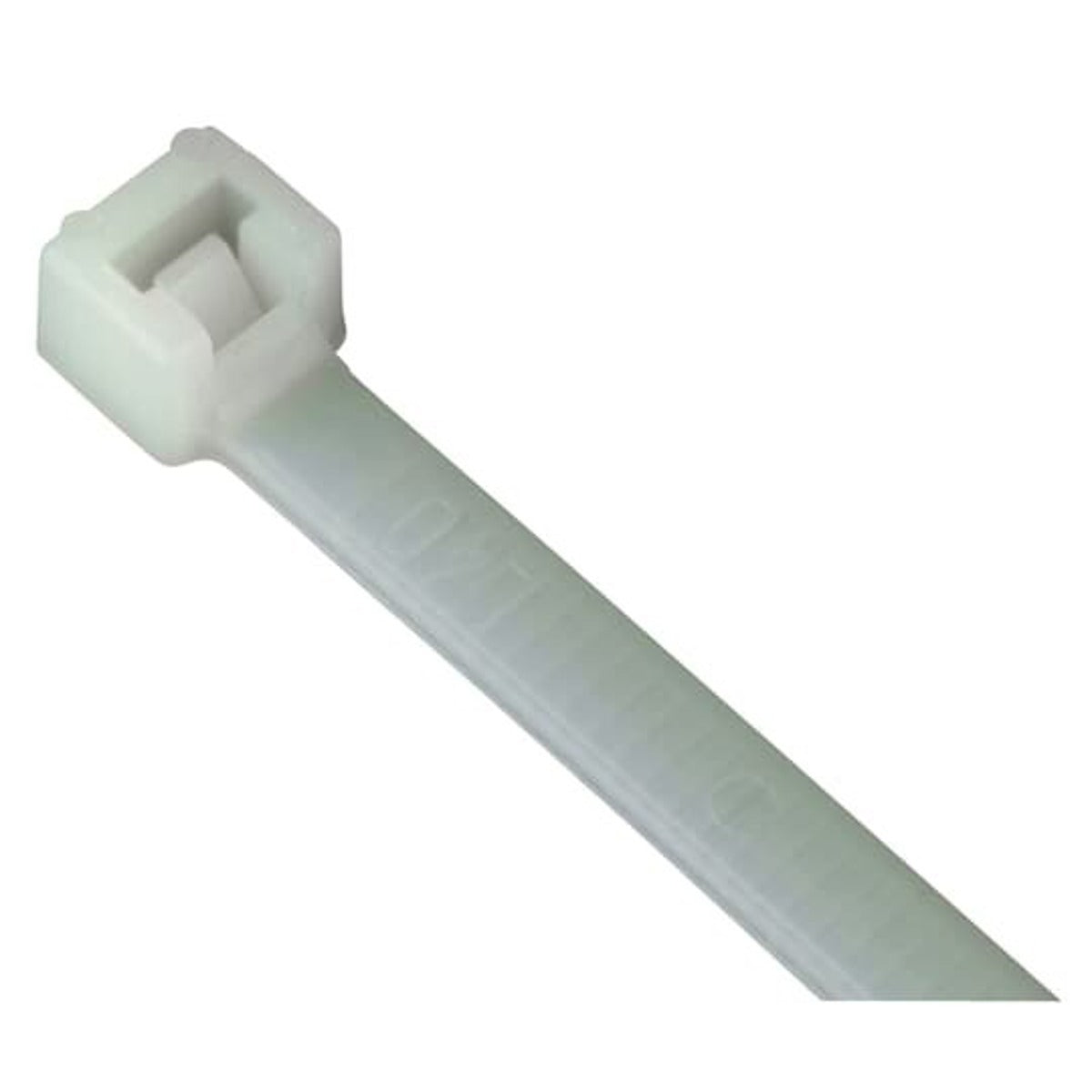

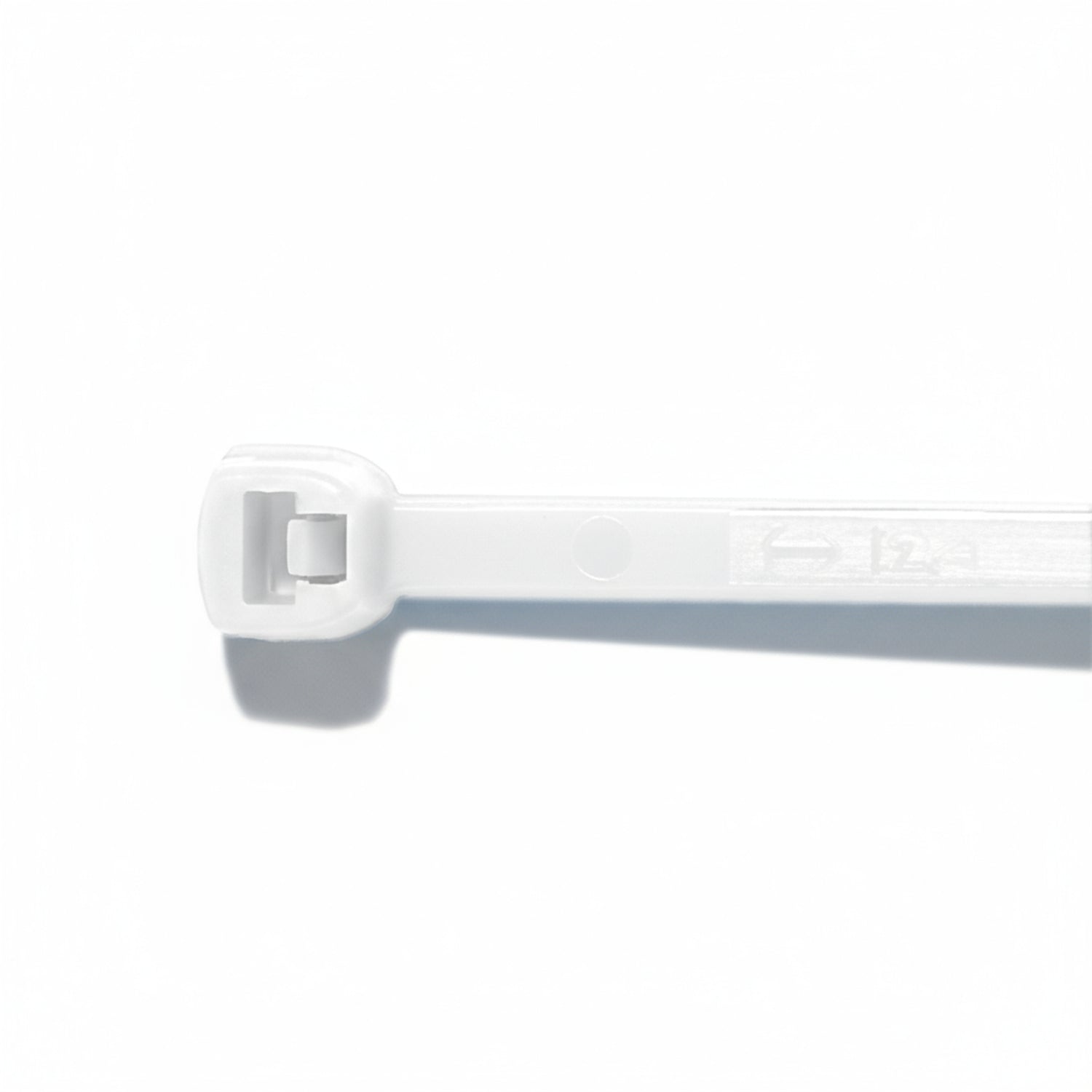

The CATAMOUNT L-4-18-9-C cable tie is made of natural polyamide (Nylon 6.6) and suitable for indoor applications. UL/EN/CSA62275 Type 2/21 rated for AH-2 Plenum. It is designed for temperatures up to 85 Degrees Celsius (185 F). This miniature cable tie has a tensile strength rating of 80 Newtons (18 Pounds) and comes in a pack of 100.

• Made of Natural Polyamide (Nylon 6.6)
• Tensile Strength Rating of 80 Newtons (18 Pounds)
• Suitable for indoor applications

Product Highlights

The CATAMOUNT L-4-18-9-C cable tie is ideal for general purpose fastening and wire terminations in commercial and residential applications.

Product Information

Standard Information

• Brand: CATAMOUNT
• Manufacturer Part Number: L-4-18-9-C
• Country of Origin: United States

Technical Specifications

• Catalog Number: L-4-18-9-C
• Manufacturer: ABB - Installation Products
• Brand: Catamount
• Country of Origin: United States
• Made in USA: Yes
• Lock Mechanism: Plastic Pawl
• Material: Plastic
• Standard: UL E49405
• UPC: 728494914602
• GTIN: 00728494914602
• Item Type: Miniature
• Length: 4.1 in
• Width: 0.1 in
• Tensile Strength: 18 pounds
• Thickness: 0.04 in
• Type: 1-Piece, Miniature, Bent Tip, Locking
• Clip Material: Molded Nylon 6/6
• Bundle Diameter: 0.75 in
• Approval: UL
• Temperature Rating: 185
• Application: Commercial/Residential
• Nominal Length (inches): 4
• Length (inches): 4.0
• Width (inches): 0.100
• Max. Wire Bundle Diameter (inches): 5/8
• Min. Wire Bundle Diameter (inches): 1/16
• Military Standard Part No.: MS-3367-4-9
• Flammability Rating: UL 94 V-2
• Category: Cable ties
• RoHS: RoHS3 Compliant
• REACH: REACH 247 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC000046 Cable tie
• Band width: 2.4 mm
• Length belt/tape/tie: 4.1 inch
• Tie thickness: 0.04 inch
• Max. bundle diameter: 19 mm
• Min. holding force: 80 N
• Operation temperature: -40-+185 °F
• Model: Internal toothing
• Band closure: Plastic lip/-cam
• Surface protection: Untreated
• Halogen free: Y
• Transparent: N
• Reflective (fluorescent): N
• Text strip: None
• Solvable fastener: N
• MIL approval: N
• UNSPSC: 39121703
