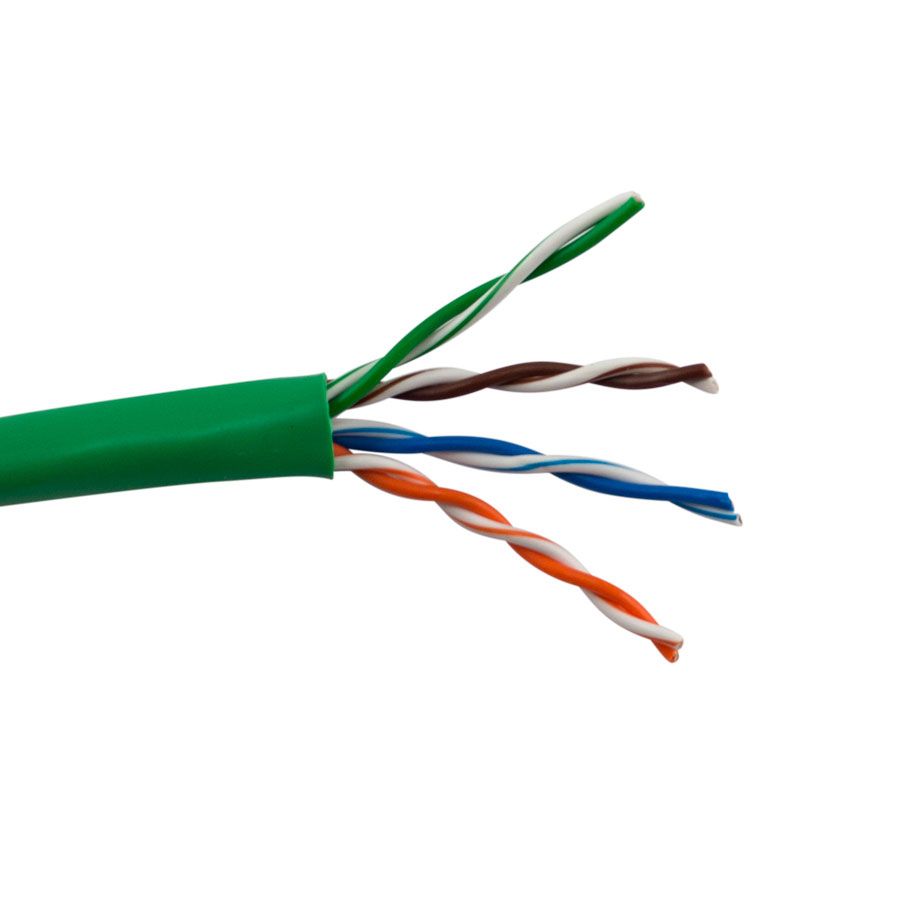

cat5e-gn-etl Cat5e 350mhz 24AWG Utp Cmr Etl Green 1000ft

Product Description

The cat5e-gn-etl is a CAT5e-rated unshielded twisted pair (UTP) bulk Ethernet cable designed for structured cabling installations in commercial and residential buildings. Constructed with 24 AWG solid bare copper conductors arranged in four pairs, this cable is rated to 350 MHz and meets the ANSI/TIA 568.2-D standard for balanced twisted-pair telecommunications cabling. The green PVC jacket carries a CMR (Communications Multipurpose Cable, Riser) rating, and the cable has been verified by ETL to confirm compliance with applicable standards. It is supplied in a 1000-foot pull box for in-wall and in-ceiling runs.

This cable is suited for horizontal runs in riser-rated environments including office buildings, schools, warehouses, and multi-unit residential construction. Low-voltage installers and data cabling contractors use it for structured cabling backbone and horizontal distribution segments, terminating to patch panels, keystone jacks, and wall plates. The solid conductor construction is intended for permanent runs rather than frequent flexing or patch applications. The green jacket color supports color-coded cabling schemes for network identification and organization.

Key Features

• CAT5e performance rated to 350 MHz for Gigabit Ethernet and Fast Ethernet applications
• 24 AWG solid conductor construction optimized for permanent horizontal and riser runs
• ANSI/TIA 568.2-D compliant balanced twisted-pair design
• CMR (Riser) rated PVC jacket approved for riser and non-plenum vertical shaft installations
• ETL listed and verified to confirm standards compliance
• Green jacket for color-coded network cable management
• 1000-foot pull box for clean, continuous in-wall or overhead distribution runs

Compatibility

Designed as a standard CAT5e UTP bulk cable compatible with 110-style punch-down patch panels, RJ45 keystone jacks, and field-termination plugs rated for solid 24 AWG conductors.

Installation Notes

This cable should be installed by a qualified low-voltage technician in accordance with applicable local codes and ANSI/TIA 568.2-D guidelines. De-energize any adjacent circuits before fishing or securing cable runs, and maintain minimum bend radius throughout the route to preserve pair geometry and signal integrity. CMR-rated cable is approved for riser shafts but is not approved for use in air-handling plenums; plenum-rated (CMP) cable is required in those spaces. Terminate solid conductors only with tooling and connectors rated for solid 24 AWG wire.

Technical Specifications

• Cable Category: CAT5e
• Frequency Rating: 350 MHz
• Conductor Gauge: 24 AWG solid
• Pair Count: 4 pairs
• Construction: Unshielded Twisted Pair (UTP)
• Jacket Material: PVC
• Flame/Riser Rating: CMR (Riser)
• Certification: ETL Listed
• Standard: ANSI/TIA 568.2-D
• Jacket Color: Green
• Cable Length: 1000 feet
• Packaging: Pull Box

Standard Information

• Brand: GENERIC / UNBRANDED
• Manufacturer Part Number: cat5e-gn-etl
