Caster Swivel Plate 500 Degree F 1201210 for AllPoints ALL1201210

Product Description

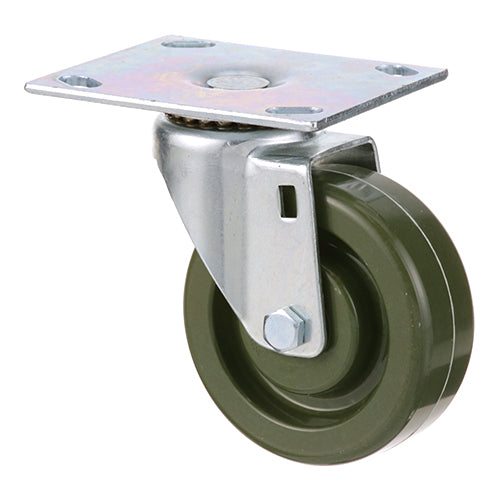

This item for AllPoints 1201210 is a high-temperature medium-duty swivel plate caster. It is designed to withstand temperatures up to five hundred degrees Fahrenheit. The caster includes mounting hardware and is commonly used with Baxter, Hobart, and Revent rack ovens, as well as pan racks.

• Load capacity of five hundred forty-four kilograms per set of four
• Mounting plate size measures three and three-fourths inches by four and one-half inches
• Constructed from epoxy resin for durability

Product Highlights

This swivel plate caster features a green wheel and hub, offering reliable mobility under various conditions.

Product Information

Standard Information

• Type: Swivel Caster
• Temperature Rating: Maximum five hundred degrees Fahrenheit

Technical Specifications

• Load Capacity: 544 kg per set of four, 1200 lb per set
• Load Height: 5-1/8 inches, 130 mm
• Mounting Type: Plate
• Screw Centers: Two and three-fourths inches, three and one-fourth inches, 70 mm, 83 mm
• Material: Epoxy resin wheel and hub
• Temperature Range: 260 °C maximum, 500 °F maximum
