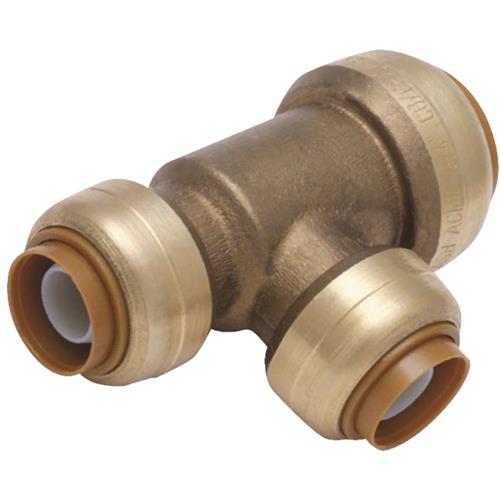

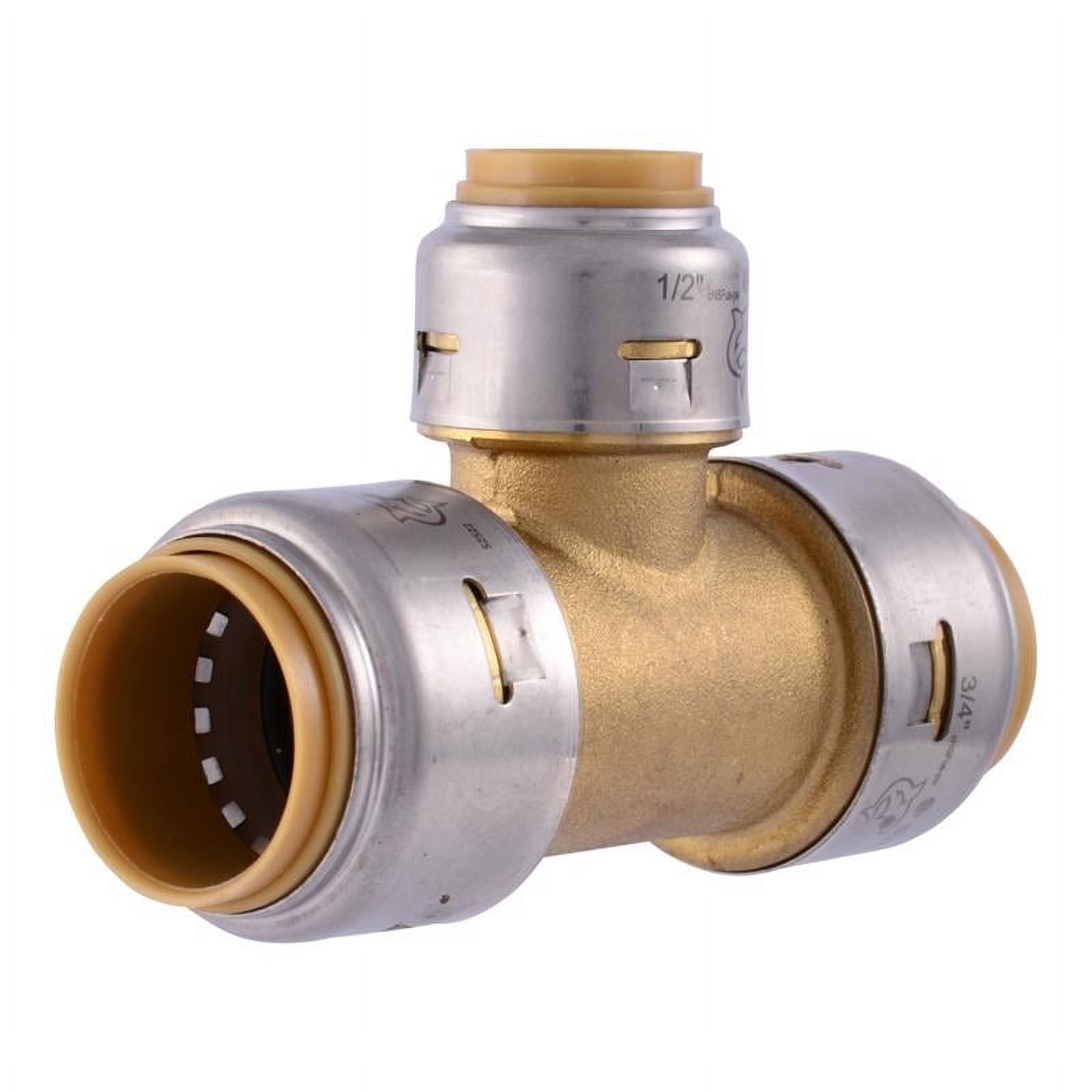

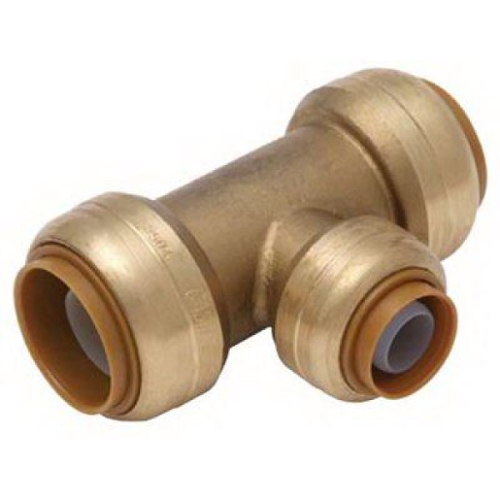

Cash-Acme UR412A Reducing Tee Brass Fitting (0.75 x 0.75 x 0.5 in)

Product Description

The Cash-Acme UR412A is a lead-free brass reducing tee push-to-connect fitting designed to join pipes of different sizes. It provides tool-free installation without soldering, clamps, unions, or glue and creates watertight connections compatible with PEX, copper, CPVC, PE-RT, and HDPE. The fitting is reusable and rated for a maximum pressure of 200 psi.

• Lead-free brass construction for corrosion resistance and durability
• Push-to-connect installation compatible with PEX, copper, CPVC, PE-RT, and HDPE; no soldering or special tools required
• Reducing tee design for 0.75 x 0.75 x 0.5 in connections; reusable and provides watertight seals; max pressure 200 psi

Product Highlights

Push-to-connect reducing tee for joining different pipe sizes; lead-free brass; reusable with 200 psi maximum pressure rating.

Product Information

Standard Information

• Brand: CASH-ACME
• Manufacturer Part Number: UR412A
• Country of Origin: Australia

Technical Specifications

• Brand: Cash-Acme
• Manufacturer Part Number: UR412A
• Model: UR412A
• Product Type: Reducing tee push-to-connect fitting
• Size: 0.75 x 0.75 x 0.5 in (3/4 in x 3/4 in x 1/2 in)
• Connection Type: Push-to-connect
• Compatible Pipe Types: PEX, copper, CPVC, PE-RT, HDPE
• Material: Lead-free brass (lead-free DZR brass one-piece body)
• Pressure Rating: 200 psi
• Maximum Operating Temperature: 200 F
• Reusable: Yes (removable and reusable with disconnect tool)
• Rotatable: Yes (fully rotatable after installation)
• Retainer Design: Reinforced stainless steel locking retainer
• Body Construction: One-piece corrosion-resistant DZR brass
• Overall Length: 3.5 in
• Overall Width: 1.3 in
• Overall Height: 2.3 in
• Weight: 0.3 lb
• UPC: 697285059887
• Package Type: Individual bag
• Package Contents: One lead-free brass reducing tee fitting
• Country of Origin: Australia
• Certifications: Listed for U.S. and Canadian plumbing codes
