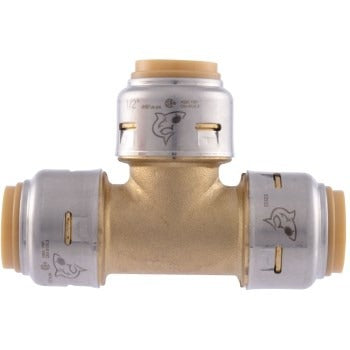

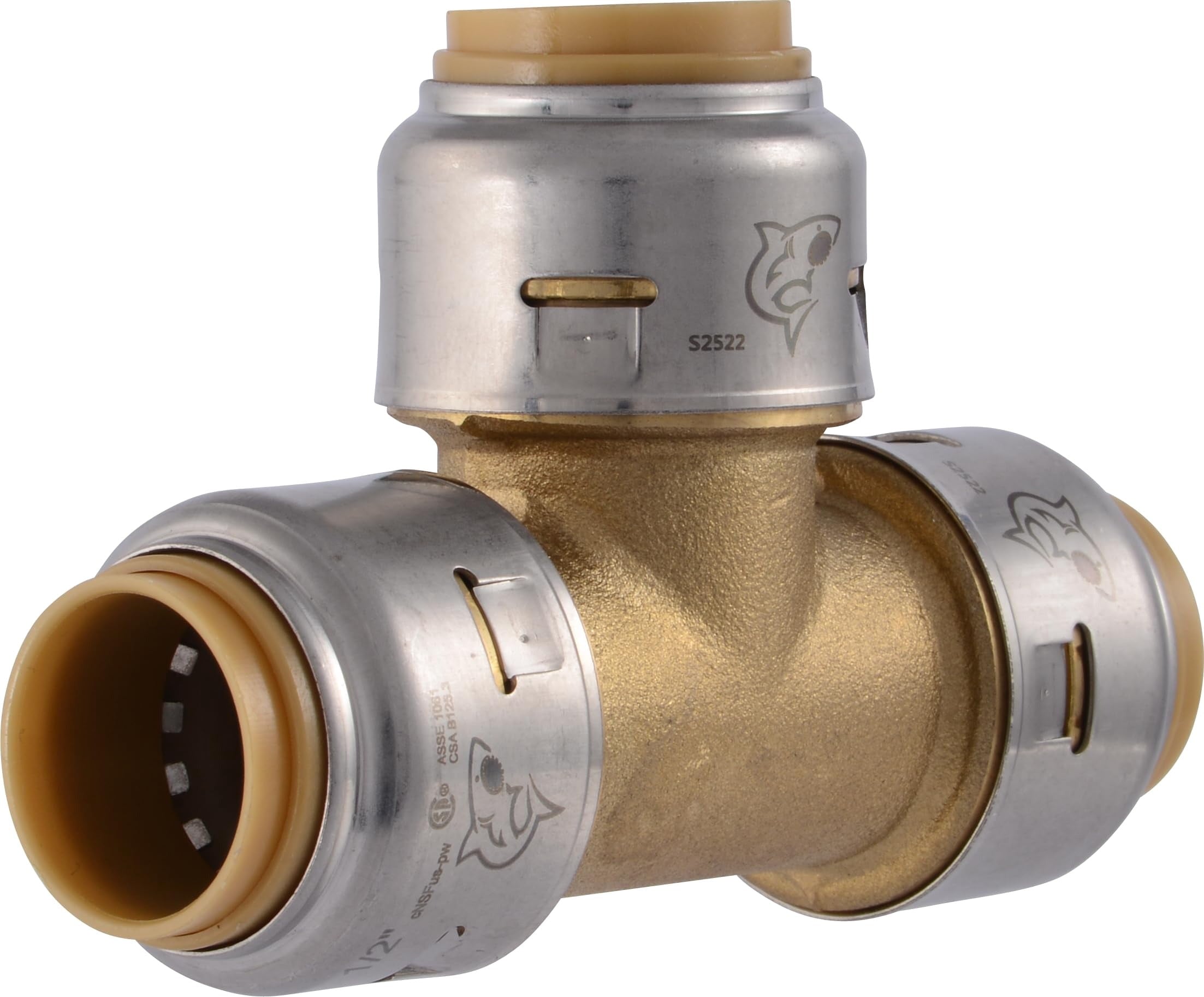

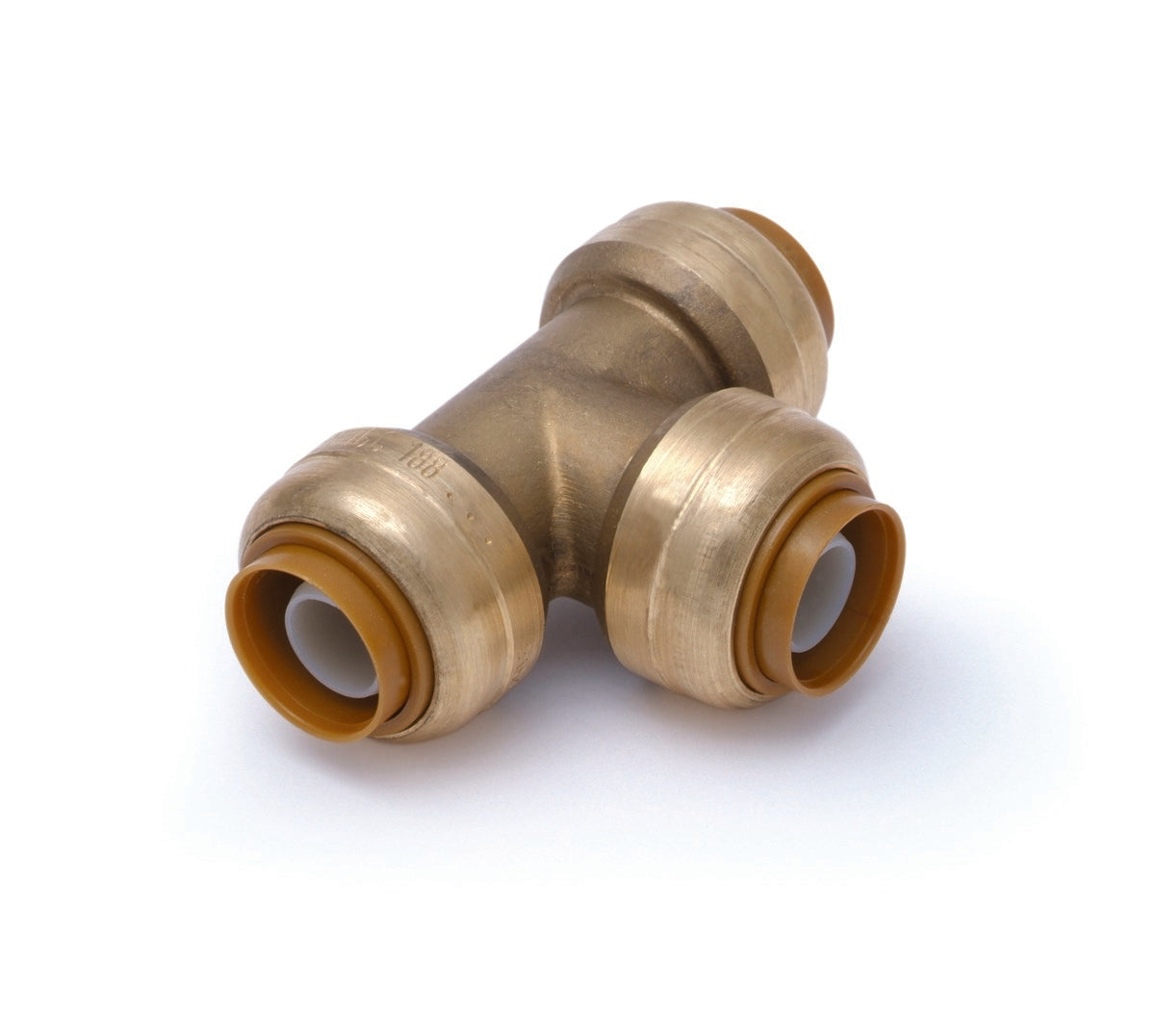

Cash Acme UR362A Push-to-Connect Brass Tee Fitting (0.5 x 0.5 x 0.5 in)

Product Description

The Cash Acme UR362A is a 0.5 x 0.5 x 0.5 in push-to-connect brass tee fitting designed for quick, tool-free connections between same-sized PEX, copper, CPVC, PE-RT, and SDR-9 HDPE pipe. Constructed from forged DZR brass with a reinforced stainless steel collar, it is lead-free and rated for temperatures up to 200 F and working pressures up to 250 PSI. Installation requires no soldering or glue.

• Forged DZR brass body with reinforced stainless steel collar for secure push-to-connect installation
• Compatible with PEX, copper, CPVC, PE-RT, and SDR-9 HDPE; no PEX tube liner needed with copper/CPVC
• Rated to 200 F, 250 PSI working pressure and 2000 PSI maximum burst rating; tool-free installation

Product Highlights

0.5 in push-to-connect tee for same-size piping; lead-free DZR brass; reinforced stainless steel collar; 200 F / 250 PSI rating

Product Information

Standard Information

• Brand: CASH-ACME
• Manufacturer Part Number: UR362A

Technical Specifications

• Brand: Cash Acme
• Manufacturer Part Number: UR362A
• Size: 0.5 x 0.5 x 0.5 in
• Type: Push-to-Connect Tee Fitting
• Connection Type: Push-to-Connect
• Compatible Materials: PEX, copper, CPVC, PE-RT, SDR-9 HDPE
• Material: Forged DZR brass with reinforced stainless steel collar
• Lead Free: Yes
• Maximum Temperature: 200 F
• Max Working Pressure: 250 PSI
• Maximum Burst Rating: 2000 PSI
• Installation: Push-to-connect; no soldering or glue required
• Rotatable: Yes (rotatable after assembly)
• Removable / Reusable: Yes (removable with disconnect clip)
• Certifications: NSF/ANSI 61; NSF/ANSI 372; UPC; IPC; cUPC
• Series: SharkBite MAX
• Application: Potable water distribution and hydronic heating
