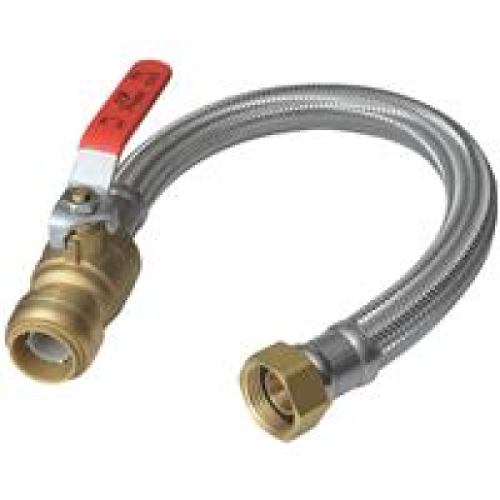

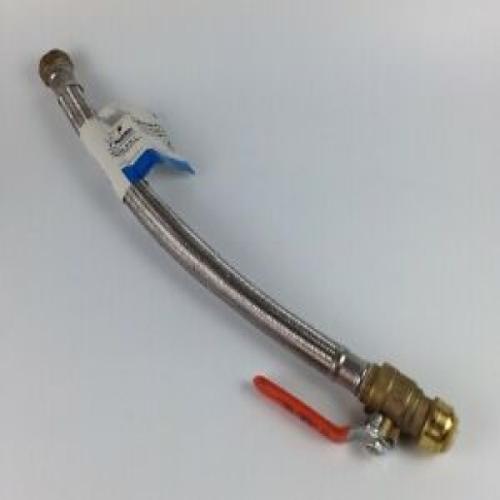

CASH-ACME UR3088FX18BV Cash Acme SharkBite Water Heater Connector

Product Description

The CASH-ACME UR3088FX18BV is a versatile water heater connector designed for reliable performance. It features a three-fourths inch push-fit connection on one end and a three-fourths inch female iron pipe connection on the other. This connector is compatible with PEX, copper, CPVC, and PE-RT pipe.

• Flexible braided construction for easy installation.
• Integrated ball valve for effective shut-off.
• Lead-free and certified for safe drinking water.

Product Highlights

The connector provides a maximum pressure rating of two hundred psi and operates effectively in temperatures ranging from thirty-two to two hundred degrees Fahrenheit.

Product Information

Standard Information

• Brand: CASH-ACME
• Product Number: UR3088FX18BV

Technical Specifications

• Nominal Size: 3/4 inch x 3/4 inch
• End Style: Flex Hose x SharkBite Ball Valve
• Pressure Rating: 200 psi
• Temperature Rating: 32 - 200 degrees Fahrenheit
• Material: EPDM Inner Core, Brass Nut
• Insert Length: 1-1/8 inches
• Overall Length: 18 inches
• Water Connection: 3/4 inch push-fit x 3/4 inch FNPT
• Valve Type: Ball
• Product Depth: 1.43 inches
• Product Height: 2.38 inches
• Product Weight: 1.036 pounds
• Product Width: 18.125 inches
• Country of Origin: CN
