CASH-ACME UR3016 3/4-Inch Slip Coupling

Product Description

The CASH-ACME UR3016 is a three-fourth inch slip coupling used in plumbing. It is made from brass and designed to connect copper, CPVC, and PEX pipes. The push-fit system allows for easy connections without the need for soldering or glue. This coupling is ideal for heating applications and supports maintenance with a disconnect tool for repairs. Its compact design helps in tight spaces.

• Connects copper, CPVC, and PEX pipes.

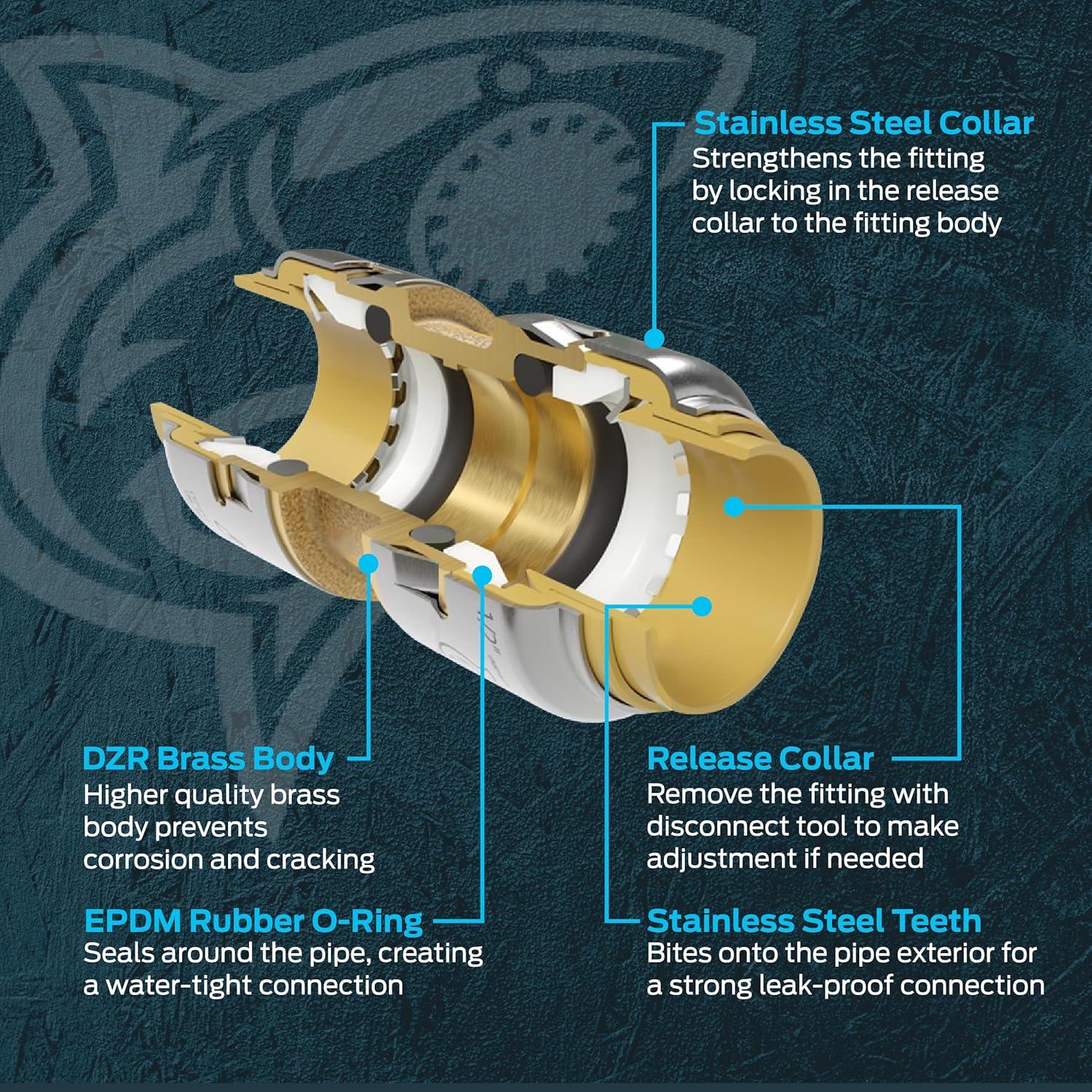

• Features a push-fit connection system for quick installation.
• Suitable for heating applications and easy leak repairs.

Product Highlights

The CASH-ACME UR3016 is a reliable choice for various plumbing projects.

Product Information

Standard Information

• Brand: CASH-ACME
• MPN: UR3016

Technical Specifications

• Material: Brass
• Nominal Size: 3/4 inches
• Fitting/Connector Type: Coupling
• Fitting System Compatibility: Push Fit
• Application: Heating
• Pressure Rating: 200 psi
• Temperature Rating: 200 degrees Fahrenheit
• Standards/Approval: ASSE 1061, NSF/ANSI 14, NSF/ANSI 61
• Warranty: 25 years limited
• Tubing Compatibility: OD Controlled Copper, CPVC
• PEX Size: 3/4
• Insertion Depth: 1-1/8
• Dimensions: 1.355 inches diameter x 4.42 inches length
