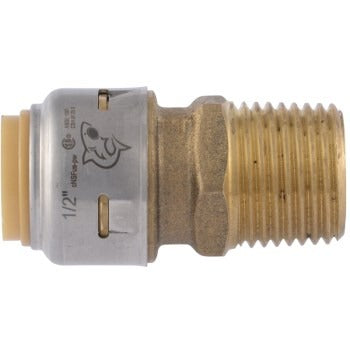

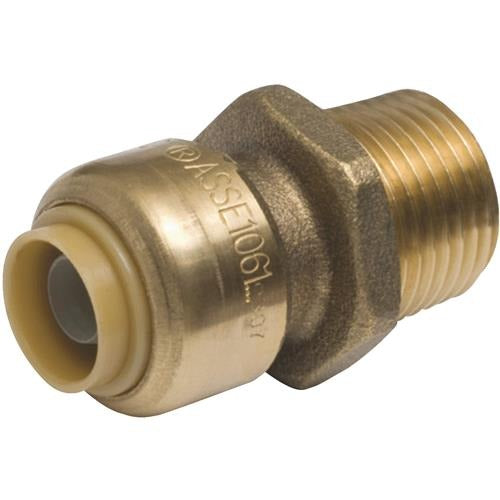

Cash-Acme UR120A SharkBite Max MNPT Connector 1/2 in x 1/2 in

Product Description

Cash-Acme UR120A is a SharkBite Max push-to-connect male NPT connector that provides an instant transition between push-fit tubing and 1/2 in male NPT threaded fittings. The fitting features a DZR lead-free brass body and an enhanced stainless steel retainer to reduce insertion effort and increase strength. It is compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9, rated to 200 °F and 250 PSI, and can be installed on wet lines and pressure tested immediately. Suitable for potable water and hydronic heating systems.

• DZR lead-free brass body with enhanced stainless steel retainer for reduced insertion effort and increased strength
• Push-to-connect x 1/2 in MNPT connection compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9; fitting can be rotated after installation
• Rated to 200 °F and 250 PSI; can be installed on wet lines and pressure tested immediately; suitable for potable water and hydronic heating

Product Highlights

1/2 in push-to-connect x 1/2 in male NPT adapter for potable water and hydronic heating; lead-free DZR brass, stainless steel retainer, 200 °F / 250 PSI, PEX/copper/CPVC/PE-RT/HDPE SDR-9 compatible.

Product Information

Standard Information

• Brand: CASH-ACME
• Manufacturer Part Number: UR120A
• Country of Origin: United States

Technical Specifications

• Brand: Cash-Acme
• Manufacturer Part Number: UR120A
• Model: UR120A
• Series: SharkBite Max
• Item Number: 9W7I2E
• UPC: 697285047853
• Size: 1/2 in x 1/2 in
• Connection Type: Push-to-Connect x 1/2 in MNPT (male NPT)
• Material: DZR lead-free brass
• Retainer Material: Stainless steel
• Compatible Pipe Types: PEX, copper, CPVC, PE-RT, HDPE SDR-9
• Maximum Pressure: 250 PSI
• Maximum Temperature: 200 °F
• Fitting Type: Male adapter / MNPT connector
• Certifications: NSF/ANSI 61; NSF/ANSI 372; ASSE 1061; AB1953; ANSI
• Country of Origin: United States
• Package Quantity: 1
• Unit of Measure: Each
