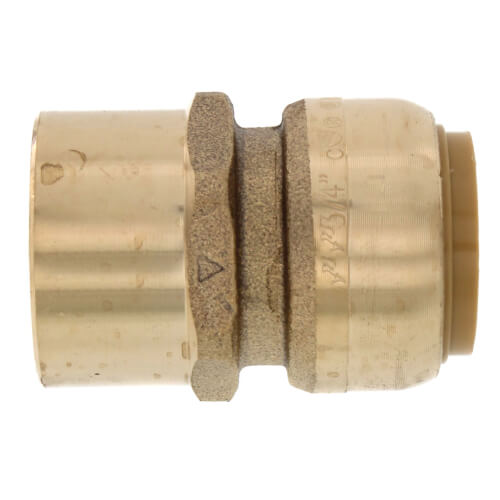

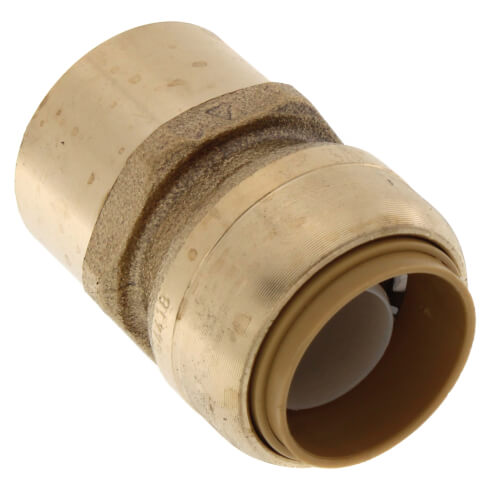

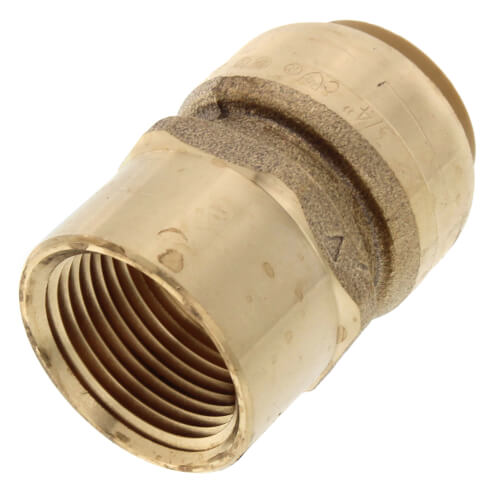

CASH-ACME UR088 3/4-in Push-Fit x 3/4-in FNPT Straight Connector

Product Description

The CASH-ACME UR088 is a reliable straight connector. It features a push-fit connection for easy installation on one end and a female National Pipe Thread (FNPT) adapter on the other. This design allows for quick and secure pipe connections without needing soldering or glue. The connector works with copper, PEX, CPVC, and PE-RT pipes, making it versatile for various plumbing applications.

• Push-fit connection on one end.
• Compatible with multiple pipe materials.
• Pressure rated for up to 200 PSI.

Product Highlights

This connector is efficient for use in heating systems and plumbing projects.

Product Information

Standard Information

• Fitting/Connector Type: Connector
• End Style: Push-Fit x FNPT

Technical Specifications

• Nominal Size: 3/4 in
• Size: 0.75 x 0.75 in
• Thread Size: 3/4
• Material: Brass
• Application: Heating
• Pressure Rating: 200 psi
• Max Temperature: 200 degrees F
• Fitting System Compatibility: Push Fit
• Tubing Compatibility: OD Controlled Copper, PEX, CPVC
• Insertion Depth: 1-1/8 in
• Weight: 0.27 lbs
• Lead Free: Yes
• Standards Met: NSF
• Warranty: 25 Year
• Thread Type: Female
• Domestic/Import: Import
