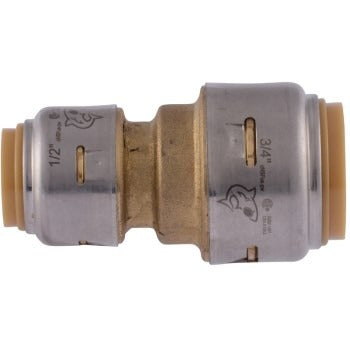

Cash-Acme UR058A SharkBite Max Reducing Coupling (1/2 inches x 3/4 inches)

Product Description

The Cash-Acme UR058A SharkBite Max reducing coupling is a push-to-connect fitting that transitions between 1/2" and 3/4" pipe sizes. It connects PEX, copper, CPVC, PE-RT, and HDPE SDR-9 without tools, crimping, soldering, or glue, and can be installed on wet lines and pressure tested immediately. The fitting features a DZR lead-free brass body with a stainless steel retainer and is rated to 200°F and 250 psi.

• Push-to-connect installation; no tools, crimping, soldering, or glue required; installs on wet lines and can be pressure tested immediately
• DZR lead-free brass body with stainless steel retainer; rated to 200°F and 250 psi
• Connects 1/2" to 3/4" pipes in any combination of PEX, copper, CPVC, PE-RT, or HDPE SDR-9; Max design halves insertion effort

Product Highlights

Push-to-connect reducing coupling for 1/2" x 3/4" pipes; DZR lead-free brass, stainless steel retainer; 200°F, 250 psi

Product Information

Standard Information

• Brand: CASH-ACME
• Manufacturer Part Number: UR058A

Technical Specifications

• Brand: CASH-ACME
• Manufacturer Part Number: UR058A
• Product Name: SharkBite Max reducing coupling
• Size: 1/2" x 3/4"
• Connection Type: Push-to-connect
• Compatible Pipe Types: PEX, copper, CPVC, PE-RT, HDPE SDR-9
• Body Material: DZR lead-free brass
• Retainer Material: Stainless steel
• Temperature Rating: 200°F
• Pressure Rating: 250 psi
• Tube Liner Requirement: Not required for PEX
• Design: Max design; half the insertion effort of first-generation SharkBite fittings
• Installation: Can be installed on wet lines and pressure tested immediately
• UPC: 697285036369
• Item Number: 38H8VR
• Unit: 1 Each
• Pack Quantity: 1 per pack
