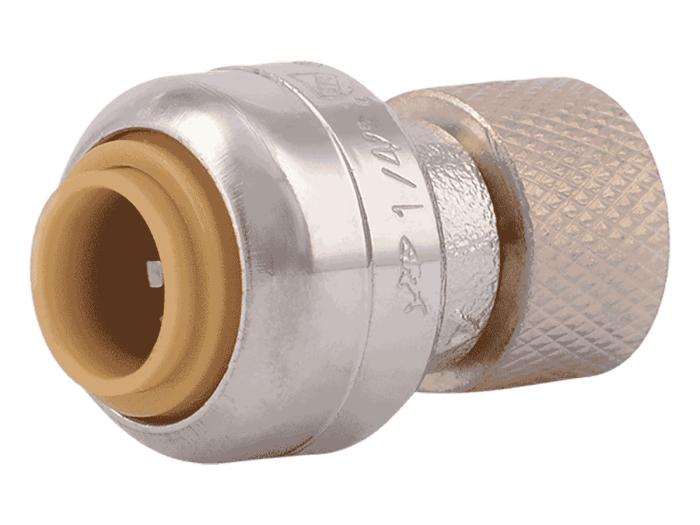

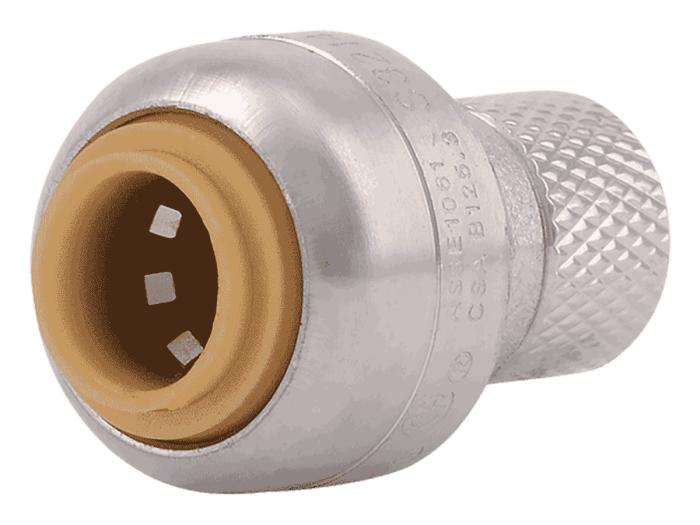

CASH-ACME U3523LF Compression Adapter 1/4 in. (3/8 in. OD) x 3/8 in. Comp. Nut

Product Description

The CASH-ACME U3523LF compression adapter connects 1/4 inch (3/8 inch OD) PEX pipe to fixtures and appliances that require a 3/8 inch compression connection, like faucets, refrigerators, and humidifiers. This adapter features a push-to-connect design for quick installation, making it suitable for tight spaces. It effectively joins copper, CPVC, and PEX and can be simply removed and reused.

• Compatible with 1/4 inch (3/8 inch OD) PEX pipe.
• Installation requires no special tools, crimping, glue, or soldering.
• Lead-free construction for safe drinking water applications.

Product Highlights

The CASH-ACME U3523LF is designed for easy and effective water connections in various applications.

Product Information

Standard Information

• Brand: CASH-ACME
• Model Number: U3523LF

Technical Specifications

• SKU: U3523LF
• Pipe Size: 1/4 inch (3/8 inch OD) x 3/8 inch Comp. Nut
• Lead Free: Yes
• Approvals & Listings: ASSE 1061, CSA B125.3, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61
• Material: Brass
• Connector Type: Adapter
• Exterior Finish: Brass
• Thread Type: NPT
• Installation Method: Push-Fit
• Temperature Range: 35 - 200 Degrees Fahrenheit
• Usage: For potable water and hydronic heating applications only
• Warranty Description: 25 year limited warranty
• End Connection: Push-Fit x Compression Nut
