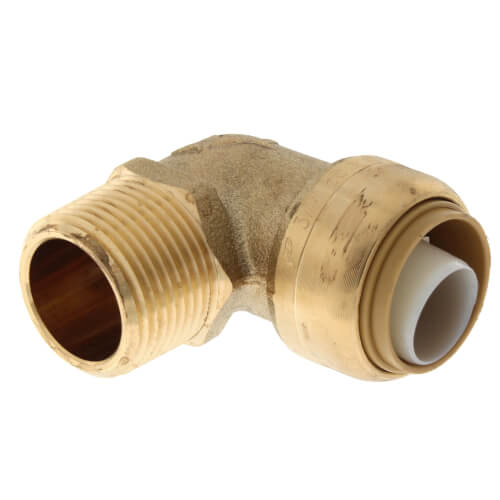

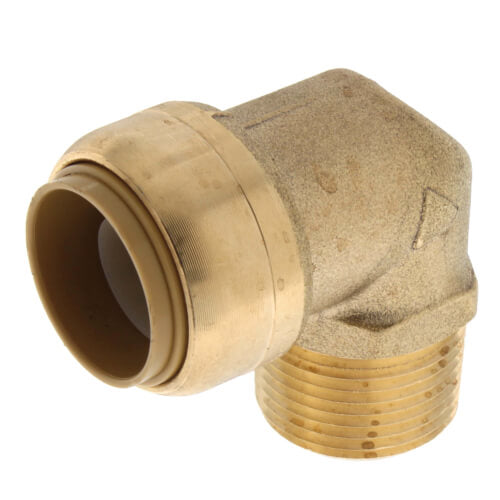

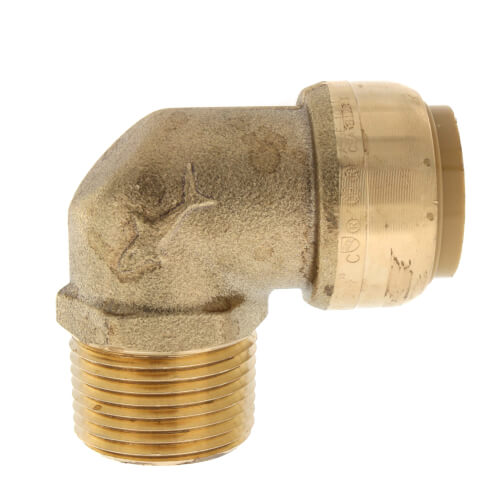

CASH-ACME U286LF 3/4 Sharkbite x 3/4 MNPT 90 Degree Elbow

Product Description

The CASH-ACME U286LF is a lead-free elbow fitting for plumbing and heating applications. This fitting has a three-quarter inch Sharkbite push-fit connection on one end and a three-quarter inch male National Pipe Thread (MNPT) connection on the other end, forming a ninety-degree angle. It is designed to work with OD controlled copper, CPVC, or PEX pipe. The product meets a maximum pressure of 200 PSI and a maximum temperature of 200 degrees Fahrenheit.

• Features a push-fit connection for easy installation; no soldering needed.
• Made from DZR brass for enhanced corrosion resistance.
• Certified to ANSI/NSF-61 for safe use in potable water systems.

Product Highlights

This fitting simplifies plumbing tasks with its user-friendly design and durable materials.

Product Information

Standard Information

• Brand: Cash Acme
• MPN: U286LF

Technical Specifications

• Size: three-quarter inch
• Material: brass
• Application: heating, plumbing
• Max Pressure (PSI): 200
• Standards Met: NSF
• Tubing Compatibility: OD controlled copper, PEX, CPVC
• Max Temp (F): 200 degrees Fahrenheit
• Thread Size: three-quarter inch
• Thread Type: male
• Insertion Depth: one and one-eighth inches
