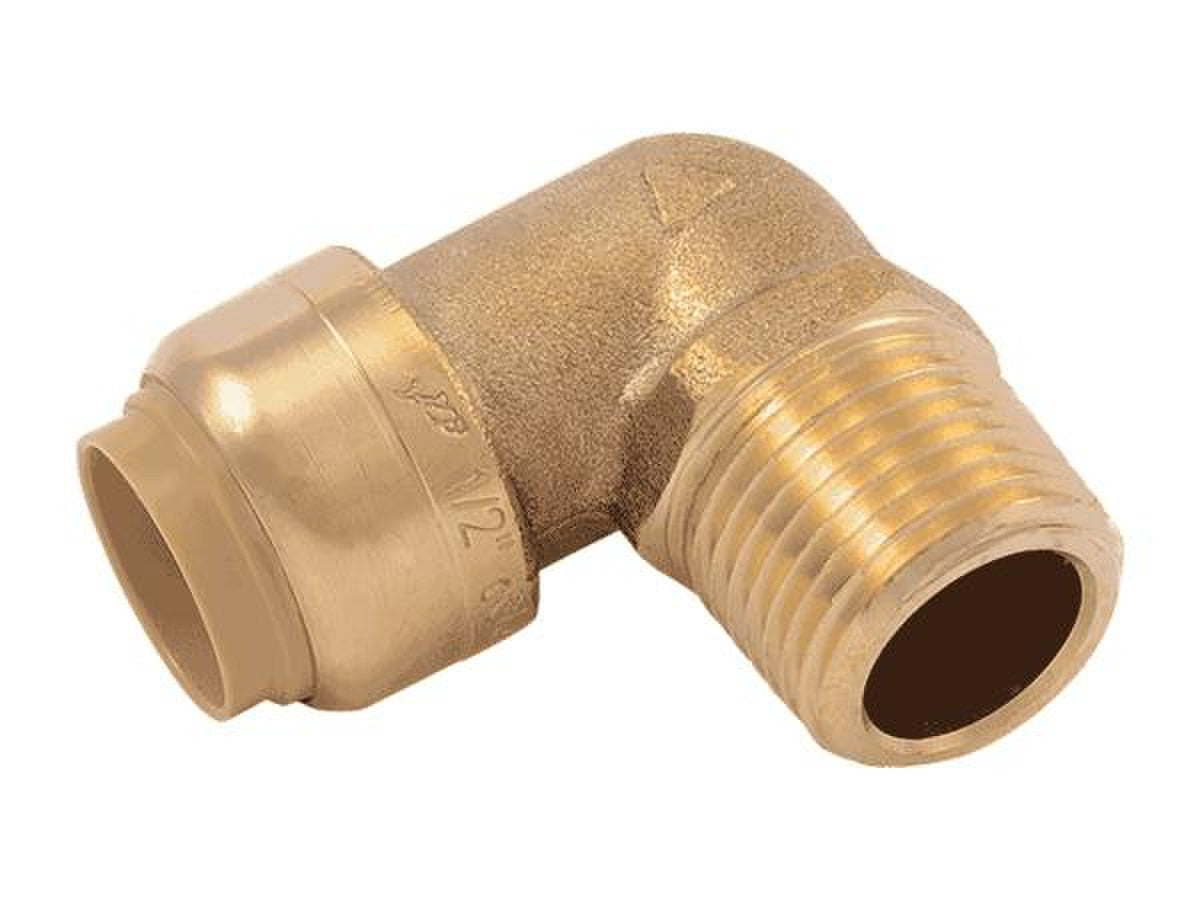

CASH-ACME U280LF Brass Push Male Adapter Elbow 1/2 x 1/2

Product Description

The CASH-ACME U280LF is a lead-free brass push male adapter elbow. This fitting is designed to connect different pipe types. You can use it with PEX, copper, CPVC, PE-RT, or SDR-9 HDPE pipes. It offers a male National Pipe Thread (MNPT) connection. The push-to-connect feature allows for quick installation without the need for welding, crimping, or gluing.

• Connects copper, PEX, and CPVC pipes.
• Certified for a maximum pressure of 200 PSI.
• Approved for use in both underground and behind-wall applications.

Product Highlights

This elbow fitting simplifies plumbing installations for residential or commercial use.

Product Information

Standard Information

• Brand: CASH-ACME
• MPN: U280LF

Technical Specifications

• Type: Male Elbow
• Connection Type: SharkBite x MNPT
• Size: 1/2 x 1/2
• Maximum Temperature: 200 °F
• Maximum Pressure: 200 PSI
• Body Material: DZR Lead Free Brass
• O-ring Material: EPDM
• Grab Ring Material: Stainless Steel
• Tube Support Liner Material: Polysulfone
• Approvals & Listings: ASSE 1061, CSA B125.3, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61, ASTM E84, CAN/ULC S102.2, ASTM E119, CAN/ULC S101, UL 263
