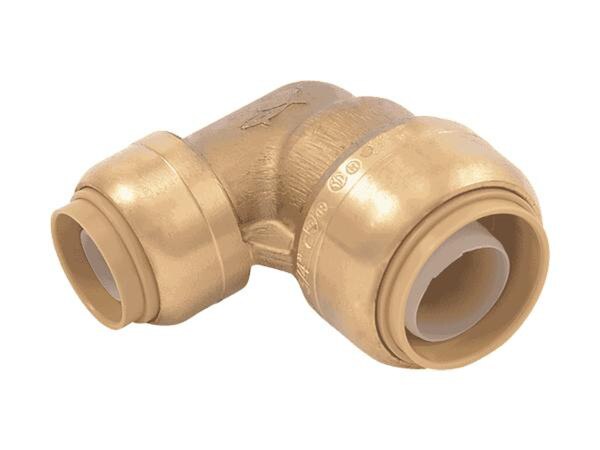

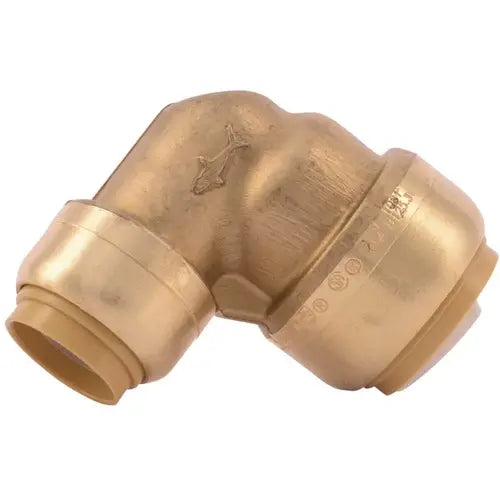

CASH-ACME U274LF Cash Acme SharkBite Reducing Elbow 90 Degree 3/4 x 1/2 Inch

Product Description

The Cash Acme U274LF is a 90-degree reducing elbow designed to connect three quarter inch and one half inch pipes. This product utilizes a push-to-connect design, facilitating quick connections without the need for soldering, clamps, or glue. It is compatible with various pipe types including copper, CPVC, PEX, PE-RT, and SDR-9 HDPE.

• Push-to-connect design for easy installation.
• Constructed from lead-free DZR brass for durability.
• Approved for potable water and hydronic heating applications.

Product Highlights

This reducing elbow is suitable for underground installations and can be used behind walls without requiring access panels. It ensures reliable performance in potable water and hydronic heating systems.

Product Information

Standard Information

• Brand: CASH-ACME
• MPN: U274LF

Technical Specifications

• Series: Series U
• Angle: 90 degrees
• Nominal Size: 3/4 x 1/2 inch
• Inlet Diameter: 0.5 inches
• Fitting 1 Size: 1/2 inch
• Fitting 2 Size: 3/4 inch
• Maximum Pressure: 200 psi
• Temperature Rating: 200 degrees F
• Body Material: DZR Lead Free Brass
• O-ring Material: EPDM
