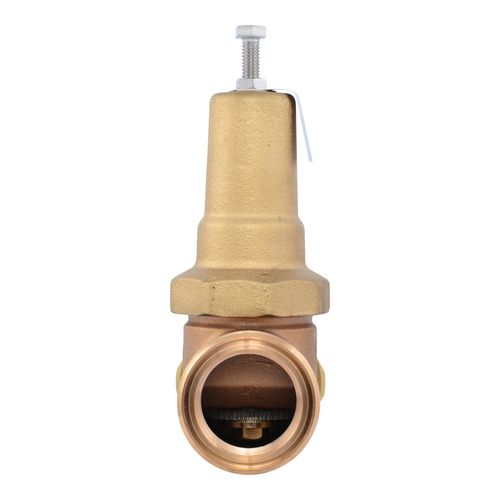

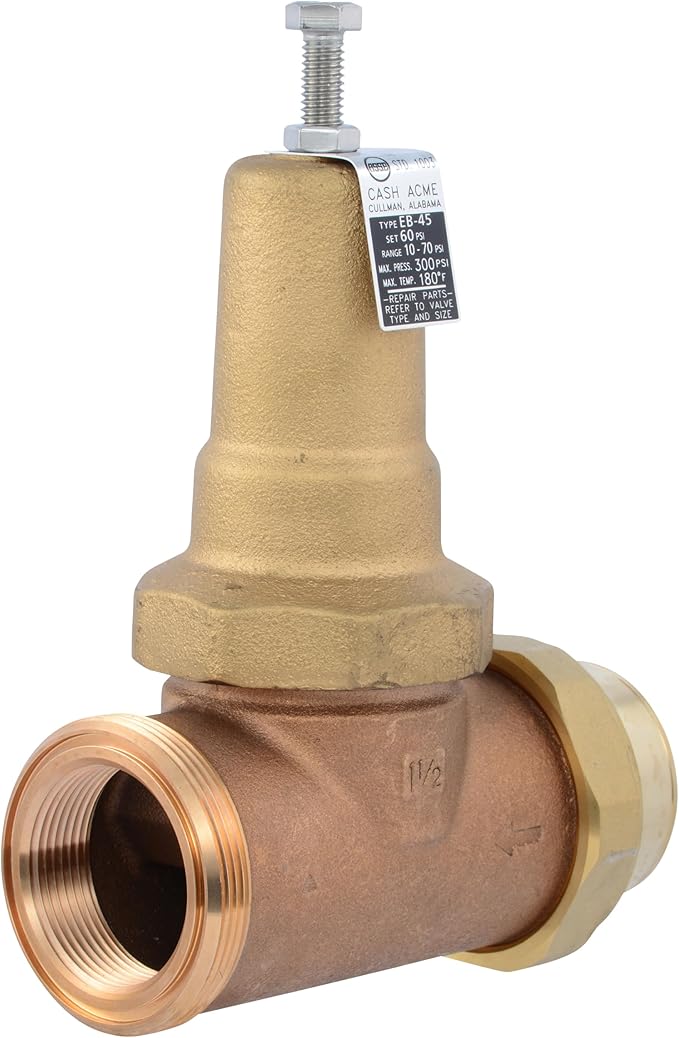

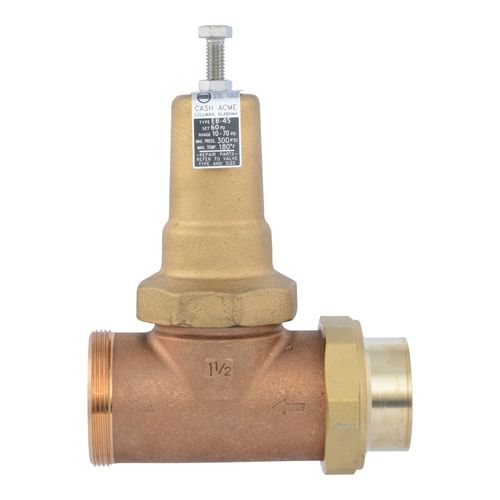

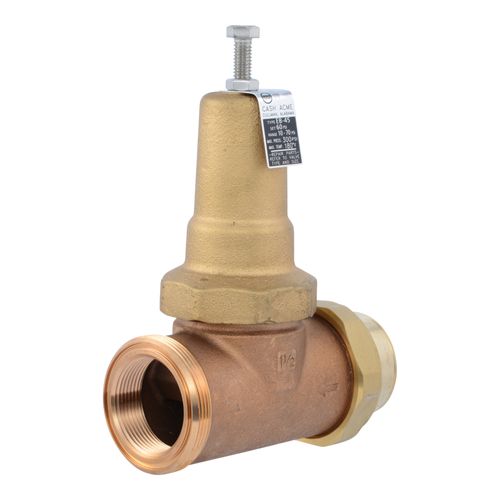

CASH ACME PVA41M-SUTH-60 EB45 Single Union Threaded Pressure Regulating Valve 1-1/2 inches Replacement MPN

Product Description

The CASH ACME PVA41M-SUTH-60 is a lead-free pressure regulating valve designed to control water pressure. This valve combines the efficiency of a high-end cartridge valve with the cost-effective design of a traditional regulator. It is factory preset to sixty pounds per square inch but can be adjusted within a range of ten to seventy psi. Key features include an integrated back-check mechanism that helps ensure smooth operation.

• Brass body construction with a metal top
• Maximum operating pressure of three hundred psi
• Easy installation with a threaded connection

Product Highlights

This valve is suitable for various plumbing applications where water pressure regulation is necessary. It is made from durable materials and is engineered for reliable performance.

Product Information

Standard Information

• Lead Free: Yes
• Max Temperature: 180 degrees Fahrenheit

Technical Specifications

• Material: Brass
• Outlet Type: FNPT
• Max Pressure: 300 psi
• Connection Type: Threaded
• Size: 1-1/2 inches
• Inlet Type: Union FNPT
• Exterior Finish: Brass, Lead-Free Coated
• Maximum Operating Pressure: 70 pounds per square inch
• Number of Ports: 2
• Specification Met: NSF, Lead-Free
• Manufacturer: Reliance Worldwide Corporation
• UPC: 697285111141
• Part Number: PVA41M-SUTH-60
• Item Model Number: PVA41M-SUTH-60
• Item Package Quantity: 1
• Included Components: EB-45 NPTF Single Union
