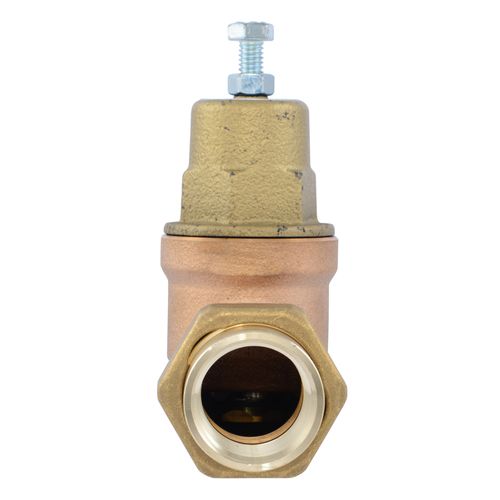

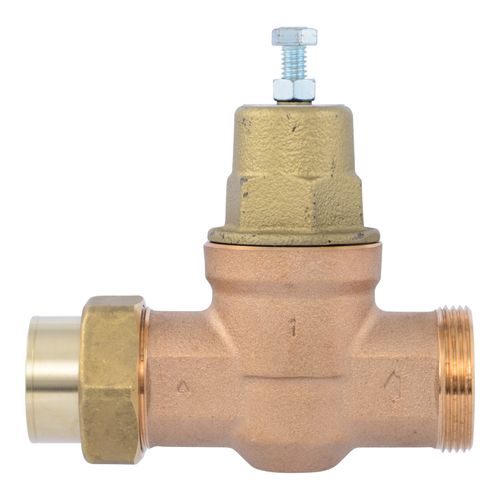

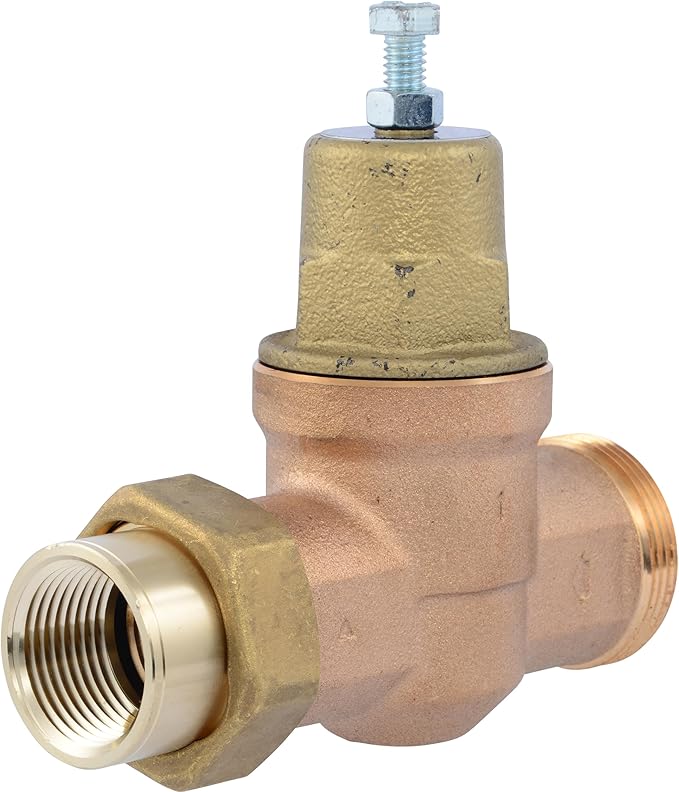

CASH ACME PVA20M-SUTH-60 EB45 Pressure Regulating Valve 60 PSI

Product Description

The CASH ACME PVA20M-SUTH-60 EB45 pressure regulating valve is designed for efficient regulation of downstream pressure in both commercial and residential water applications. Its half cartridge design balances performance and cost, making it a practical choice for various installations. This valve is factory set at sixty psi but allows adjustments between ten and seventy psi. It also features an integrated back-check for enhanced performance.

• Brass construction with a maximum pressure of four hundred PSI for durability.
• Threaded connection ensures a secure installation.
• Tamper-resistant design maintains the system pressure effectively.

Product Highlights

The valve is effective for controlling water pressure in plumbing systems and offers a reliable solution for pressure management.

Product Information

Standard Information

• Manufacturer: Reliance Worldwide Corporation
• Part Number: PVA20M-SUTH-60

Technical Specifications

• Inlet Type: Union FNPT
• Outlet Type: Union FNPT
• Max Pressure (PSI): 400
• Size: 1 inches
• Connection Type: Threaded
• Min Pressure (PSI): 10
• Pressure Range: 10 to 70 psi
• Material: Brass
• Lead Free: Yes
• Exterior Finish: Brass
• Inlet Connection Size: 1 inches
• Inlet Connection Type: National Pipe Tapered (NPT) Female
• Outlet Connection Type: NPT
• Maximum Operating Pressure: 60 Pound per Square Inch
• Number of Ports: 2
• Specification Met: NSF, ANSI 372
• UPC: 697285110861
