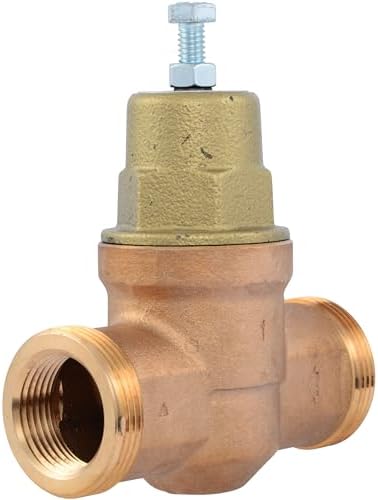

Cash Acme PVA20M-DTH-60 EB45 Pressure Regulating Valve 60 PSI

Product Description

The Cash Acme PVA20M-DTH-60 is a direct pressure regulating valve designed with a half cartridge structure. This design allows for straightforward access to the pressure adjusting screw. It is an inline valve with one-inch NPT threading that effectively regulates downstream pressure in both residential and commercial water systems.

• Features a half cartridge design for easy access to the pressure adjusting screw.
• Constructed from brass and stainless steel with robust polymer components.
• Adjustable pressure range of 10 to 70 PSI, suitable for various water services.

Product Highlights

This valve offers a tamper-resistant design that secures the desired system pressure, reducing the risk of accidental adjustments.

Product Information

Standard Information

• Brand: Cash Acme
• Material: Brass

Technical Specifications

• Inlet Connection Size: 1 inches
• Inlet Connection Type: NPT
• Outlet Connection Type: NPT
• Maximum Operating Pressure: 60 PSI
• Number of Ports: 2
• Outlet Connection Size: 1 inches
• Specification Met: NSF/ANSI 372
• Adjustable Pressure Range: 10-70 PSI
• Maximum Water Temperature: 180 degrees F
