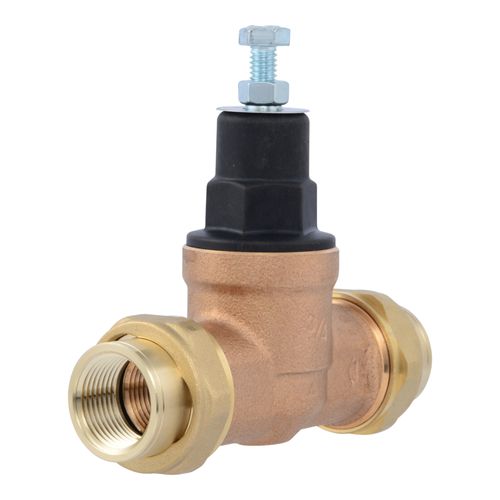

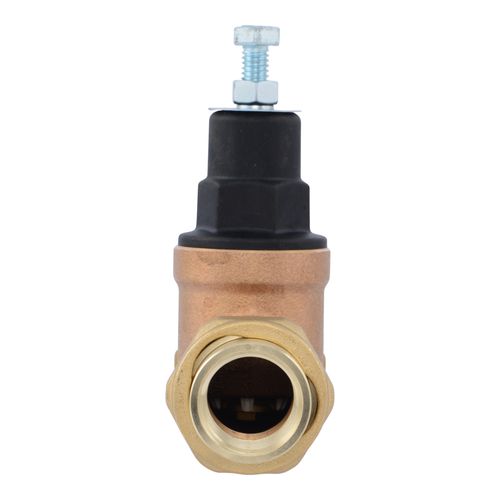

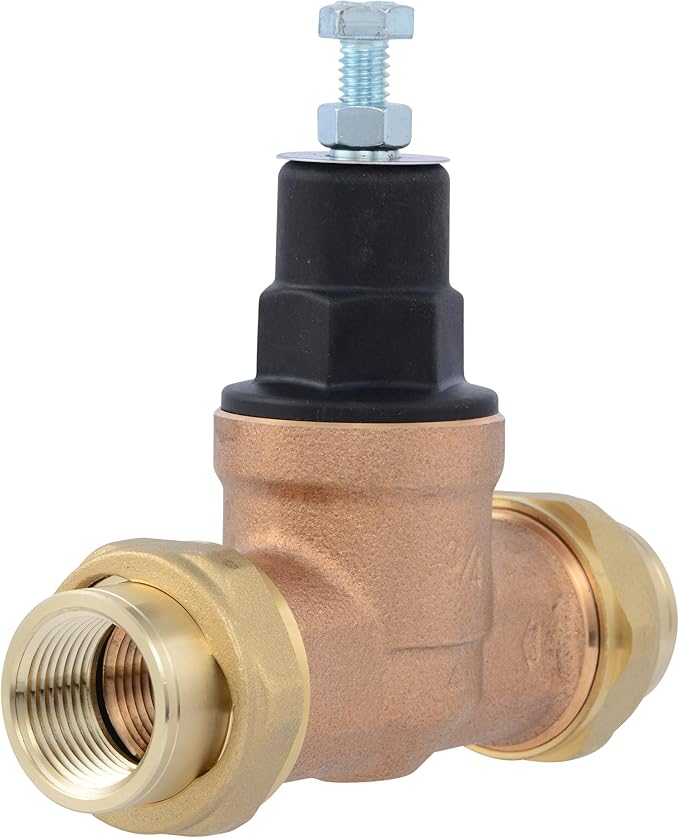

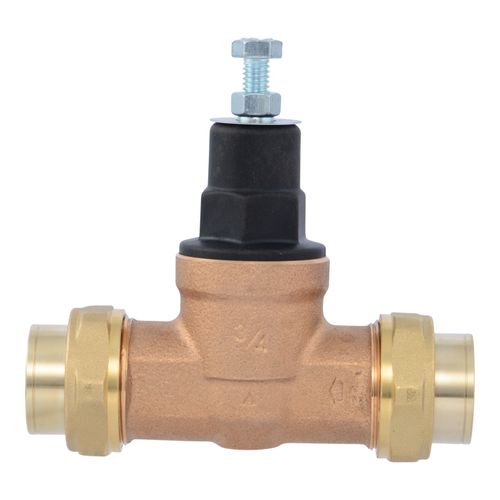

CASH ACME PVA16P-DUTH-60 Eb45 Pressure Regulating Valve 60 PSI

Product Description

The CASH ACME PVA16P-DUTH-60 is a lead-free EB45 water pressure regulating valve set at sixty PSI. It is adjustable between ten and seventy PSI for varying applications. The valve has a half cartridge design that simplifies maintenance while keeping a separate spring chamber and adjusting screw.

• Brass construction
• Maximum pressure of four hundred PSI
• Threaded connection

Product Highlights

This valve includes an integrated back-check feature. It is reliable for managing water pressure in plumbing systems.

Product Information

Standard Information

• Lead Free: Yes
• Maximum Temperature: One hundred eighty degrees Fahrenheit

Technical Specifications

• Outlet Type: Union FNPT
• Inlet Type: Union FNPT
• Size: Three-fourths inches
• Max Pressure: Four hundred PSI
• Connection Type: Threaded
• Material: Brass
• Number of Ports: Two
• Specification Met: NSF/ANSI 372
• Item Package Quantity: One
• Included Components: EB-45 NPTF Double Union
