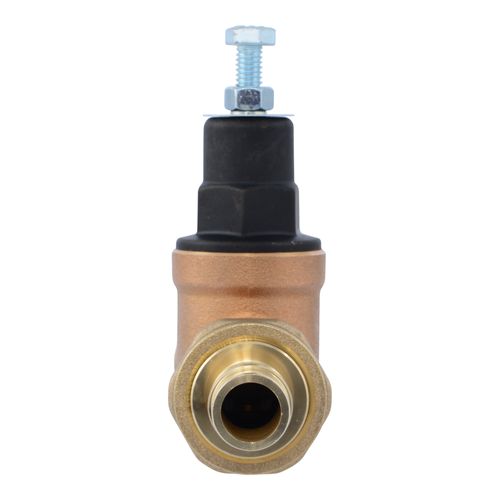

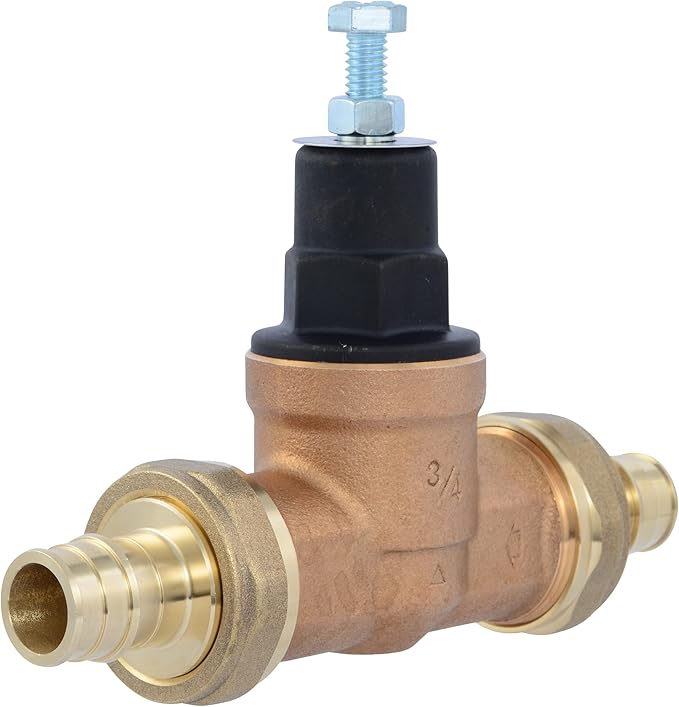

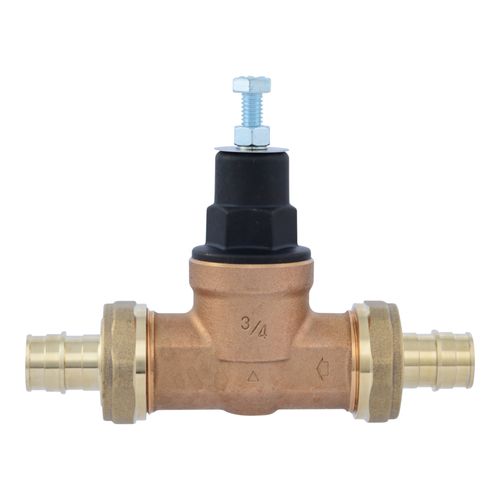

Cash Acme PVA16P-DUEX-60 3/4 inches Eb45 Double Union Cold Expansion Pressure Regulating Valve

Product Description

The Cash Acme PVA16P-DUEX-60 is a lead-free EB45 water pressure regulator designed for efficient flow management. It features a half cartridge design which combines the benefits of a cartridge valve's performance with the straightforward setup of a traditional regulator. This valve is factory set at sixty psi and can be adjusted between ten and seventy psi. It offers an integrated back-check feature for added reliability.

• Durable brass construction
• Maximum pressure rating of four hundred psi
• PEX expansion connection compatible

Product Highlights

This pressure regulating valve is ideal for plumbing systems that require reliable pressure management. It ensures optimal performance while maintaining safety and compliance with industry standards.

Product Information

Standard Information

• Manufacturer: Reliance Worldwide Corporation
• Part Number: PVA16P-DUEX-60
• Included Components: EB-45 Expansion Double Union

Technical Specifications

• Outlet Type: PEX Expansion
• Connection Type: PEX
• Material: Brass
• Max Pressure (PSI): 400
• Max Temperature (F): 180 degrees
• Lead Free: Yes
• Inlet Type: PEX Expansion
• Size: 3/4 inches
• Maximum Operating Pressure: 60 PSI
• Number of Ports: 2
• Specification Met: NSF/ANSI 372
• Item Package Quantity: 1
