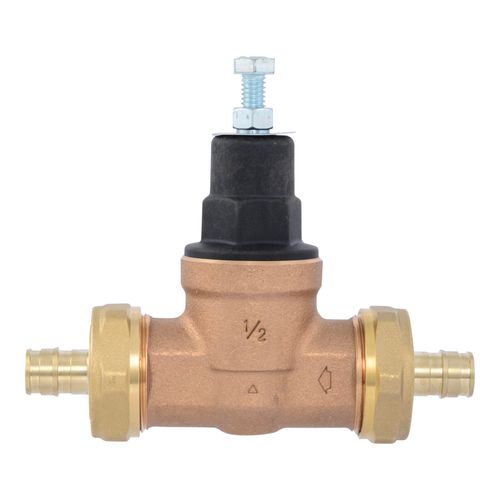

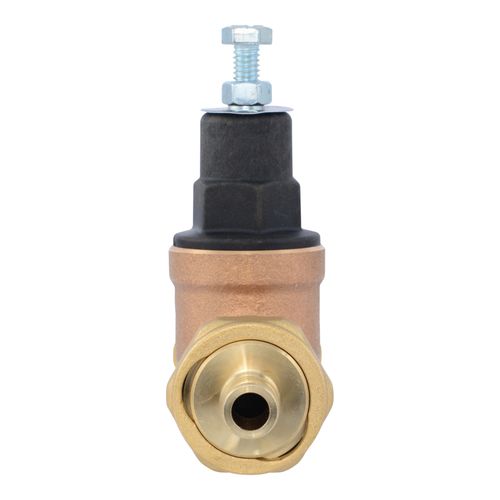

CASH ACME PVA08P-DUEX-60 EB45 Double Union Cold Expansion Pressure Regulating Valve 1/2 inches

Product Description

The CASH ACME PVA08P-DUEX-60 is a lead-free EB45 water pressure regulator designed for reliable performance. The half cartridge design is factory set at sixty psi and can be adjusted between ten to seventy psi for various applications. It includes an integrated back-check feature to prevent damage to your system if the pressure exceeds the incoming level. This valve is designed specifically for PEX connection and PEX expansion.

• Brass construction for durability
• Maximum pressure capacity of four hundred PSI
• Compatible with PEX connection and PEX expansion

Product Highlights

This product is ideal for maintaining consistent water pressure in PEX systems while ensuring safety with its back-check feature.

Product Information

Standard Information

• Connection Type: PEX
• Outlet Type: PEX Expansion

Technical Specifications

• Size: 1/2 inches
• Material: Brass
• Max Pressure (PSI): 400
• Inlet Type: PEX Expansion
• Lead Free: Yes
• Max Temp (°F): 180°F
• Maximum Operating Pressure: 60 PSI
• Item Package Quantity: 1
• Number of Ports: 2
• Specification Met: NSF/ANSI 372
