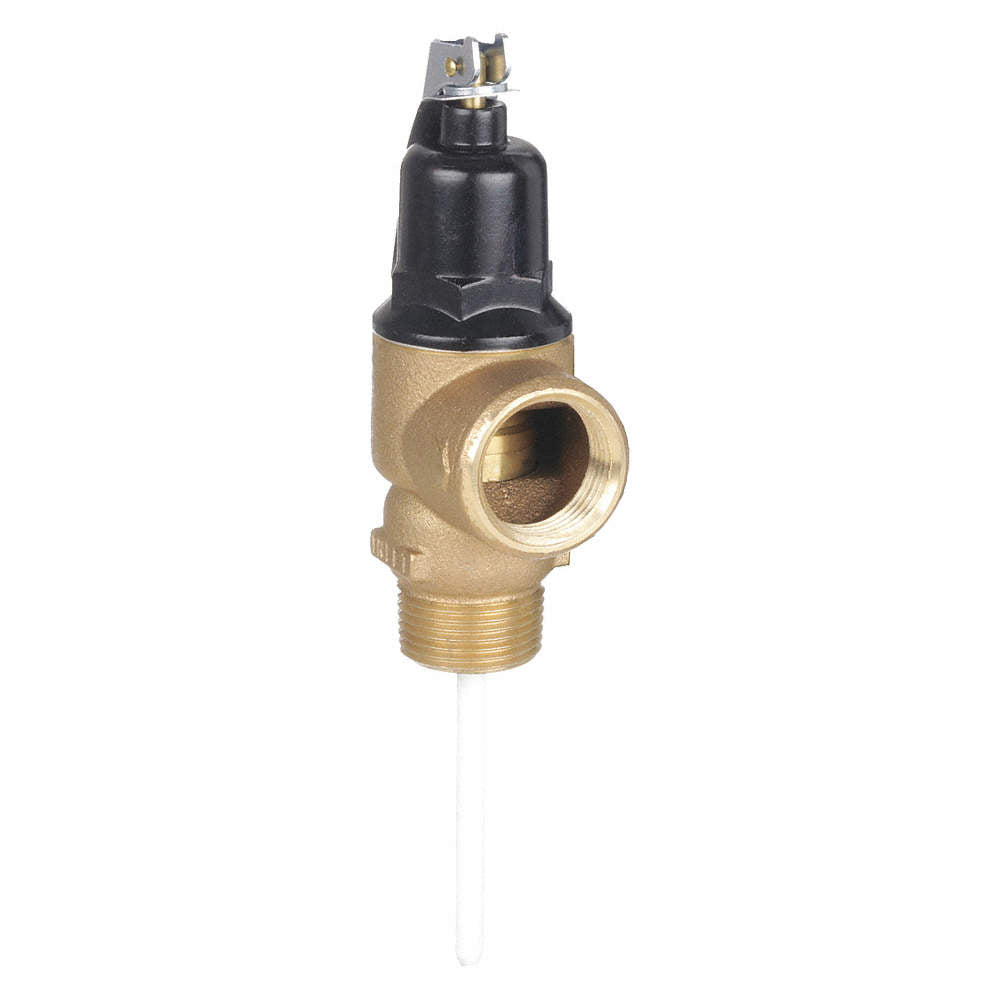

Cash Acme CM16938-0150 FVMX High Capacity Combination Temperature/Pressure Relief Valve 1 in, MNPT Replacement

Product Description

The CASH ACME CM16938-0150 FVMX high capacity combination temperature/pressure relief valve offers protection for domestic and commercial hot water heating devices. It handles more volume with one relief valve and is completely automatic, reseating after temperature or pressure relief. Well-suited for commercial applications, such as restaurants and hospitals.

• Offers high capacity protection for domestic and commercial hot water heating devices - handles more volume with just one relief valve
• Completely automatic - the valves reseat after either temperature or pressure relief
• The larger series valves are well suited for commercial applications - restaurants, hospitals, and laundries are no problem

Product Highlights

High capacity temperature/pressure relief valve for domestic and commercial hot water heating with automatic reseating.

Product Information

Standard Information

• Brand: CASH ACME
• Manufacturer Part Number: CM16938-0150
• Country of Origin: Domestic

Technical Specifications

• Body Material: Brass
• Domestic/Import: Domestic
• End Style: MNPT
• Media: Water
• Nominal Size: 1 in
• Pressure Rating: 150 psi
• Series: FVMX
• Softgoods Material: EPDM Diaphragm
• Temperature Rating: 210 deg F
• Type: High Capacity
• Outlet Type: FNPT
• Outlet Size: 1"
• Body Height: 6"
• Factory Set Pressure: 150 PSI
• Shank Length: Standard
• Body Width: 2-1/2"
• Inlet Type: MNPT
• Inlet Size: 1"
• Thermostat Length: 3 1/16 in
• BtuH: 2,155,000
• Max. Temp.: 210 Degrees F
• Auto Re-Seating: Yes
• Spring Material: Stainless Steel
• Standards: Certified ANSI Z21.22, CSA 4.4, Listed By ASME, CSA
• Country of Origin: United States
