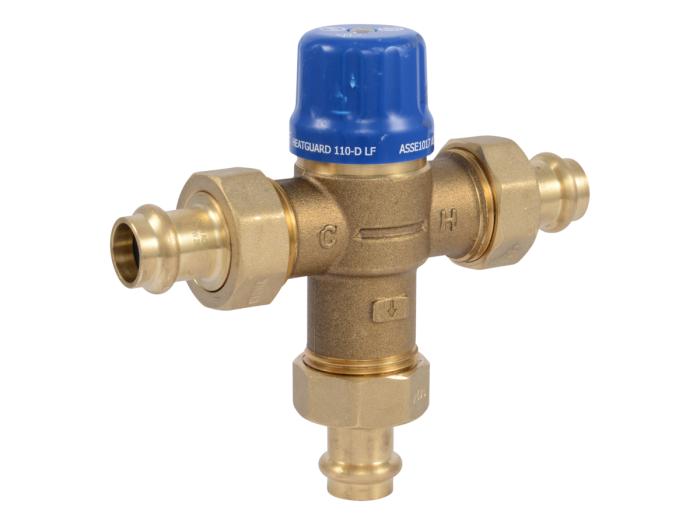

Cash Acme 25986 HG110-D Thermostatic Mixing Valve 1/2 in.

Product Description

The Cash Acme 25986 HG110-D is a thermostatic mixing valve designed for safety and efficiency. This valve ensures that water is delivered at a safe temperature of one hundred twenty degrees Fahrenheit or lower. It allows for the water heater to be set at a higher temperature of one hundred forty degrees Fahrenheit, which is necessary for eliminating legionella bacteria. The valve features an adjustable and lockable mechanism to prevent unauthorized changes to the temperature settings.

• Triple-listed thermostatic mixing valve
• Delivers water at a safe temperature
• Adjustable and lockable setting

Product Highlights

Product Information

Standard Information

• Brand: Cash Acme
• MPN: 25986

Technical Specifications

• SKU: 25986
• Size: 1/2 in.
• Description: HG110-D with Press Connections and Integral Checks
• Lead Free: Yes
• Factory Setting: 120 degrees F (49 degrees C)
• Common Applications: Commercial Hot Water Distribution, Domestic Hot Water Distribution
• Approvals & Listings: ASSE 1017, ASSE 1069, ASSE 1070/ASME A112.1070/CSA B125.70, CSA B125.3, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61, Listed by IAPMO, ASSE, and CSA
