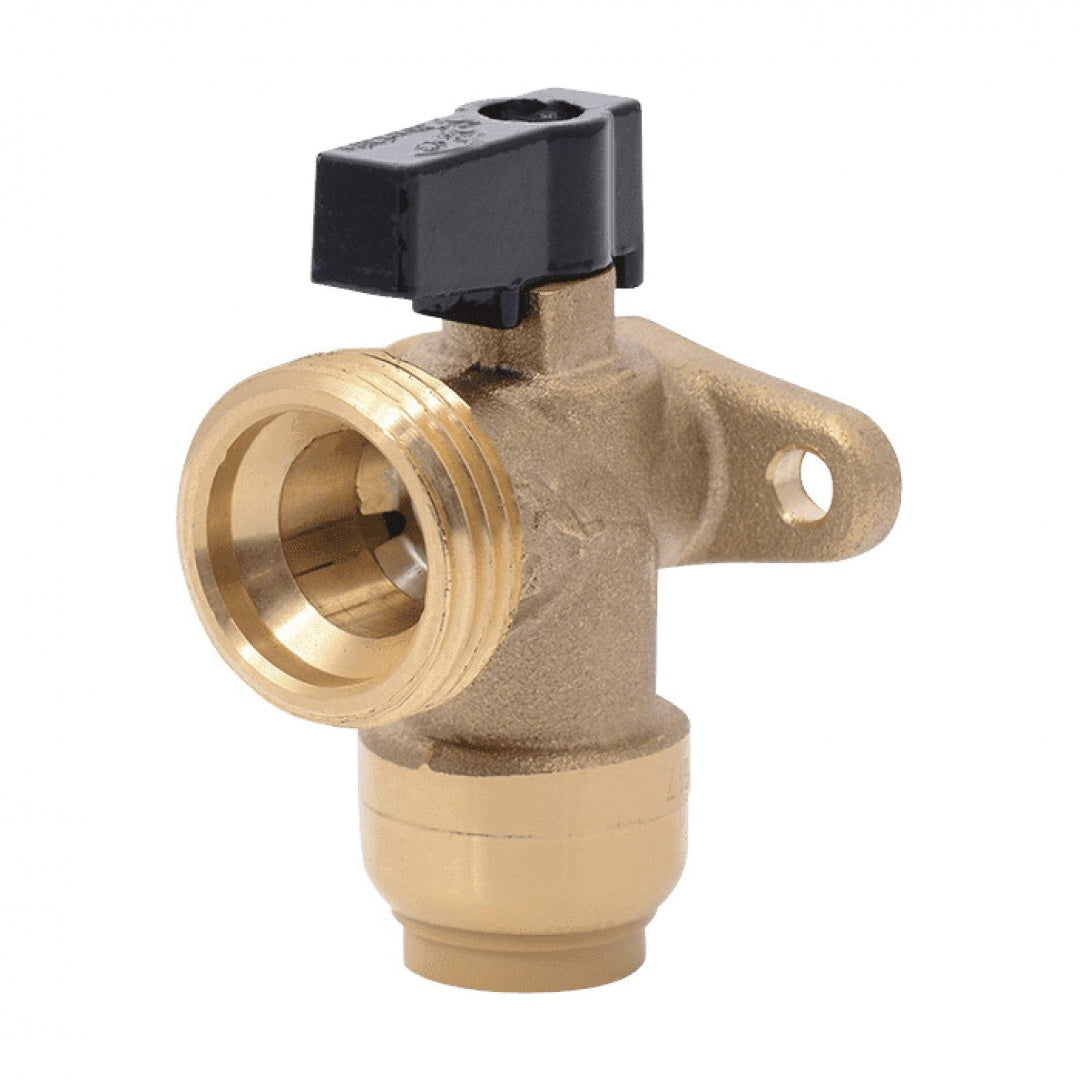

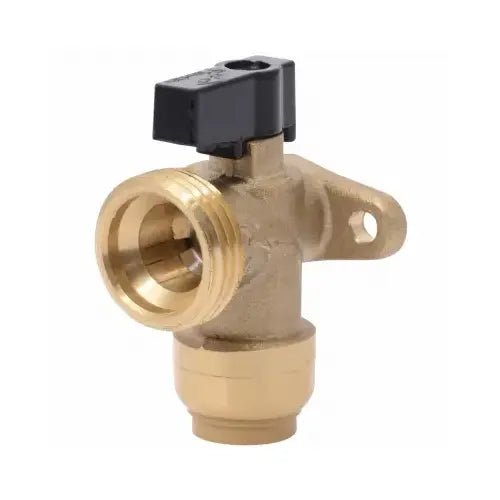

Cash Acme 25560lf 1/2 inches SharkBite X 3/4 inches MHT Washing Machine Angle Valve

Product Description

The CASH ACME 25560LF SharkBite angle valve is lead-free with a 1/2 x 3/4 inch nominal size and push-to-connect x male hose thread end style. Compatible with PEX, copper, CPVC, PE-RT, and HDPE pipe. Approved for underground and behind-wall use without access panels. No special tools, crimping, glue, or soldering is needed and can be installed in wet lines.

• Compatible with PEX, copper, CPVC, PE-RT and HDPE pipe
• Approved to be used underground and behind walls without access panels
• No special tools, crimping, glue or soldering is needed

Product Highlights

Ideal for washing machine installations, this valve works in tight spaces and can be installed in wet lines.

Product Information

Standard Information

• Brand: CASH ACME
• Manufacturer Part Number: 25560LF
• Country of Origin: USA

Technical Specifications

• End Style: Push-to-Connect x Male Hose Thread
• Nominal Size: 1/2 x 3/4 in
• Manufacturer: CASH ACME
• Material: Brass
• Brand: SharkBite
• Inlet Connection Size: 0.5 Inches
• Outlet Connection Size: 0.75 Inches
• Number of Ports: 2
• Part Number: 25560LF
• Item model number: 25560LF
• Style: Angle
• Finish: Brass
• Item Package Quantity: 1
• Usage: Washing machine installations.
• Included Components: Washing Machine Angle Valve
• Batteries Included?: No
• Batteries Required?: No
• End 1 Type: PTC
• End 1 Size: 1/2"
• Maximum Temperature: 200 °F
• End 2 Type: MIP
• Lead Content: Lead-Free
• Maximum Pressure: 200 psi
• Packaging Type: Bagged
• End 2 Size: 3/4"
• Product Type: Washing Machine Valve
• Turn Type: Quarter Turn
• Each Weight: 0.280 LB
• Application: For working in tight spaces
• Connection Size: 1/2 x 3/4"
• Pressure rating: 200 psi
• Temperature Rating: 200 deg F
• Body Material: Brass
• Connection Type: Push x MHT
• Size: 1/2 In. SB x 3/4 In. MHT
• Handle Color: Black
• Temperature: Up to 200 F
