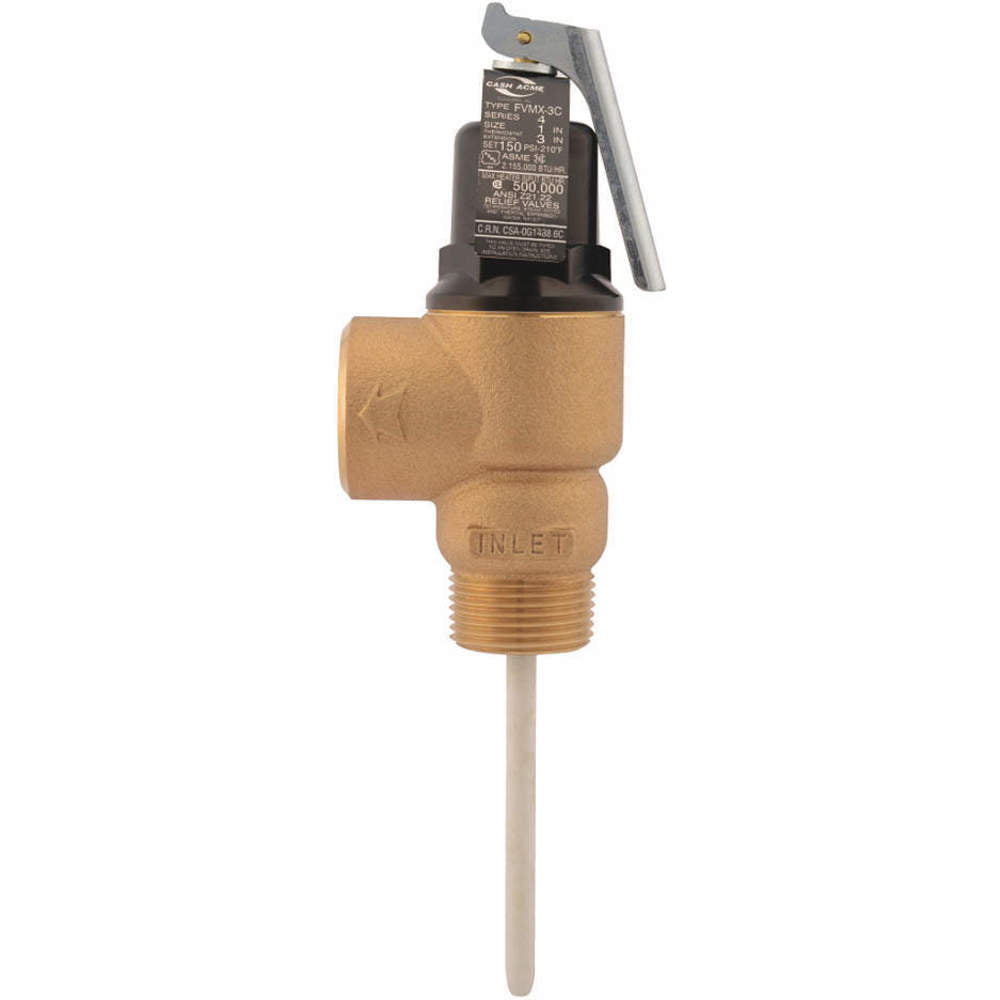

CASH-ACME 25404 Temperature and Pressure Relief Valve 1 Inch Replacement MPN

Product Description

The CASH-ACME 25404 is a temperature and pressure relief valve designed for heating devices and water heaters. This valve provides safety by automatically releasing excess pressure. It is constructed from a brass body and features a MNPT x FNPT connection.

• Factory set pressure of 150 psi
• Maximum operating temperature of two hundred ten degrees Fahrenheit
• Meets ANSI Z21.22/CSA 4.4 standards

Product Highlights

Reliable pressure control and temperature management for various heating applications.

Product Information

Standard Information

• Item: Temperature & Pressure Relief Valve
• Body Material: Brass

Technical Specifications

• Inlet Size: 1 inch
• Outlet Size: 1 inch
• Inlet Type: MNPT
• Outlet Type: FNPT
• Connection Type: MNPT x FNPT
• Application: Heating Devices, Water Heaters
• Auto Re-seating: Yes
• Factory Set Pressure: 150 psi
• Max. Operating Temperature: 210 degrees Fahrenheit
• For Media: Hot Water
• Standards: ANSI Z21.22/CSA 4.4
• ASME Section Code: Section IV
• Discharge Capacity: 2155000 btuH
• Body Height: 8 11/16 inches
• Thermostat Length: 3 1/8 inches
• Shank Length: Standard
