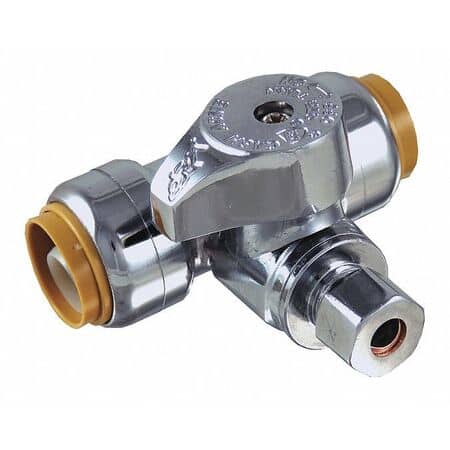

CASH-ACME 24983 Tee Stop Valve 1/2 Inch SB x 1/2 Inch SB x 1/4 Inch Compression

Product Description

The CASH-ACME 24983 Tee Stop Valve is designed for efficient connections to existing supply lines, making it suitable for adding fixtures or appliances.

• 1/2 inch push inlet and 1/4 inch compression outlet.
• Maximum pressure capacity of 200 psi.
• Temperature range from 32 degrees Fahrenheit to 200 degrees Fahrenheit.

Product Highlights

This valve offers an instant push-fit connection, eliminating the need for soldering or glue, ensuring quick and easy installation.

Product Information

Standard Information

• Manufacturer: Cash Acme
• Manufacturer #: 24983

Technical Specifications

• Parts Town #: CHME24983
• Inlet Size: 1/2 inch
• Inlet Type: Push
• Outlet Size: 1/4 inch
• Outlet Type: Compression
• Max Pressure: 200 psi
• Temperature Range: 32 to 200 degrees F
• Body Material: Brass
• Handle Material: Chrome Plated DZR Brass
• Connection Standards: ASME A112.18.1/CSA B125.1 ASSE 1061 NSF/ANSI 372 NSF/ANSI 61
• Style: Valves Tee Stop
• Material: Lead-Free DZR Brass
• Length: 2.72 inches
• For Use With: Copper Tubing, CTS CPVC, PEX, and PE-RT Pipe
• Application: For Potable Water and Hydronic Heating Water Distribution
