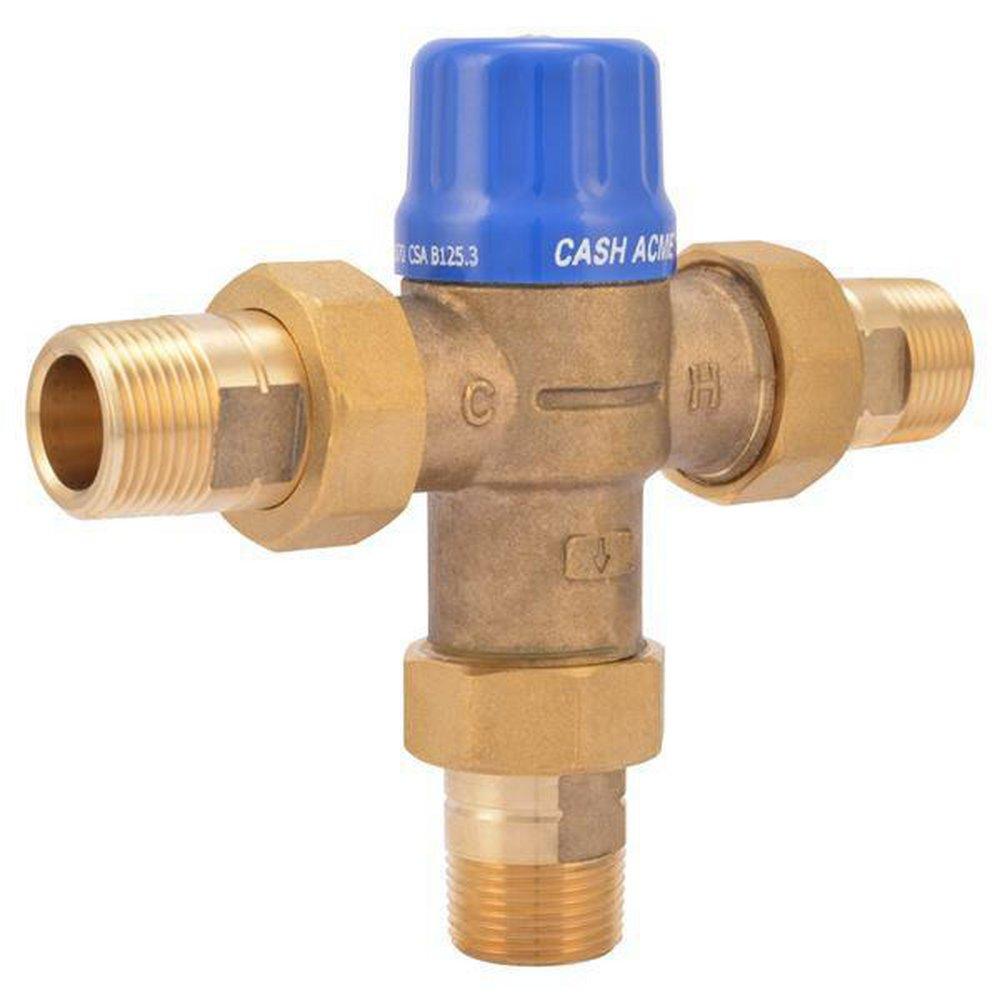

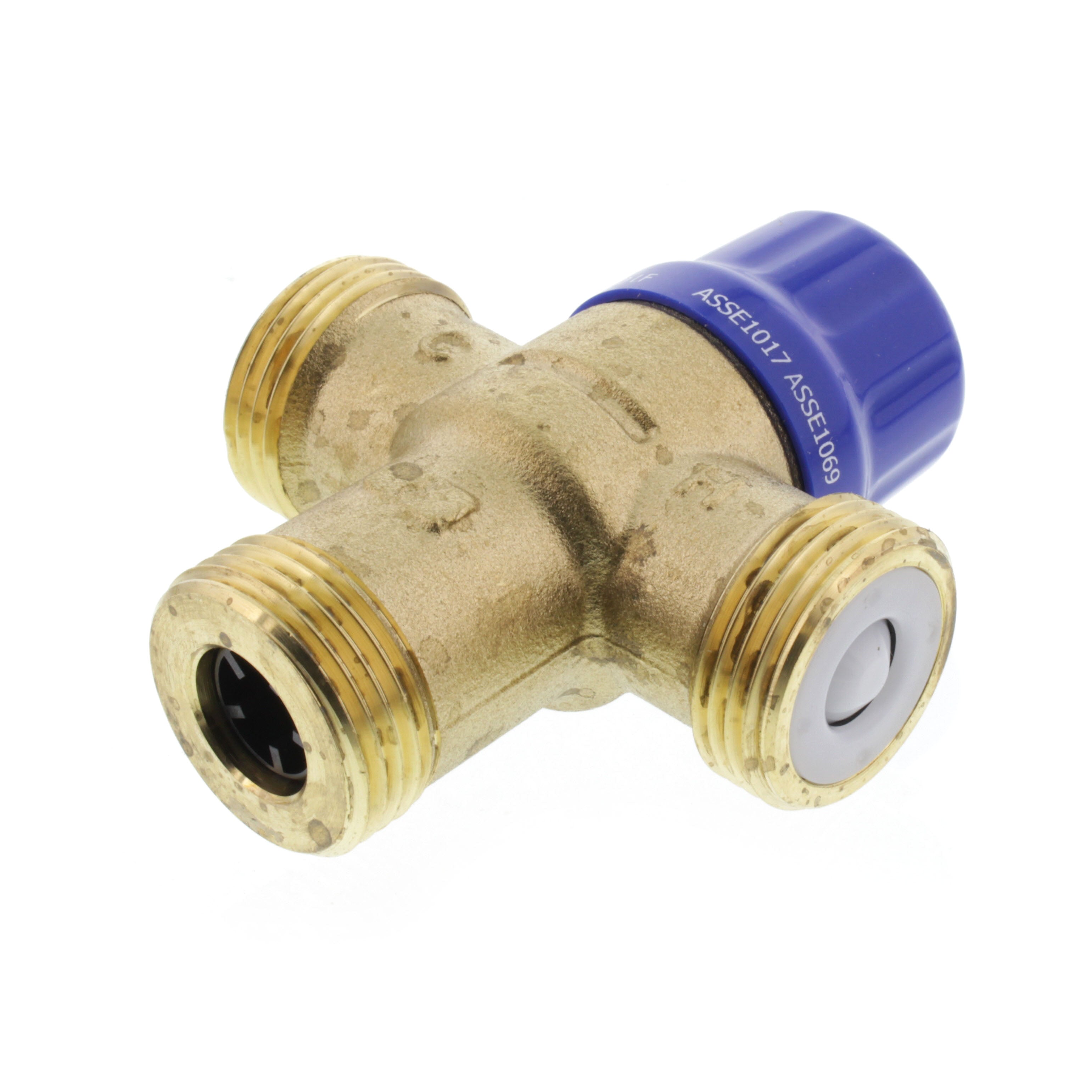

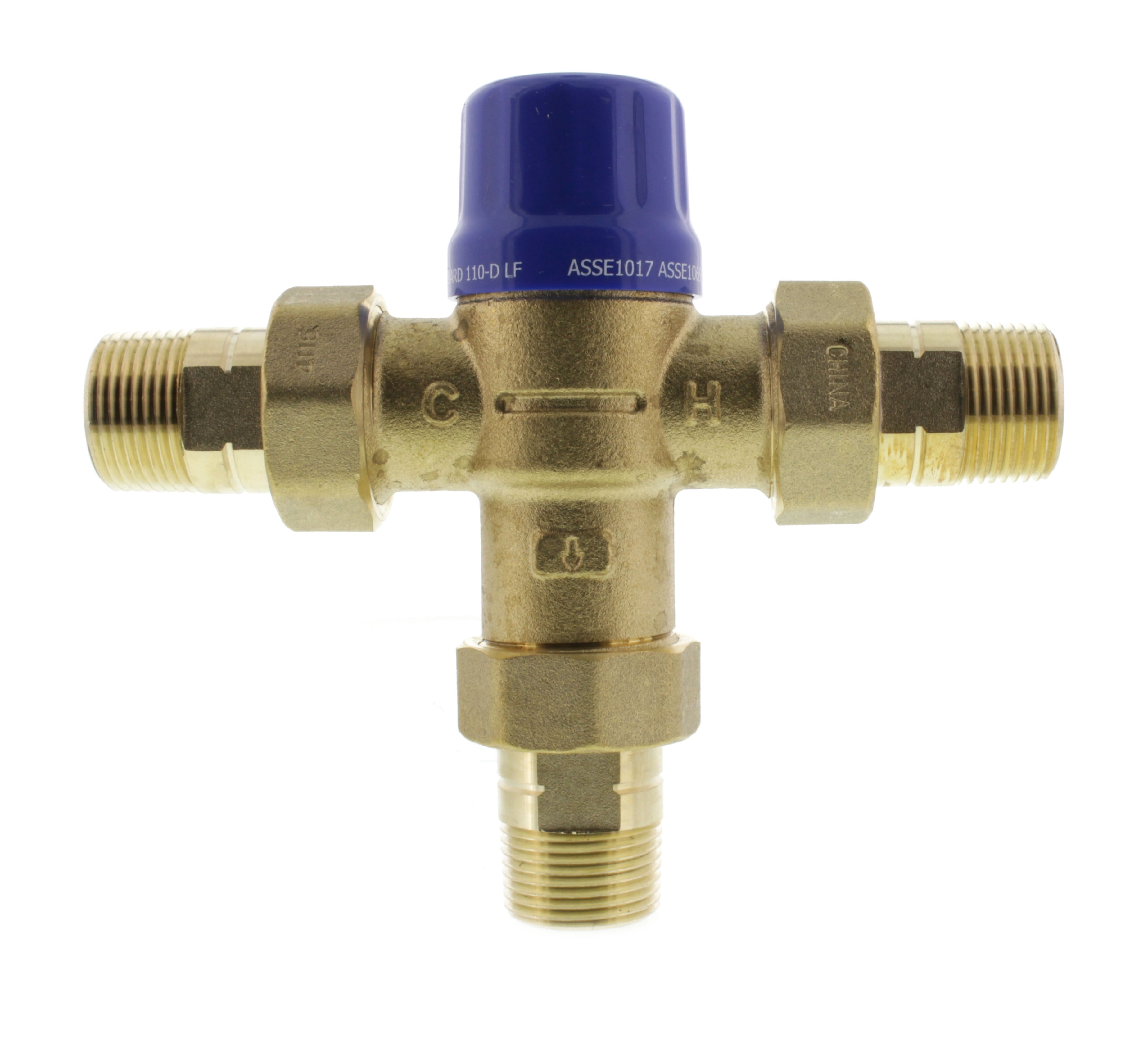

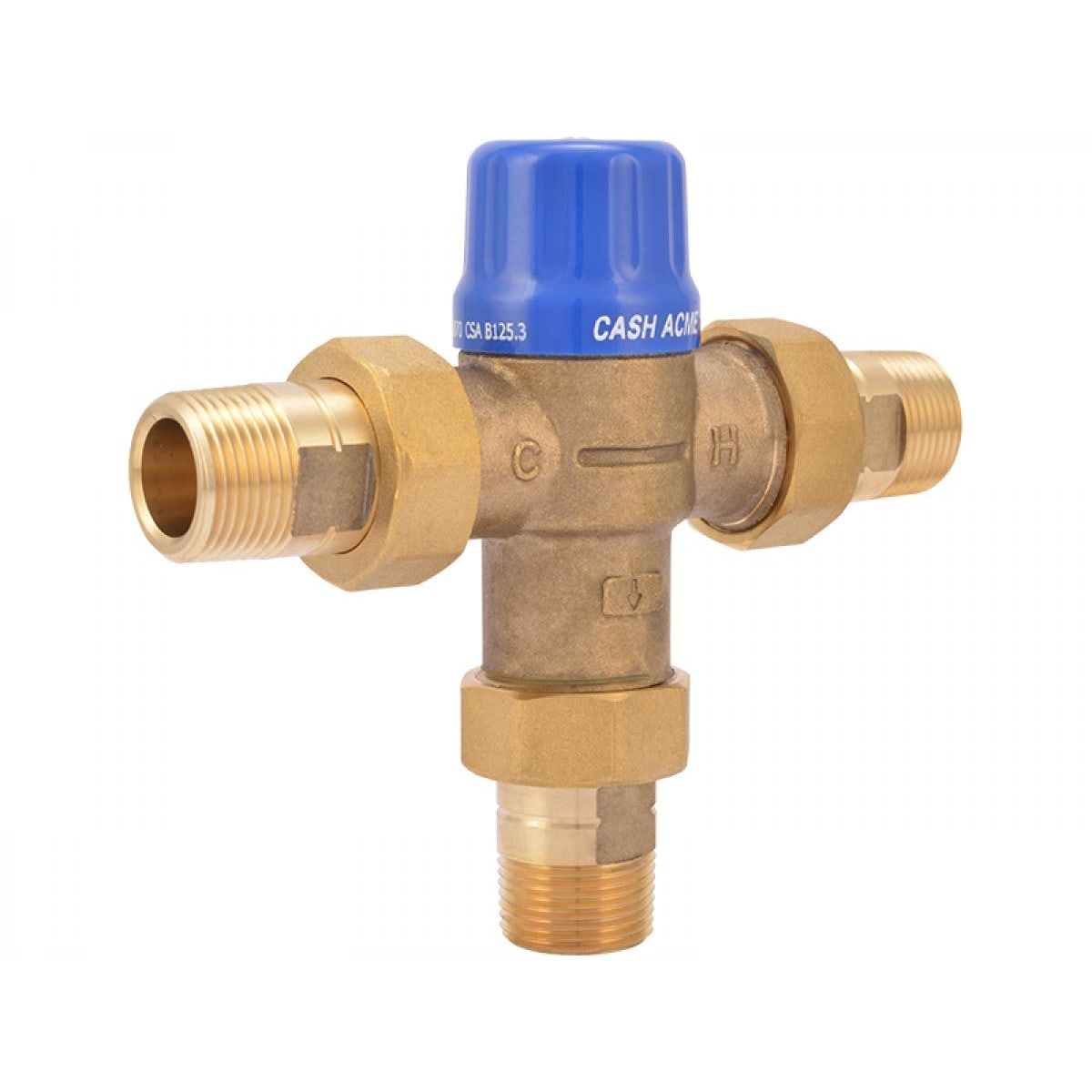

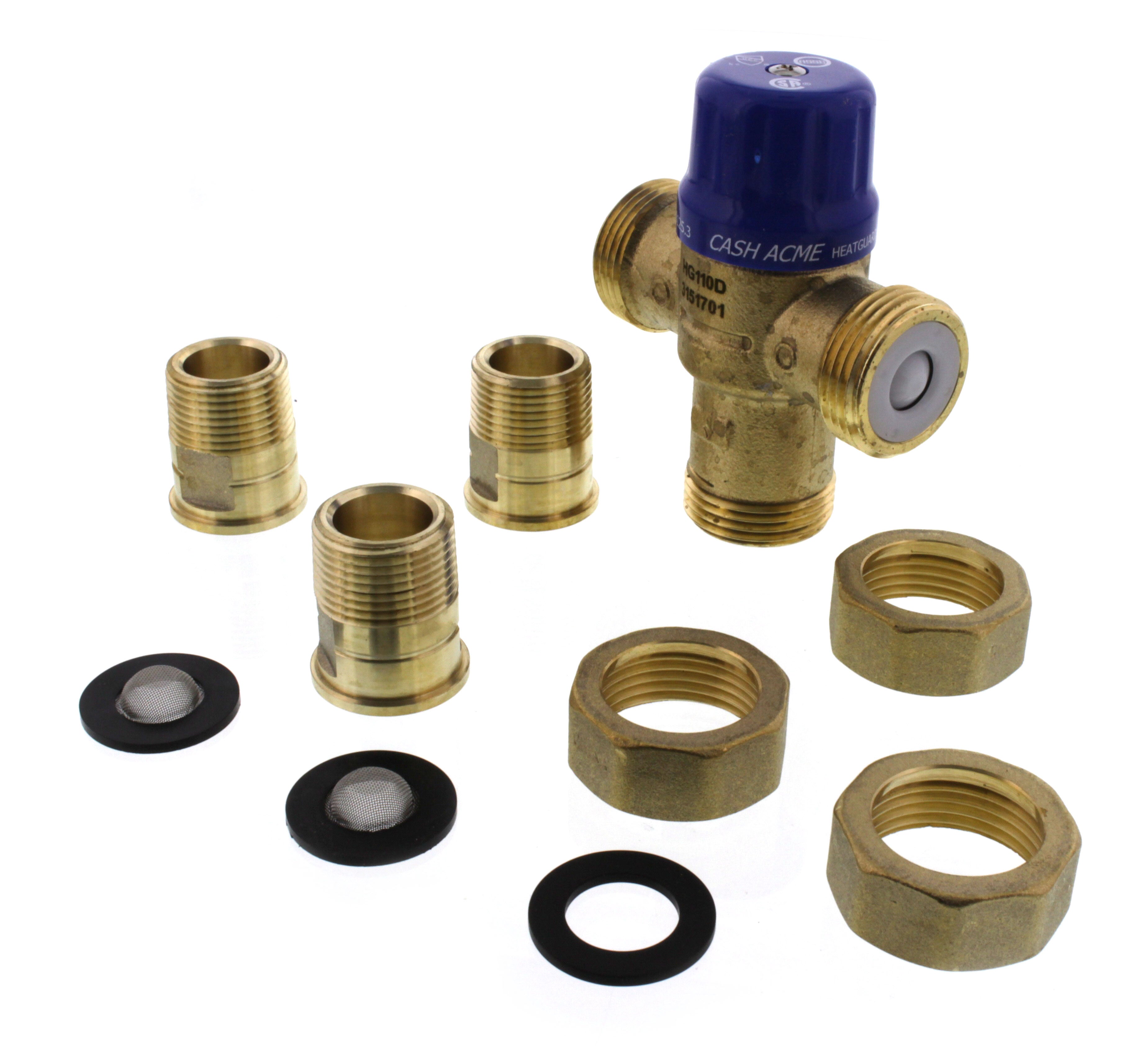

Cash Acme 24511 Heatguard 3/4 in. MNPT Mixing Valve

Product Description

The Cash Acme Heatguard, model 24511, is a thermostatic mixing valve designed to deliver safe water temperatures for various applications. This valve maintains a maximum outlet temperature of 120 degrees Fahrenheit while allowing the water heater to operate at higher temperatures to control the growth of harmful bacteria.

• Delivers water at a safe 120 degrees F
• Allows higher water heater settings for better sanitation
• Adjustable mechanism prevents unauthorized changes

Product Highlights

Engineered for consistent temperature control, the Heatguard mixing valve is suitable for residential and commercial use, ensuring safe water temperatures at all outlets.

Product Information

Standard Information

• Brand: Cash Acme
• MPN: 24511

Technical Specifications

• Inlet Connection Size: 3/4 inch
• Outlet Connection Size: 3/4 inch
• Body Material: Brass
• Minimum Flow GPM: 1 GPM
• Minimum Outlet Temperature: 85 degrees F
• Maximum Outlet Temperature: 130 degrees F
• Max Pressure: 230 psi
• Point-of-Use Certified: Yes
