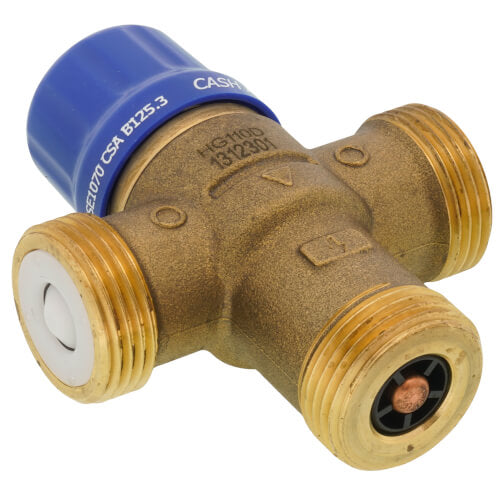

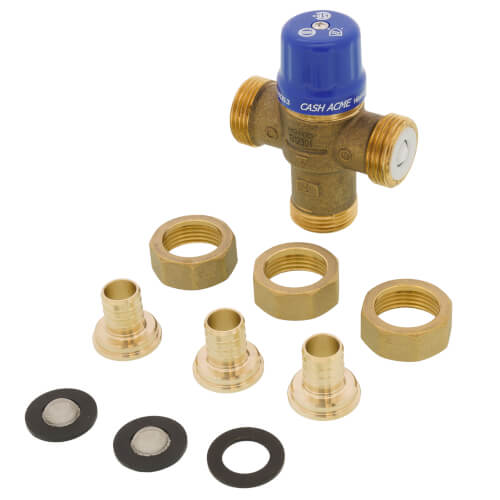

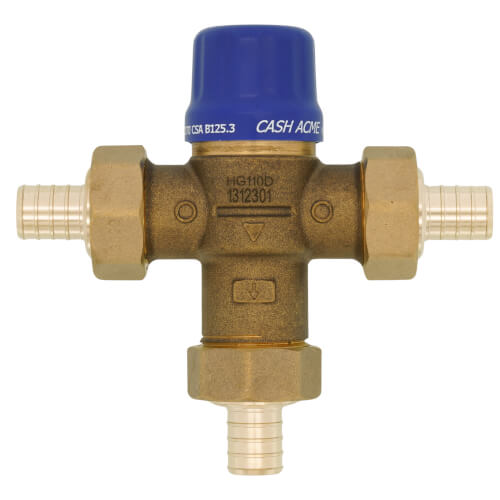

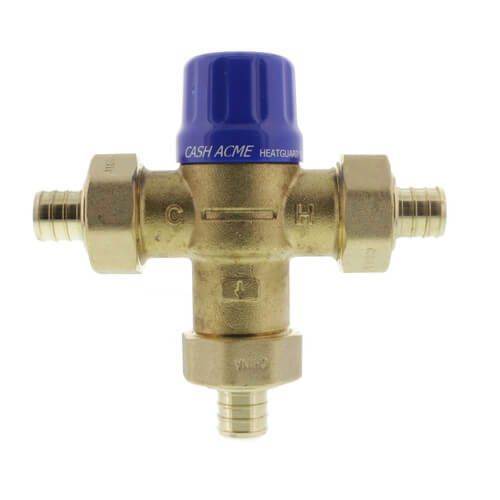

Cash Acme 24507 HG110-D 3/4 Barbed PEX Thermostatic Mixing Valve

Product Description

The Cash Acme HG110-D is a thermostatic mixing valve designed for tempered domestic potable water applications. This valve ensures safe water delivery temperatures and features a locking mechanism that prevents adjustments above one hundred twenty degrees Fahrenheit. The fast-acting thermostatic element effectively maintains the desired outlet temperature even with fluctuations in supply temperatures.

• Locking mechanism prevents unauthorized adjustments
• Designed for domestic portable water applications
• Temperature range of eighty-five to one hundred thirty degrees Fahrenheit

Product Highlights

This mixing valve is ideal for use in various settings, including households and commercial facilities, controlling water temperature at the source or at point-of-use locations.

Product Information

Standard Information

• Brand: Cash Acme
• Model: HG110-D

Technical Specifications

• MPN: 24507
• Valve Application: Tempered Domestic Potable Water
• Body Material: Brass
• Valve Connection: Barbed PEX
• Inlet Connection Size: 3/4
• Outlet Connection Size: 3/4
• Minimum Flow GPM: 1 GPM
• Minimum Outlet Temperature: 85
• Maximum Outlet Temperature: 130
• Max Pressure: 230 psi
• Point-of-Use Certified: Yes
• Point-of-Source Certified: Yes
• ASSE Classification: 1017, 1069, 1070
• Weight: 1.80 lbs
