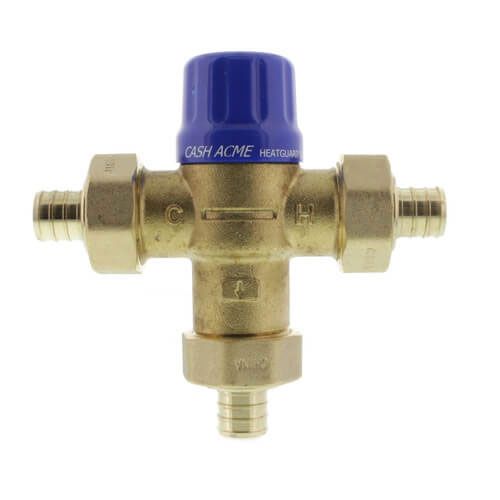

CASH ACME 24506 HG110-D Thermostatic Mixing Valve 1/2 inches with Barb Connections

Product Description

The CASH ACME 24506 HG110-D is a thermostatic mixing valve used for both domestic and commercial hot water systems. It manages water temperature at the heat source or across multiple fixtures. Each valve undergoes performance testing prior to distribution. This model includes an adjustable and lockable mechanism to deter unauthorized adjustments.

• Certified for distribution and point-of-use applications
• Supports water heater settings of one hundred forty degrees Fahrenheit or higher
• Designed with low complexity for enhanced reliability

Product Highlights

This valve is ideal for ensuring safe and accurate water temperatures in various plumbing applications.

Product Information

Standard Information

• Brand: CASH ACME
• MPN: 24506

Technical Specifications

• Body Material: Bronze
• Flow Rate: 1 to 20 gallons per minute
• Inlet Connection: 1/2 inch Barb (PEX)
• Outlet Connection: 1/2 inch Barb
• Pressure Rating: 230 psi
• Series: HG110-D
• Temperature Rating: 85 to 130 degrees Fahrenheit
• Valve Application: Tempered Domestic Potable Water
• Valve Connection: Barbed PEX
• Inlet Connection Size: 1/2 inches
• Outlet Connection Size: 1/2 inches
• Minimum Flow GPM: 1 GPM
• Minimum Outlet Temperature: 85
• Maximum Outlet Temperature: 130
• Max Pressure: 230 psi
• Point-of-Use Certified: Yes
• Point-of-Source Certified: Yes
• ASSE Classification: 1017, 1069, 1070
