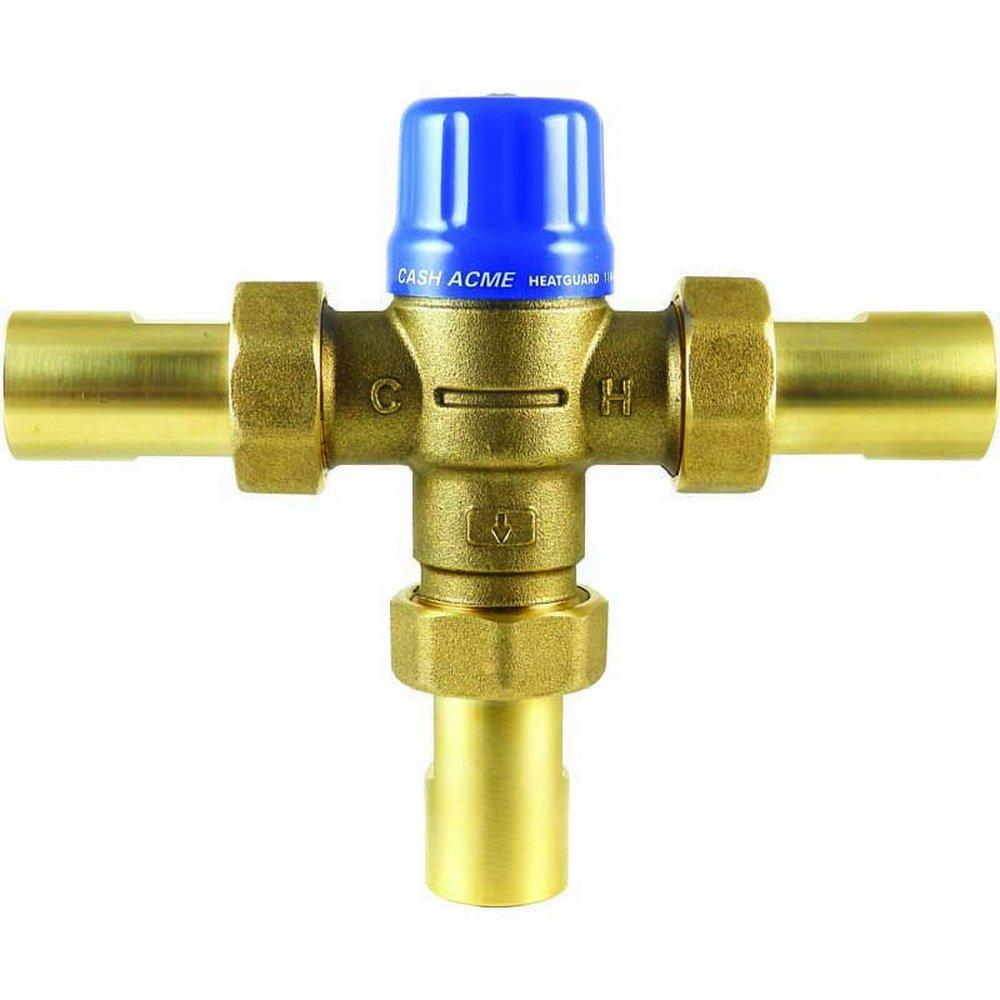

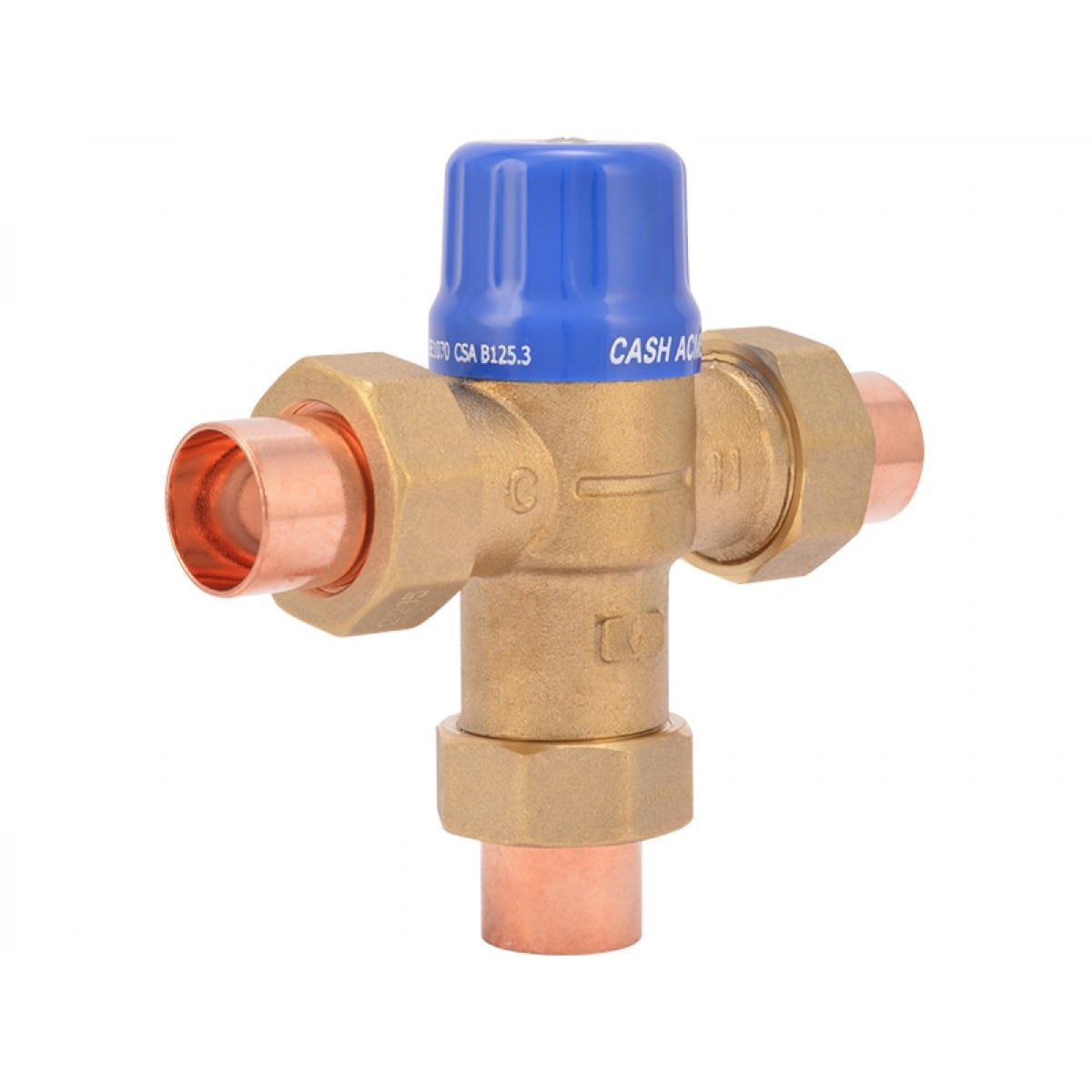

Cash Acme 24502 Heatguard 110-D Series 3/4 in. Sweat Thermostat Mixing Valve

Product Description

The Cash Acme Heatguard 110-D Series Thermostat Mixing Valve, MPN 24502, is designed for safe water temperature control. It delivers water at a safe maximum of 120 degrees Fahrenheit (49 degrees Celsius) while allowing the water heater to be set to higher temperatures. This valve helps prevent the growth of Legionella bacteria.

• Robust construction ensures reliability
• Adjustable and lockable mechanism
• Listed by IAPMO, CSA, and ASSE

Product Highlights

This mixing valve offers essential temperature regulation for both domestic and commercial applications, providing safer hot water from all outlets.

Product Information

Standard Information

• Brand: Cash Acme
• MPN: 24502

Technical Specifications

• Valve Application: Tempered Domestic Potable Water
• Body Material: Brass
• Inlet Connection Size: 3/4 inches
• Outlet Connection Size: 3/4 inches
• Minimum Flow GPM: 1 GPM
• Minimum Outlet Temperature: 85 degrees Fahrenheit
• Maximum Outlet Temperature: 130 degrees Fahrenheit
• Max Pressure: 230 psi
• Point-of-Use Certified: Yes
• ASSE Classification: 1017, 1069, 1070
• Weight: 1.80 lbs
