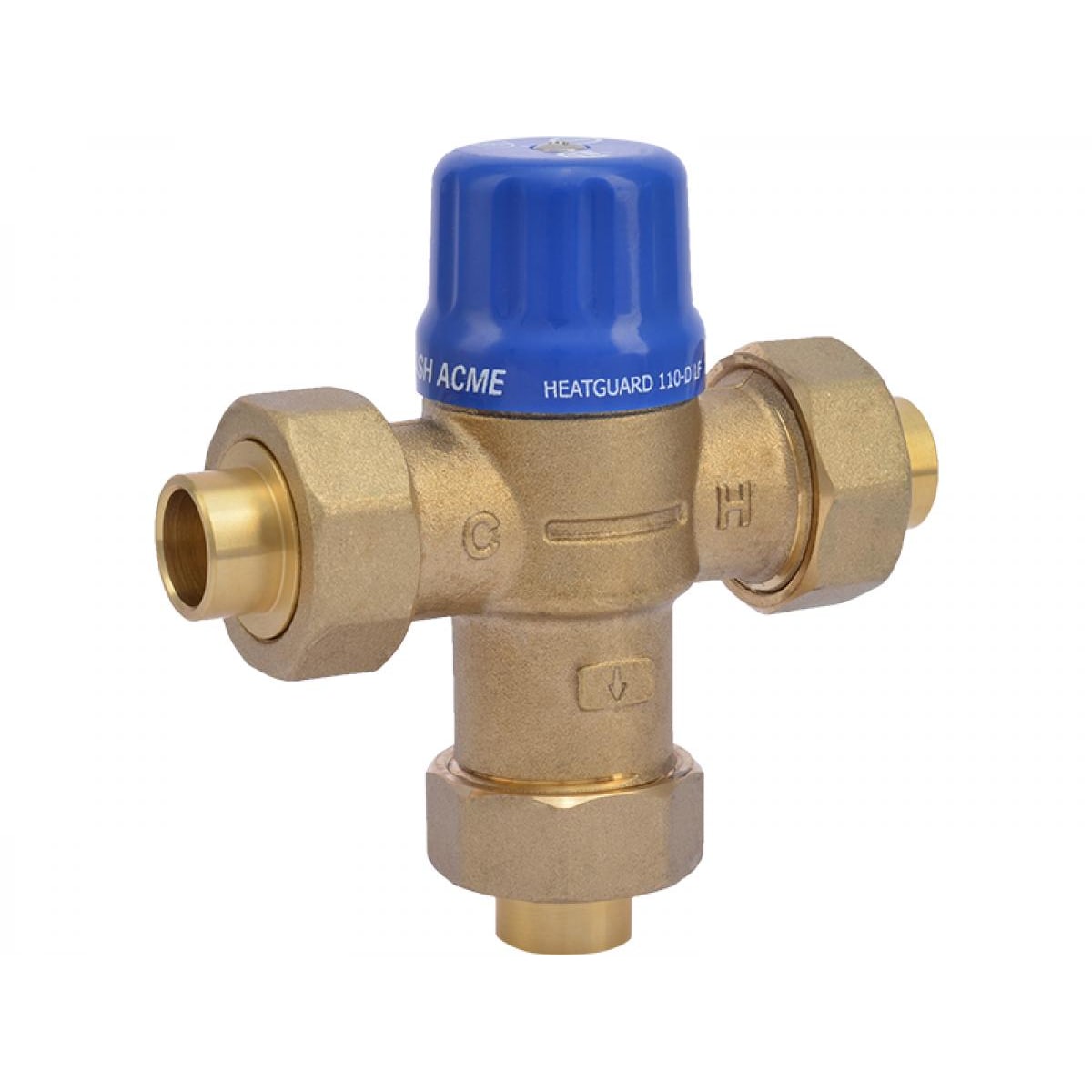

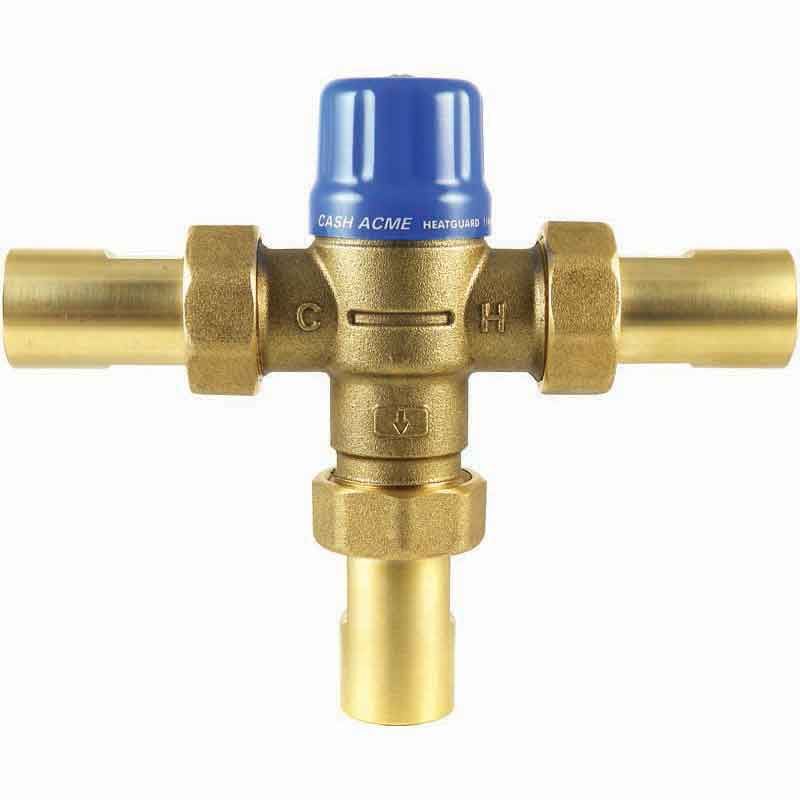

Cash Acme 24501 1/2 HG110-D Sweat Connection

Product Description

The Cash Acme 24501 is a 1/2 inch HG110-D thermostatic mixing valve designed for water temperature control in domestic and commercial applications. This valve delivers water at a safe temperature of 120 degrees F or lower while allowing the water heater to be set at higher temperatures, up to 140 degrees F. This function assists in preventing Legionella bacteria growth. The valve features durable construction and is performance tested before shipping.

• Maintains safe water temperature
• Factory set to a maximum of 120 degrees F
• Adjustable outlet temperature range of 85 to 130 degrees F

Product Highlights

Ideal for controlling water temperature at the source, point-of-use, or multiple fixtures.

Product Information

Standard Information

• Brand: Cash Acme
• MPN: 24501

Technical Specifications

• Valve Application: Tempered Domestic Potable Water
• Body Material: Brass
• Valve Connection: Sweat
• Inlet Connection Size: 1/2 inch
• Outlet Connection Size: 1/2 inch
• Minimum Flow GPM: 1 GPM
• Minimum Outlet Temperature: 85 degrees F
• Maximum Outlet Temperature: 130 degrees F
• Max Pressure: 230 psi
• Point-of-Use Certified: Yes
• ASSE Classification: 1017, 1069, 1070
• Weight: 1.80 lbs
