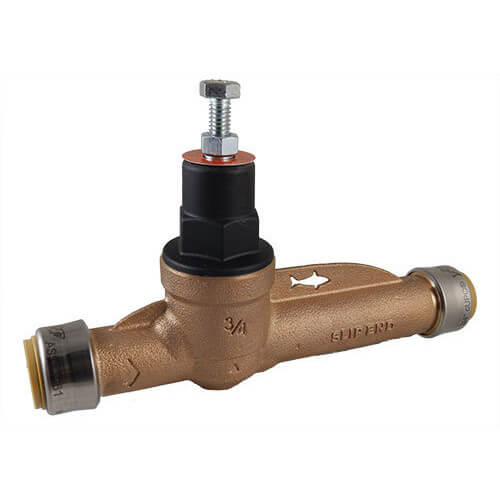

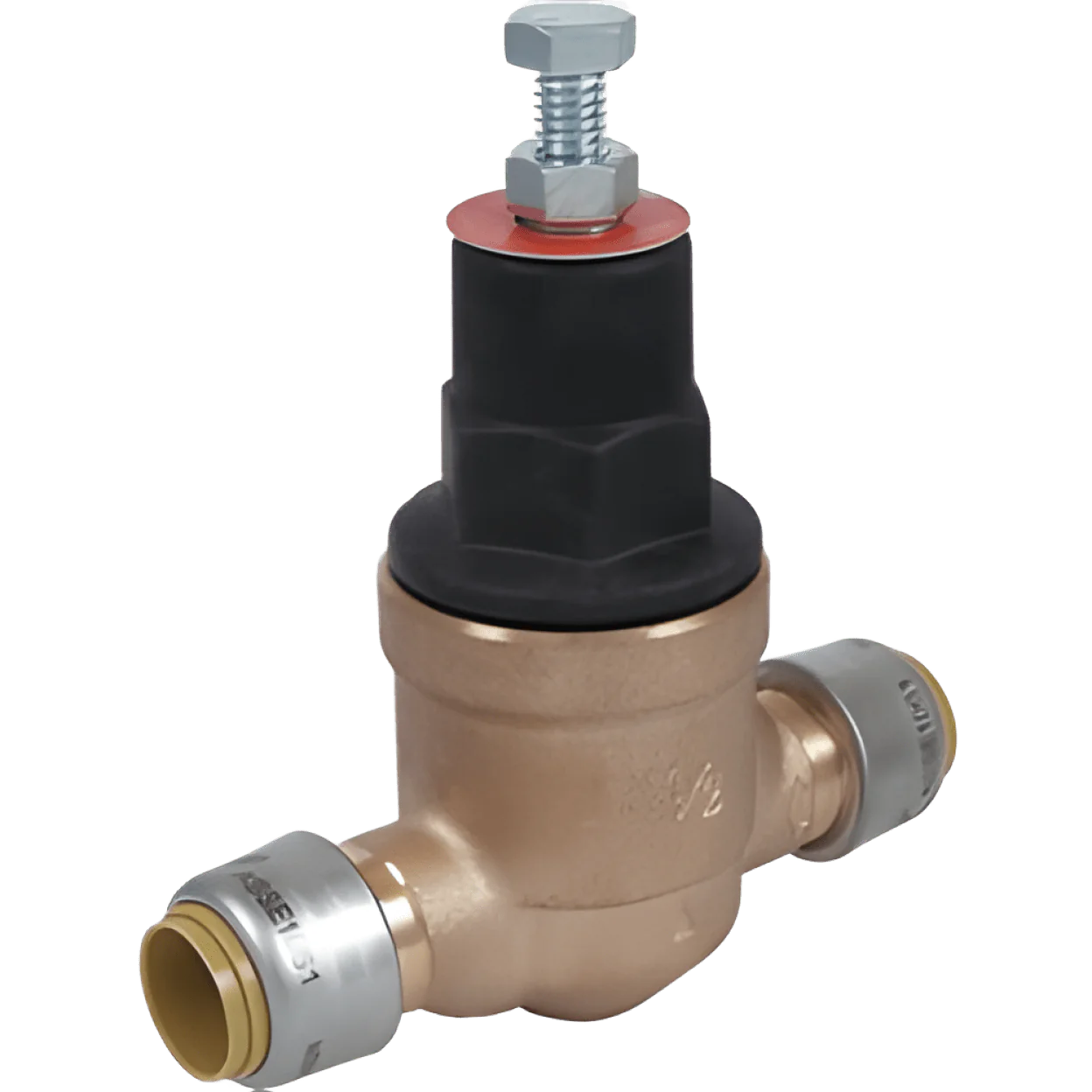

CASH ACME 24384-0045 3/4 EB45-SDSB Slip Feature Direct SharkBite

Product Description

The CASH ACME 24384-0045 is a 3/4 inch slip pressure regulating valve designed for water applications. This valve features a modular cartridge design that lowers the number of serviceable parts. It allows for quick and easy repairs and enhances functionality.

• Instant push-fit connections requiring no tools, solder, or glue
• Slip feature that simplifies installation on existing copper and CTS CPVC pipe
• Integral back-pass check mechanism to allow flow back if outlet pressure exceeds inlet pressure

Product Highlights

This pressure regulating valve is compact, making it perfect for both commercial and domestic water applications.

Product Information

Standard Information

• Manufacturer: CASH ACME
• MPN: 24384-0045

Technical Specifications

• Body Material: Bronze
• Nominal Size: 3/4 inch
• Pressure Rating: 45 psi
• Maximum Pressure: 200 psi
• Outlet Pressure Range: 10 to 70 psi
• Temperature Rating: 180 deg F
• Inlet to Outlet Length: 7.63 inches
• Top to Inlet Center: 4.37 inches
