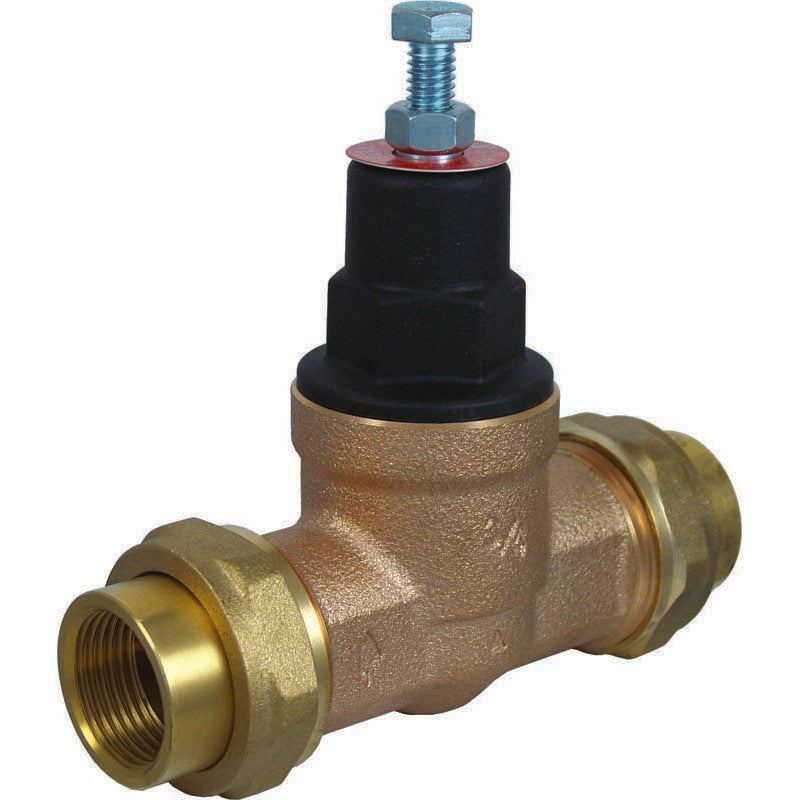

Cash Acme 23905-0045 1-1/4 In. EB45-DU Double Union Thread Pressure Reducing Valve

Product Description

The Cash Acme 23905-0045 is a pressure reducing valve designed with a half cartridge system that combines the performance of a high-end valve with the cost-effectiveness of a traditional model. This valve features a separate spring chamber and adjusting screw, providing both simplicity and maintenance ease typical of cartridge-based valves. It is factory set at forty-five PSI, adjustable from ten to seventy PSI.

• Modular cartridge design for reduced service parts
• Durable bronze construction
• Tested for performance before shipping

Product Highlights

This valve is suitable for commercial and domestic water applications, ensuring optimal pressure regulation.

Product Information

Standard Information

• Brand: Cash Acme
• Part Number: CASH-23905-0045

Technical Specifications

• Size: 1-1/4 inches
• Material: Bronze
• Weight: 6.15 lbs
• Inlet Type: Union FNPT
• Outlet Type: Union FNPT
• Pressure Adjustment Range: 10 to 70 PSI
• Factory Set Pressure: 45 PSI
• Temperature Rating: 180°F
