CASH ACME 23894-0045 3/4 EB45-DUSB Double Union SharkBite

Product Description

CASH ACME 23894-0045 is a push-fit pressure regulating valve. This valve is lead-free and meets various standards for safety and performance. It is suitable for both commercial and domestic applications where pressure regulation is required.

• Modular cartridge design for easy service and maintenance
• Instant push-fit connections, no tools required
• Adjustable outlet pressure range of ten to seventy psi

Product Highlights

This valve features a rugged bronze body and brass trim, ensuring reliability. It also includes a back-pass check mechanism for safe operation in case of back pressure. The SharkBite EB45 valve is designed for simple installation on existing copper and CPVC pipes and offers a two-year limited warranty.

Product Information

Standard Information

• Manufacturer: CASH ACME
• Nominal Size: 3/4 inch

Technical Specifications

• Body Material: Bronze
• Trim Material: Brass
• End Style: Push-Fit

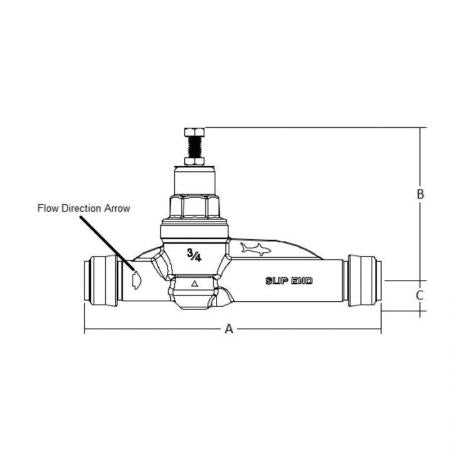

• Inlet to Outlet Length: 7.05 inches
• Temperature Rating: 180 degrees F
• Pressure Rating: 45 psi
• Series: EB45
• Softgoods Material: EPDM O-Ring
