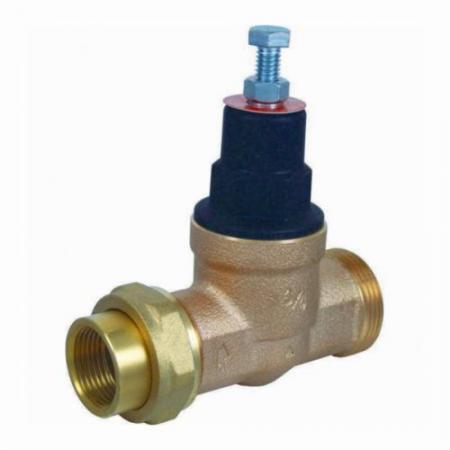

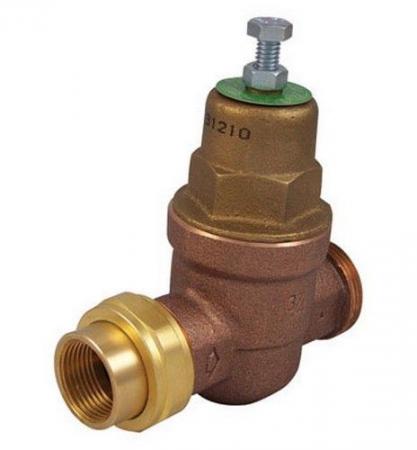

CASH ACME 23883-0045 3/4 in EB45-U Single Union Threaded Pressure Regulating Valve

Product Description

The Cash Acme 23883-0045 is a 3/4 inch single union pressure regulating valve designed for efficient control of water pressure in plumbing systems. The valve operates at a maximum inlet pressure of 400 psi and provides a regulated outlet pressure between 10 to 70 psi, ensuring the safety and functionality of the plumbing system.

• Lead-free bronze construction
• Integral bypass mechanism for reliability
• Compatible with NPT connection for easy installation

Product Highlights

This valve is suitable for both commercial and domestic applications where controlling water pressure is necessary. It features a compact and modular design that enables easy service and maintenance.

Product Information

Standard Information

• MPN: 23883-0045
• Manufacturer: CASH ACME

Technical Specifications

• Body Material: Bronze
• Trim Material: Brass/Stainless Steel
• Softgoods Material: EPDM O-Ring
• Nominal Size: 3/4 inches
• Pressure Rating: 45 psi
• Temperature Rating: 180 degrees F

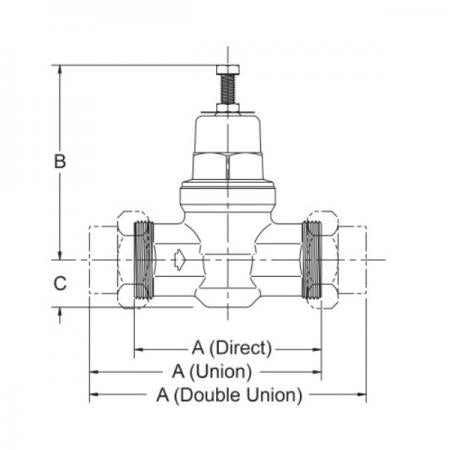

• Inlet to Outlet Length: 4.15 inches
• Top to Inlet Center: 4.37 inches
• End Style: NPT
