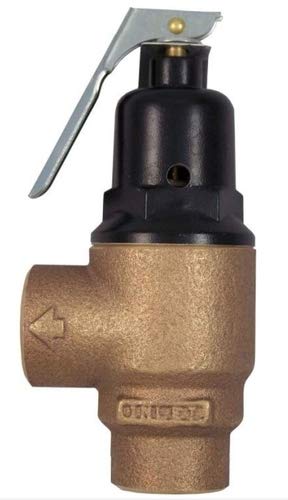

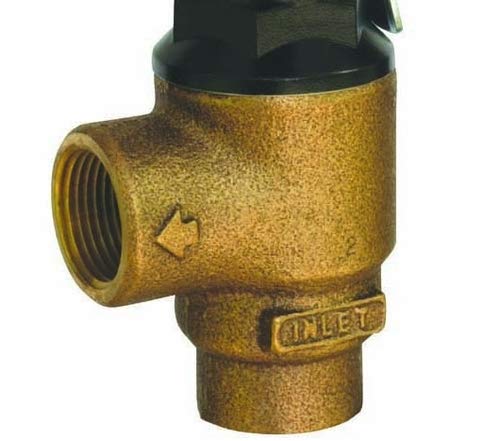

Cash Acme 23341-0150 F-82 Pressure Relief Valve 150 psi (3/4 NPT) Replacement MPN

Product Description

The Cash Acme F-82 Pressure Relief Valve, MPN 23341-0150, is designed for use in hot water applications. It has a three-quarter NPT female inlet and outlet connections, making it an ideal choice for commercial hot water space heating boilers, water supply heaters, and storage tanks.

• Max pressure rating of 150 psi
• Lead-free construction for safety
• Meets ASME Boiler Code Section IV

Product Highlights

This valve is constructed from bronze and features a silicone seat disc, EP diaphragms, brass internal parts, and stainless steel pressure springs. It is suitable for use on hot water service only and should not be used for steam.

Product Information

Standard Information

• Brand: Cash Acme
• MPN: 23341-0150

Technical Specifications

• Model: F-82
• Body Material: Bronze
• Valve Application: Hot Water
• Valve Size: 3/4
• Valve Connection: NPT
• Piping Configuration: Angle
• Max Pressure: 150 psi WOG
• Weight: 1.22 lbs
