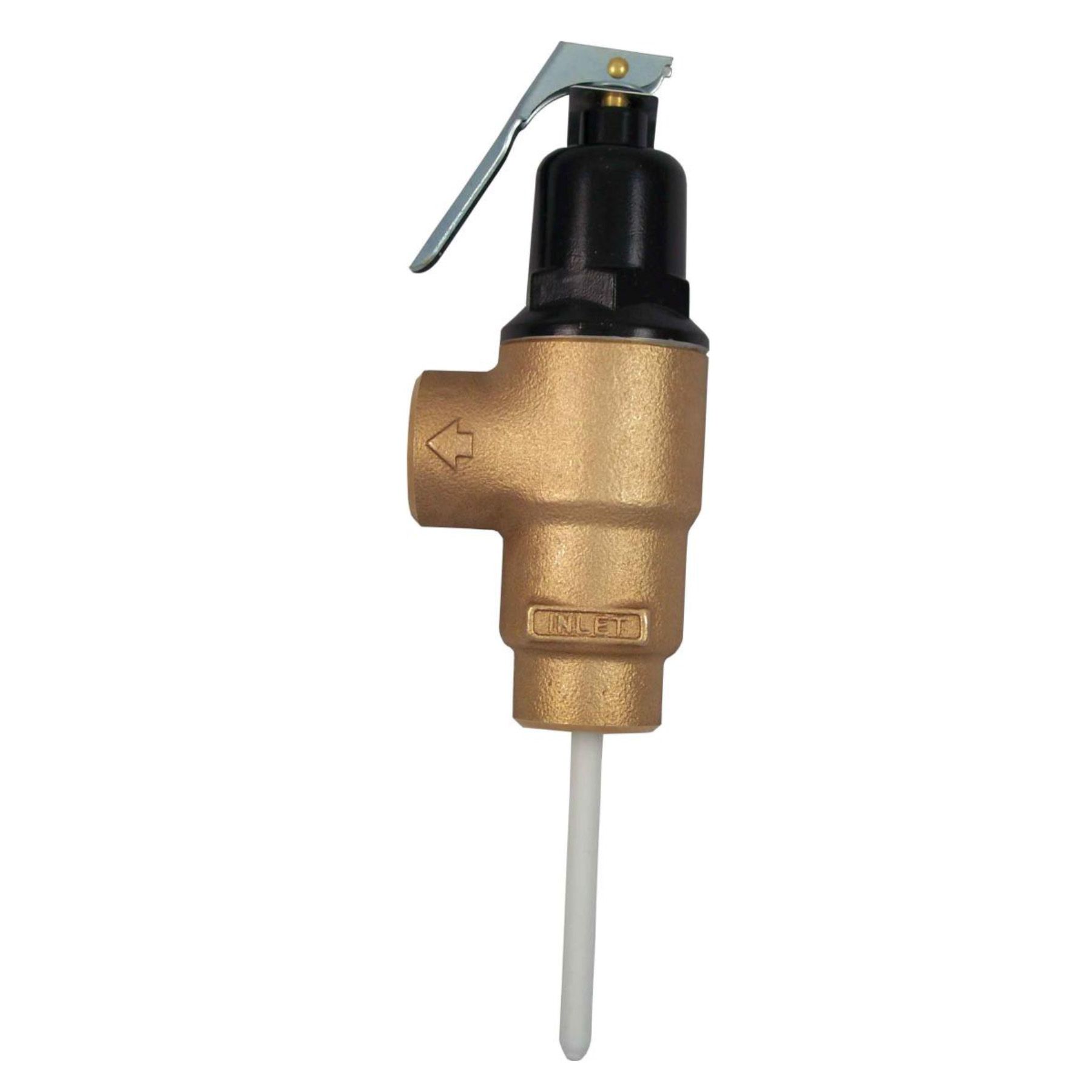

Cash Acme 23274-0125 FVMX-3C T&P Relief Valve 3/4 NPT 125 psi 23274-0125

Product Description

The Cash Acme 23274-0125 FVMX-3C Temperature and Pressure Relief Valve is designed for hot water applications. This valve features a 3/4 inch NPT connection and a length of two and twenty-five thirty-seconds inches for the probe. It operates effectively under a maximum pressure of 125 psi and has a temperature tolerance of 210 degrees Fahrenheit. With a capacity rating of 1,619,000 BTU/hr, it ensures safety and compliance in plumbing systems.

• Used in hot water applications
• Pressure rated to 125 psi
• Temperature rated to 210 degrees Fahrenheit

Product Highlights

This relief valve provides reliable protection against pressure build-up in hot water systems.

Product Information

Standard Information

• Brand: Cash Acme
• MPN: 23274-0125

Technical Specifications

• Model: FVMX-3C
• Body Material: Brass
• Valve Application: Hot Water
• Valve Size: 3/4 inch
• Valve Connection: NPT
• Piping Configuration: Angle
• Max Pressure: 125 psi
• Weight: 1.42 lbs
