CASH ACME 22675-0045 1 EB45-DSB Direct SharkBite

Product Description

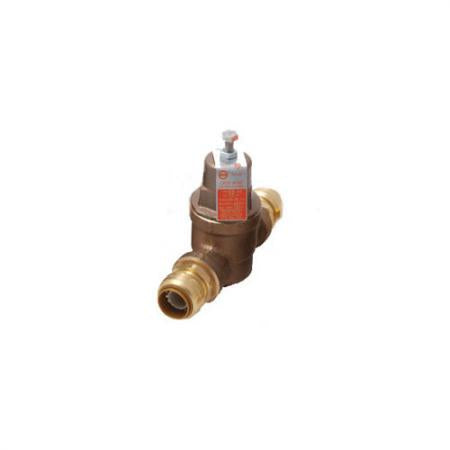

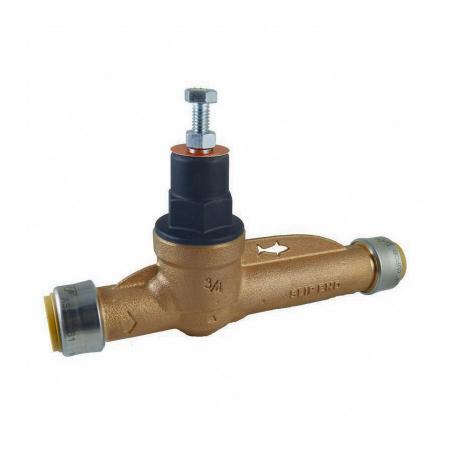

The CASH ACME 22675-0045 is a pressure regulating valve designed for water applications. It features a push-fit connection, allowing for easy installation on existing copper, CTS, or CPVC pipes. This valve is a part of the SharkBite EB45 series and operates effectively within a pressure range of ten to seventy PSI.

• Modular cartridge design for quick service and repair.
• Lead-free construction for health safety.
• Temperature rated up to one hundred eighty degrees Fahrenheit.

Product Highlights

This valve provides a reliable solution for managing water pressure in both commercial and domestic settings.

Product Information

Standard Information

• Manufacturer: CASH ACME
• Material: Bronze body, Brass trim

Technical Specifications

• Nominal Size: 1 in
• Pressure Rating: 45 psi
• Media: Water

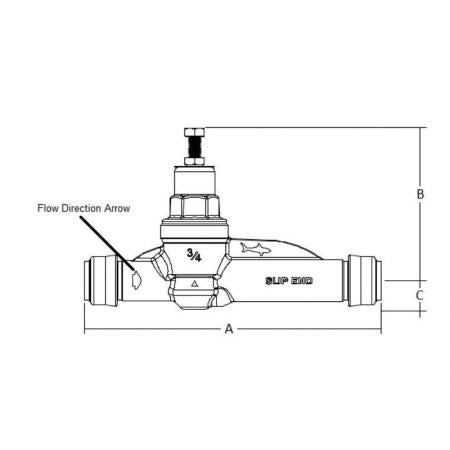

• Inlet to Outlet Length: 6.12 in
• Top to Inlet Center: 4.35 in
• End Style: Push-Fit
• Domestic/Import: Domestic
• Softgoods Material: EPDM O-Ring
• Series: EB45
• Temperature Rating: 180 deg F
