Cash Acme 22675-0045 1 EB45-DSB Direct SB

Product Description

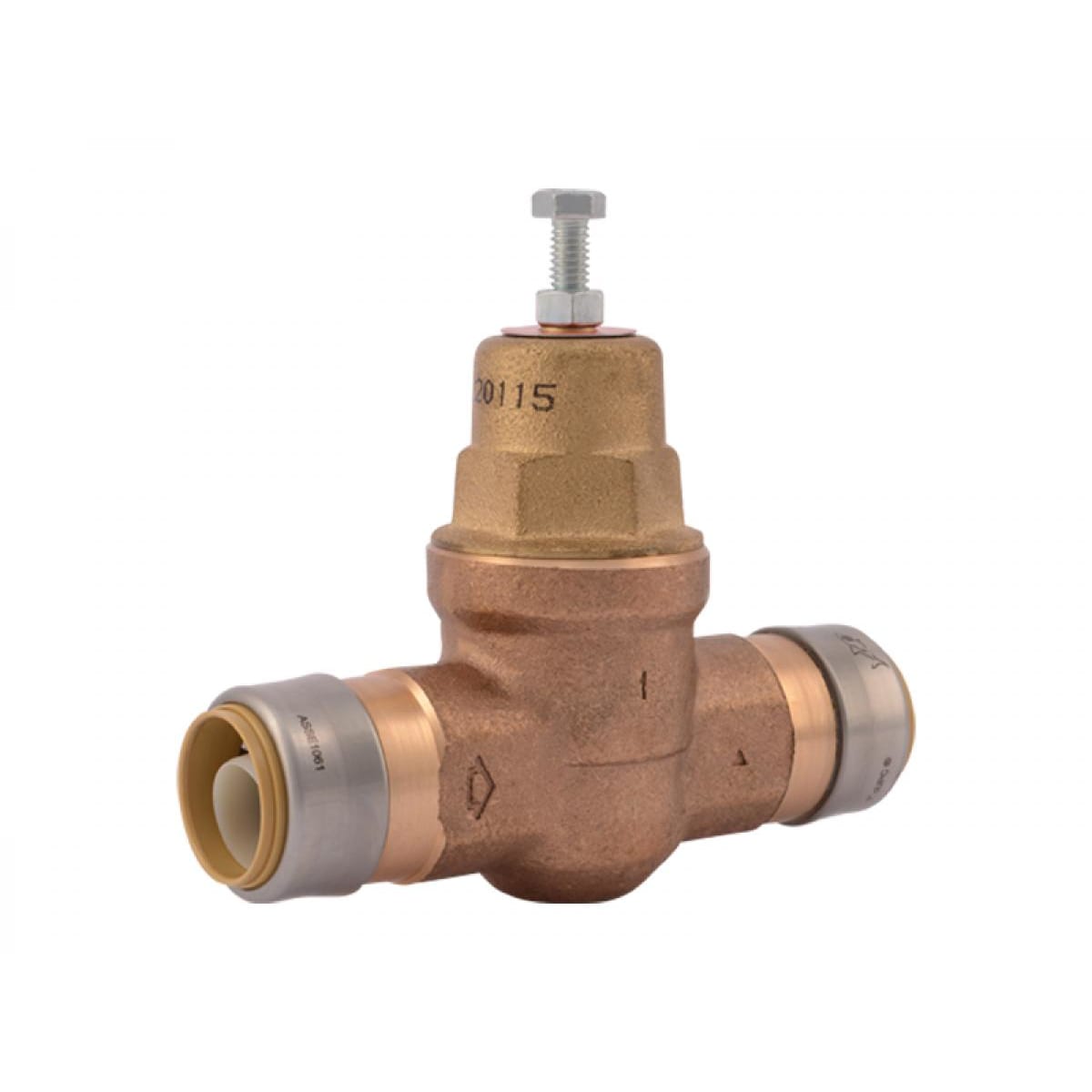

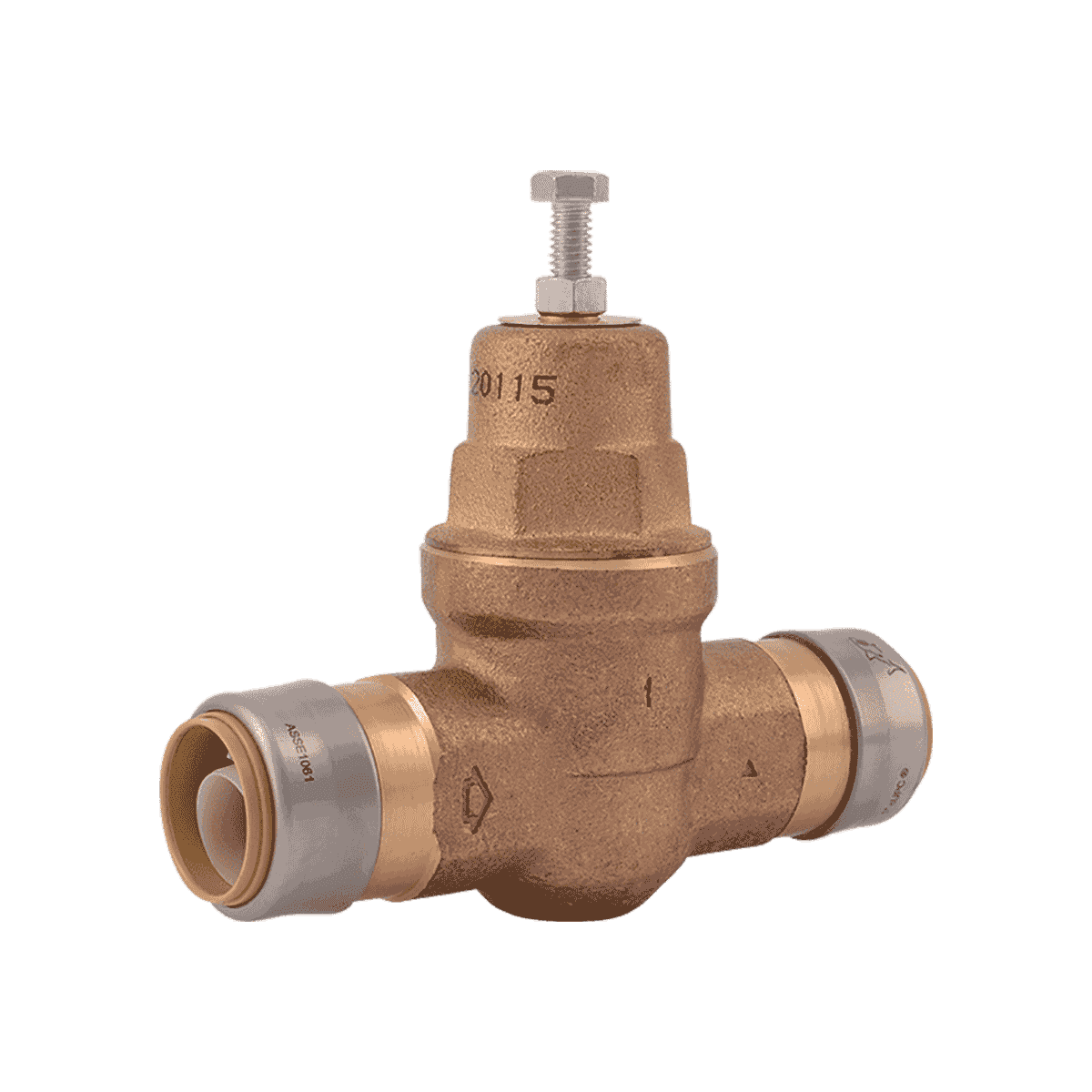

The Cash Acme 22675-0045, also known as the SharkBite pressure-regulating valve, is a crucial component for residential plumbing systems. This valve effectively reduces incoming water pressure, ensuring safety for plumbing fixtures and appliances. It protects against potential damage caused by high water pressure surges from the main line. This valve is designed to accommodate various piping materials, including copper, PEX, CPVC, and PE-RT.

• High durability with solid lead-free bronze construction.
• Compatible with multiple piping types for versatile installations.
• Factory set to maintain a safe flow at 45 PSI, with adjustable settings from 10 to 70 PSI.

Product Highlights

This pressure regulator offers a half-cartridge design that enhances performance and serviceability. The integrated internal by-pass mechanism allows for efficient water flow management.

Product Information

Standard Information

• Brand: Cash Acme
• Part Number: CASH-22675-0045

Technical Specifications

• UPC: 697285226753
• Maximum Inlet Pressure: 200 PSI
• Temperature Rating: Suitable for hot water up to 180 degrees F
• Service Type: Hot or cold water
• Installation Type: After main line for optimal protection
• Adjustment Range: 10 to 70 PSI
