CASH-ACME 22398-0000LF Vr-801 Drill Vent 3/4-Inch Vacuum Relief Valve with Dust Cover

Product Description

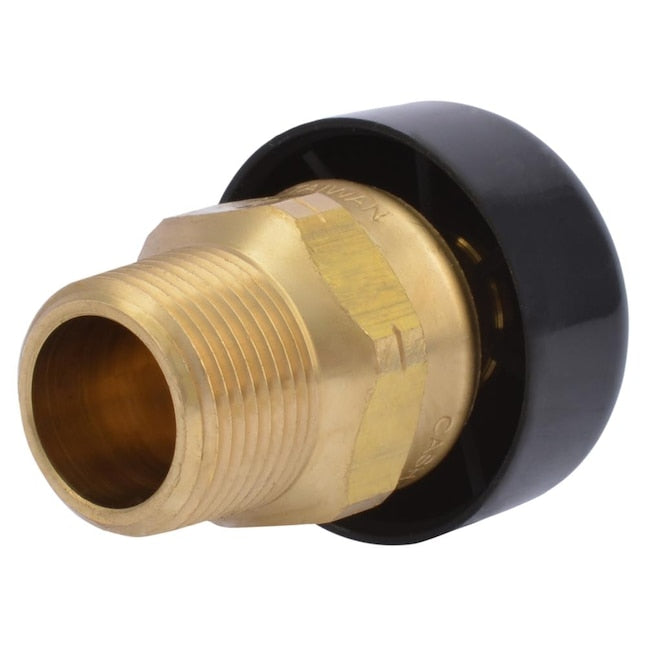

The Cash Acme VR-801 22398-0000LF is a three-quarter-inch vacuum relief valve with a dust cover. It protects hot water supply systems and pressure vessels from negative pressure conditions. This valve is suited for various domestic and commercial applications. It installs on the cold-water supply line to close tightly under pressure and opens at a vacuum of one inch of mercury.

• Prevents negative pressure in hot water systems
• Suitable for domestic and commercial use
• Protects against burned out heaters and collapsed storage tanks

Product Highlights

This device ensures the proper functioning of hot water supply systems by preventing internal vacuum issues.

Product Information

Standard Information

• Brand: Cash Acme
• Item Dimensions: 1.25 x 1.25 x 2.25 inches

Technical Specifications

• Exterior Finish: Copper, Silicone
• Inlet Connection Type: National Pipe Tapered
• Number of Ports: 2
• UPC: 697285007802
• Pressure Rating: 200 psi
• Temperature Rating: 210 degrees F
• Media: Water
• Body Material: Brass
• Size: 3/4 inch
• Warranty: 1 Year
