Cash Acme 22348-0150 0.75 inch NCLX-A Temperature and Pressure Relief Valve

Product Description

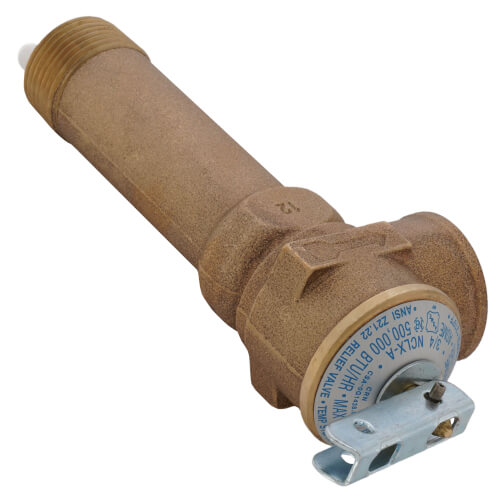

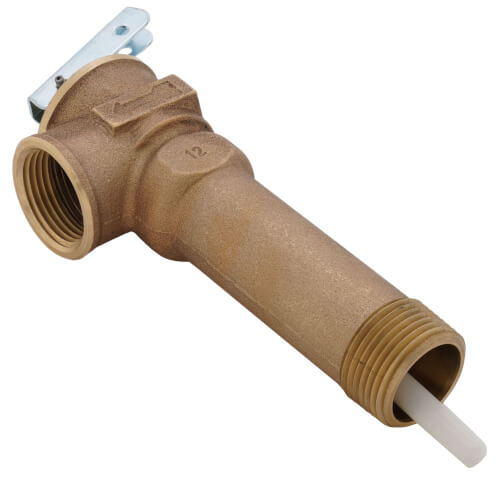

The Cash-Acme 22348-0150 NCLX-A Relief Valve ensures the safety of domestic water heaters and storage tanks by managing both temperature and pressure conditions. Designed with reliability and efficiency in mind, this valve is integral in preventing the dangerous buildup of excessive temperature and pressure.

• Constructed from cast bronze with robust internal components including brass, stainless steel, and a silicone seat disc.
• Features a convenient testing lever and is designed to reseat automatically after activation.
• Threaded male inlet and female outlet for secure and versatile plumbing connections.

Product Highlights

This relief valve operates seamlessly with an automatic reset feature. It supports pressures up to 150 psi and temperatures up to 210 degrees Fahrenheit, ensuring wide compatibility and reliability. The NCLX model is specially coated to resist mineral deposits, ensuring longevity and reduced maintenance.

Product Information

Specifications

• Inlet Type: MNPT
• Outlet Type: FNPT
• Maximum Temperature: 210°F
• Connection Type: Threaded
• Thermostat Length: 2-1/8 inches
• Pressure Set Point: 150 psi
• CSA Rating (BTU/HR): 105,000
• ASME Rating (BTU/HR): 500,000
